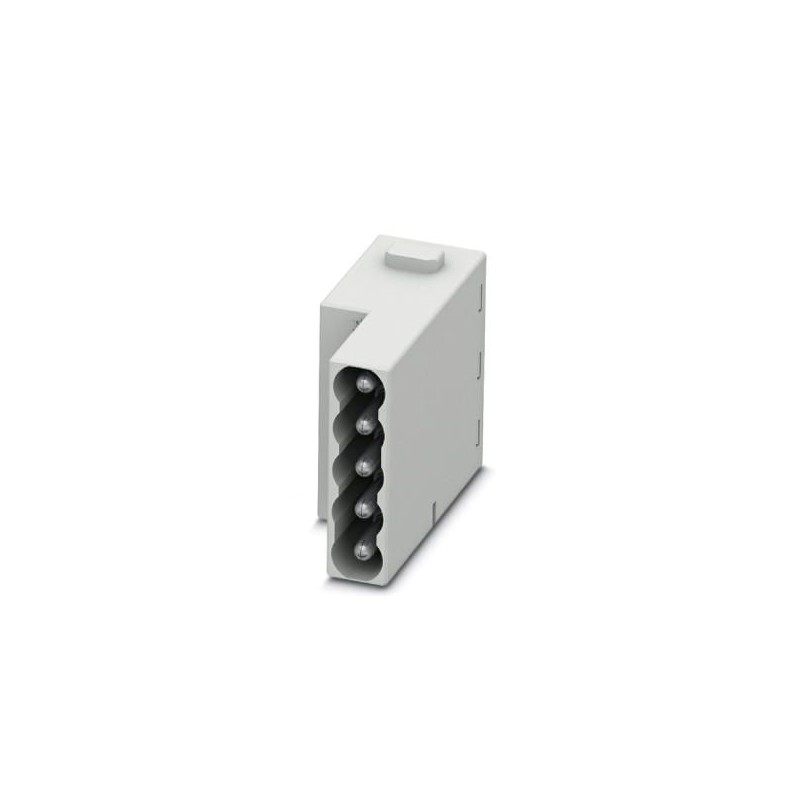

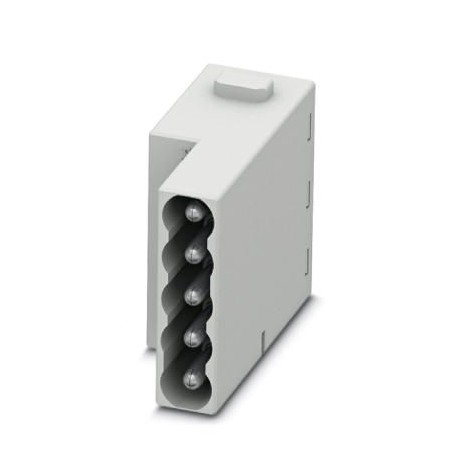

HC-M-05L-TPT-M 1423961 PHOENIX CONTACT Contact insert module
HC-M-05L-TPT-M
1423961
PHOENIX_CONTACT
Contact insert module
Contact insert module, number of poles: 5, power contacts: 5, control contacts: 0, number of connections per pole: 2, Male, Push-in connection, 230 V/400 V, 16 A, 0.25 mm² ... 1.5 mm², Application: Power
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1423961 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 567 (C-2-2017) |
| GTIN | 4055626365800 |
| Weight per Piece (excluding packing) | 18.000 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
Electrical characteristics
| Rated voltage (III/3) | 230 V (Conductor-PE) |
|---|---|
| 400 V (Conductor-Conductor) | |
| Rated current | 10 A |
| Rated surge voltage | 4 kV |
| Connection profile | 5 |
Mechanical characteristics
| Conductor cross section | 0.25 mm² ... 1.5 mm² (with ferrule) |
|---|---|
| Connection cross section AWG | 24 ... 16 (with ferrule) |
| Stripping length of the individual wire | 8 mm ±1 mm |
| Contact diameter | 2.5 mm |
| Insertion/withdrawal cycles | ≥ 500 |
General
| Note | For HEAVYCON housing type B6 to B48, HC-M-B...MF-... hinged module carrier frame required. |
|---|---|
| For solid conductors or stranded conductors with ferrules | |
| Series | HC-M-05-T |
| Color | light gray |
| Number of module slots | 1 |
| Connection method | Push-in connection |
| Number of connections per position | 2 |
| Contact type | rolled |
| Flammability rating according to UL 94 | V0 |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Assembly instructions | To ensure correct use, installation in housing with IP54 protection or better is required |
Standards and Regulations
| Constructional and testing regulations | DIN EN 61984 |
|---|---|
| DIN EN 60664 | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Number of power contacts (EF012216) | 5 |
| Number of control contacts (EF012217) | 0 |
| Contact insert without contacts (EF007324) | No |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 5 |
| Diameter plug-in contact (EF007320) | 2.5 mm |
| Rated current In (EF008250) | 16 A |
| Ambient temperature (EF002386) | 125 °C |
| Operating temperature (EF002393) | -40 °C |
| Rated voltage (EF000228) | 230 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 3 |
| Type of electric connection (EF003961) | Other |
| With wire protection (EF000550) | No |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.25 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.25 mm² |
| Material of contact surface (EF004020) | Silver |
| Material of contact insert (EF008521) | Other |
| Material contact (EF007544) | Copper |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | No |
| Min. number of insertion cycles (EF012212) | 500 |
| Width (EF000008) | 14.6 mm |
| Height (EF000040) | 34.1 mm |
| Depth (EF000049) | 36 mm |
