HC-STA-D50-BCSFD-PL-BK 1424417 PHOENIX CONTACT Protective covers
HC-STA-D50-BCSFD-PL-BK
1424417
PHOENIX_CONTACT
Protective covers

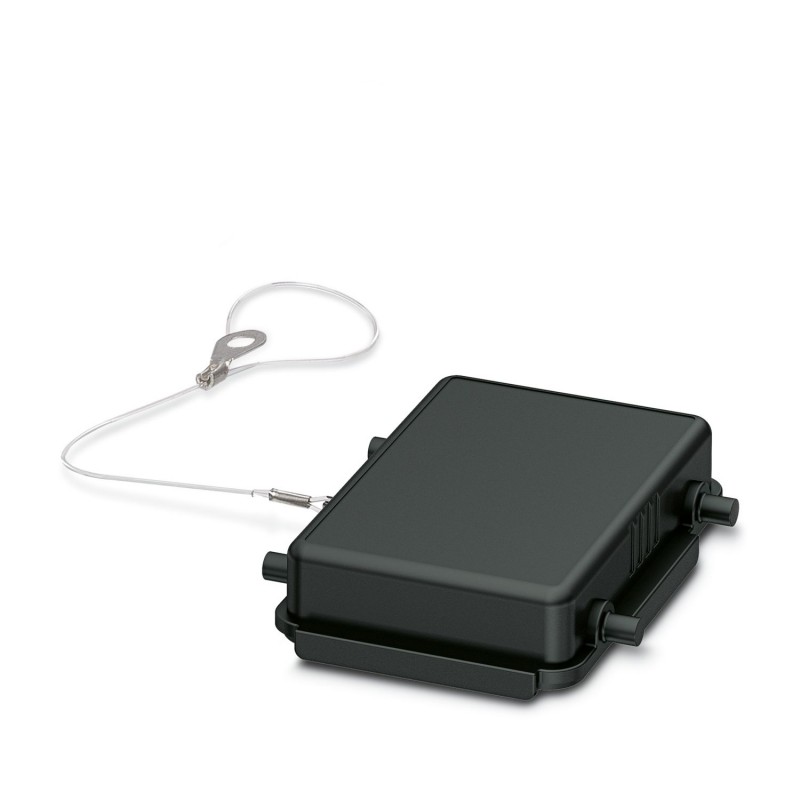

D50 protection cap, for cross flange, protective cap material: PA, height: 19 mm, gasket: no, Standard
Protective cover D50, for cross locking, cover material: PA, height: 19 mm, seal: no, Standard
Connectors > Cap for industrial connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1424417 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 526 (C-2-2017) |
| GTIN | 4055626371573 |
| Weight per Piece (excluding packing) | 40.700 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
Ambient conditions
| Degree of protection of housing (IP) | IP66 |
|---|---|
| Ambient temperature (operation) | -20 °C ... 100 °C |
General
| Note | Protective cover for supporting base element with double locking latch |
|---|---|
| Size | D50 |
| Type | For supporting base element with double locking latch |
| Housing type | Protective cover |
| Color | black |
| Locking type | for double locking latch |
| Material | PA |
| Material, protective cover | PA |
| Flammability rating according to UL 94 | V0 |
| Connection | Plastic protective cover for short-term protection |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Type of locking (EF000208) | Other |
| With sealing (EF005610) | No |
| With captivity element (EF012222) | Yes |
| Colour (EF000007) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Ambient temperature (EF002386) | 100 °C |
| Degree of protection (IP), mounted (EF007466) | IP66 |
