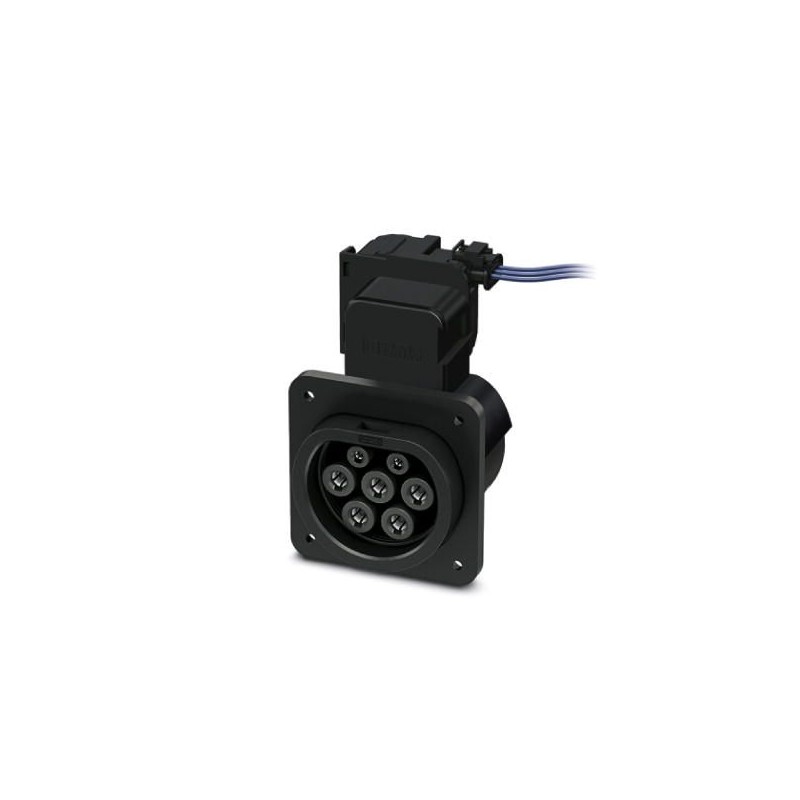

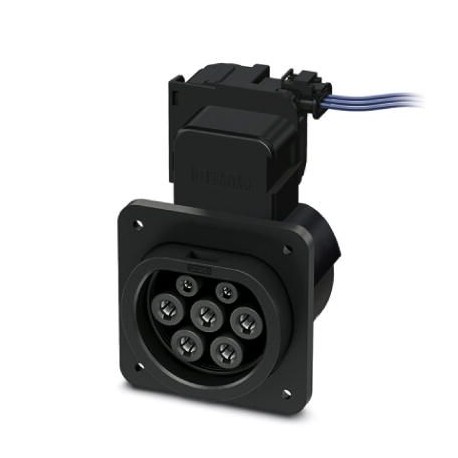

EV-GBM3SL12-3AC32A-0,7M6,0E10T 1050941 PHOENIX CONTACT Socket Outlet
EV-GBM3SL12-3AC32A-0,7M6,0E10T
1050941
PHOENIX_CONTACT
Socket Outlet
CHARX connect, Infrastructure charging box, screw connection with protective cover at the rear, with temperature sensors, For charging electric vehicles with alternating current (AC), Compatible with charging connectors for infrastructures, GB/T, GB/T 20234.2-2015, 32 A / 440 V (AC), Single drivers, length: 0.7 m, Locking actuator: 12 V, 3-pole, Rear wall mount, Generation 1, "PHOENIX CONTACT" logo
Industrial socket/plug applications > Charging connector E-Mobility
E-Mobility
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1050941 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626669755 |
| Weight per Piece (excluding packing) | 650.000 g |
| Custom tariff number | 85444290 |
| Country of origin | CN (China) |
Note
| Trade restriction | The products are offered exclusively for export outside the EU and the European Economic Area. |
|---|
Product definition
| Product type | Infrastructure Socket Outlet for charging electric vehicles with alternating current (AC), compatible with Infrastructure Plugs |
|---|---|
| Type | Rear protective cover screw connection |
| Standards/regulations | GB/T 20234.2-2015 |
| Charging standard | GB/T |
| Charging mode | Mode 3, Case B |
| Note | With temperature measurement via Pt 1000 sensors |
| Note on the connection method | Crimp connection, cannot be disconnected |
Dimensions
| Height | 96 mm |
|---|---|
| Width | 75 mm |
| Depth | 76.2 mm |
| Bore dimensions | 60 mm x 60 mm |
| Conductor length | 0.7 m (AC cables) |
| Cable structure | 5x 6.0 mm² + 2x 0.5 mm² |
| Type of conductor | Single wires |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Max. altitude | 5000 m (above sea level) |
| Degree of protection | IP55 (plugged in) |
| IP55 (with protective cover, see accessories) |
Electrical properties
| Maximum charging power | 14 kW |
|---|---|
| Type of charging current | AC 3-phase |
| Number of phases | 3 |
| Number of power contacts | 5 (L1, L2, L3, N, PE) |
| Rated current of power contacts | 32 A |
| Rated voltage for power contacts | 440 V AC |
| Number of signal contacts | 2 (CP, CC) |
| Rated current for signal contacts | 2 A |
| Rated voltage for signal contacts | 30 V AC |
| Type of signal transmission | Pulse width modulation |
| Note on the connection method | Crimp connection, cannot be disconnected |
| Temperature measurement | 4x Pt 1000 (DIN EN 60751) |
Mechanical properties
| Insertion/withdrawal cycles | > 10000 |
|---|---|
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
Mounting
| Possible mounting positions | Rear panel mounting |
|---|---|
| Restrictions to mounting position | Only 0 to 90 degree frontal inclination possible, see figure |
| Mounting position of the locking actuator | Top center |
| Required installation depth | < 5 mm (Rear panel mounting) |
| Max. wall thickness | > 57 mm (Rear panel mounting) |
| Mounting hole diameter | 7.00 mm (ø) |
Locking
| Locking type | Locking in the inserted state with a locking mechanism |
|---|---|
| Locking voltage | 12 V |
| Locking detection | available |
| Mechanical emergency release | available |
Locking actuator
| Typical power supply at the motor | 12 V |
|---|---|
| Possible power supply range at the motor | 9 V ... 15.5 V |
| Typical motor current for locking | 0.2 A |
| Max. reverse current of the motor | 3.2 A |
| Max. dwell time with reverse current | 1000 ms |
| Recommended adaptation time | 500 ms |
| Service life | > 10000 load cycles |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Length of cable | 0.5 m |
Temperature sensors
| Type of sensor | Pt 1000 |
|---|---|
| Standards/regulations | DIN EN 60751 |
| Recommended measured current | 1 mA (1 V at 0°C) |
| Tolerance at the sensor with the recommended measured current | ±1K |
| Temperature range | -50 °C ... 130 °C |
| Temperature coefficient (TCR) | 3850 ppm/K |
| Long-term stability (max. R0-Drift) | 0.06 % (After 1000 hours at 130°C) |
| Shutdown temperature | 90 °C equivalent to a Pt 1000 value of 1346.5 Ω |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 10; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
