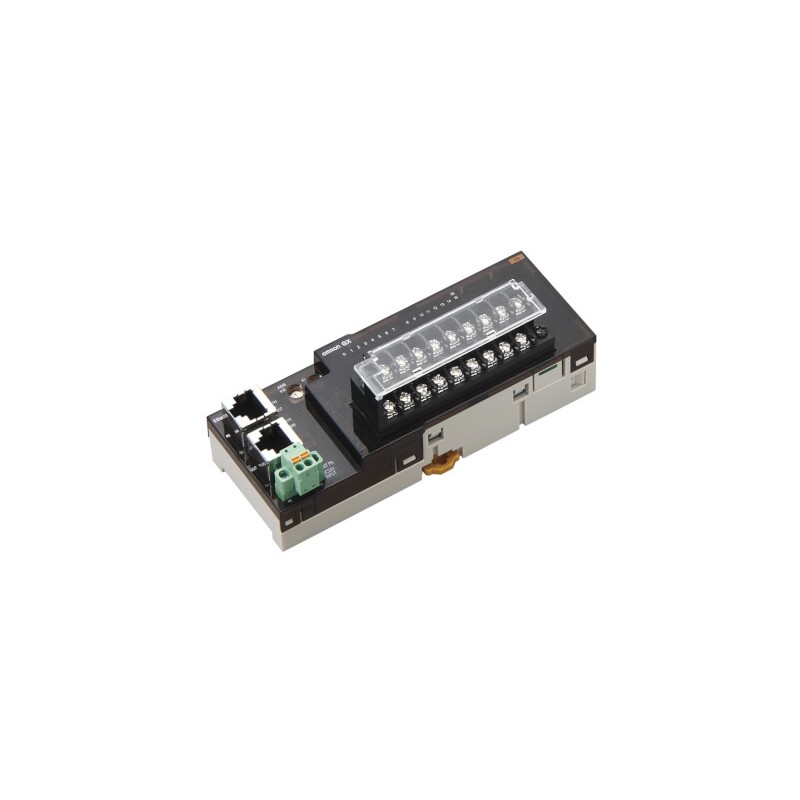

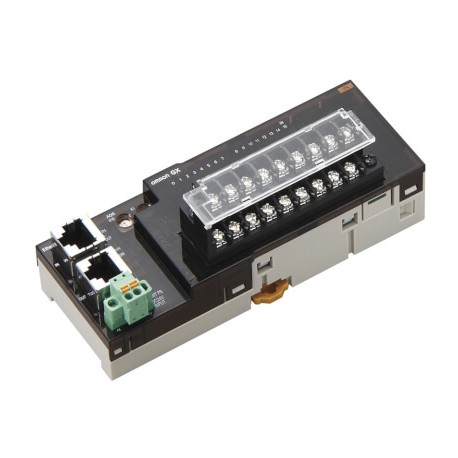

GX-JC06-H GX 5032D GXJC06H OMRON Module connections EtherCAT 6 ports, power supply of 24 Vdc
GX-JC06-H
GX 5032D
GXJC06H
OMRON
Module connections EtherCAT 6 ports, power supply of 24 Vdc
6-port EtherCAT Junction module, 24 VDC power supply, with node switches
Data and telecommunication > Network switch
Remote I/O > Remote I/O Accessories
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Related products
▲Best sellers
▲More info
▲When speed counts: EtherCAT I/O
EtherCAT is an extremely fast industrial automation network, which uses standard Ethernet cabling. It makes very efficient use of the standard Ethernet transmission frame, with each node accessing the entire frame on the fly. This reduces the delay in each slave to microsecond level. Its deterministic nature makes EtherCAT extremely suitable for motion control. Omron provides PLC-based as well as stand-alone motion control solutions based on EtherCAT. The GX-series I/O units provide the basic in- and outputs for such systems, including high-speed encoder inputs which can feed position information into the controller.
- Compact size IP20 housing
- Expandable digital I/Os
- Detachable I/O terminal blocks
- Selectable high-speed input response time
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | DIN rail (top hat rail) |
| Degree of protection (IP) (EF005474) | IP20 |
| Ethernet (EF003535) | Yes |
| Manageable (EF004912) | No |
| Number of ports 100/1000 Mbps Mini GBIC (EF008849) | 0 |
| Number of ports 1000 Mbps GBIC (EF004318) | 0 |
| Number of ports 10/100/1000 Mbps RJ45 (EF004316) | 0 |
| Width (EF000008) | 48 mm |
| Number of module slots (EF003597) | 0 |
| Number of ports 1000 Mbps RJ45 (EF000902) | 0 |
| Number of ports 100 Mbps SC (EF000900) | 0 |
| Number of other ports (EF007643) | 0 |
| Depth (EF000049) | 78 mm |
| Number of ports 1000 Mbps SC (LX) (EF003552) | 0 |
| Number of ports 10 Gbps Mini GBIC (EF008850) | 0 |
| Number of ports 1000 Mbps Mini GBIC (EF004321) | 0 |
| Number of ports 10/100 Mbps RJ45 (EF003549) | 6 |
| Number of ports 100 Mbps ST (EF000923) | 0 |
| Number of ports 1000 Mbps SC (SX) (EF003551) | 0 |
| Height (EF000040) | 90 mm |
| Number of ports 10/100 Mbps M12 (EF004315) | 0 |
| Number of combination-ports RJ45/Mini GBIC (EF004849) | 0 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| GX-JC06-H GXJC06H GX 5032D r158_gx_junction_box_leaflet_en.pdf | 1 Mbytes |
|
