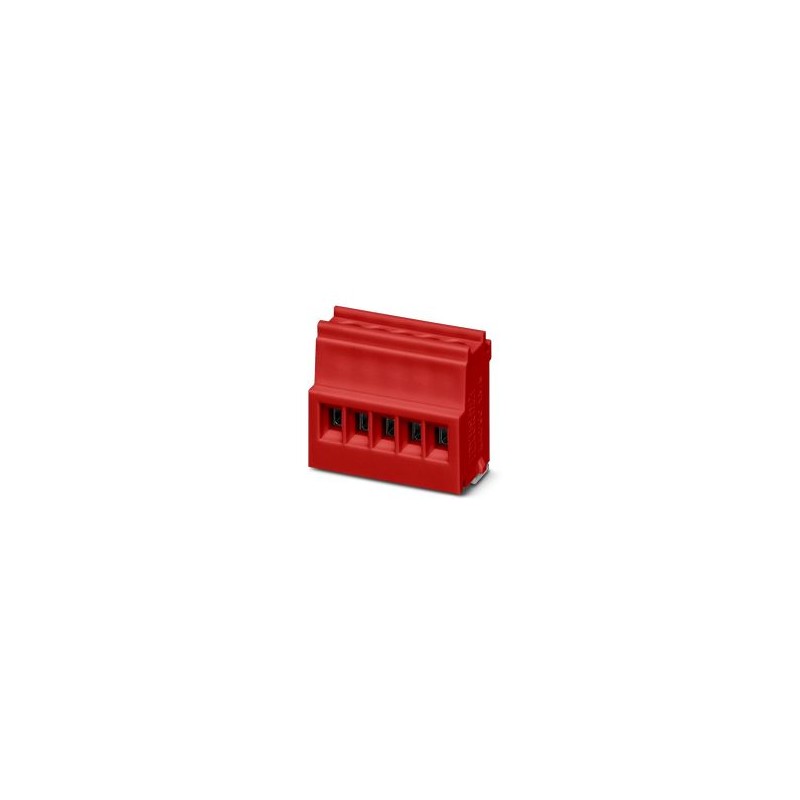

MKDSO 1,5/ 5-L-3,5 RD 1148835 PHOENIX CONTACT PCB terminal, rated current: 8 A, rated voltage (III/2): 160 V..
MKDSO 1,5/ 5-L-3,5 RD
1148835
PHOENIX_CONTACT
500
PCB terminal, rated current: 8 A, rated voltage (III/2): 160 V, rated cross-section: 1.5 mm², number of potentials: 5, number of rows: 1, number of poles per row: 5, article family: MKDSO 1.5/.. -L, pitch: 3.5mm, connection type: Screw connection with pull capsule, mounting: Wave soldering, driver/PCB connection direction: 0°, color: red, Pin arrangement: Linear pin arrangement, Pin length [P]: 2.3mm, number of solder pins per potential: 1, packing type: boxed packaging. Item with left-hand side pin outlet
PCB terminal block, nominal current: 8 A, reference voltage (III/2): 160 V, nominal cross-section: 1.5 mm2, number of potentials: 5, number of rows: 1, number of poles per row: 5, item range: MKDSO 1.5/.. -L, pitch: 3.5 mm, connection type: Screwed connection with ring, mounting: Wave soldering, conductor/PCB plugging direction: 0 °, colour: red, Pin layout: Linear, Spindle length [P]: 2.3 mm, number of pins per potential: 1, packaging type: packed in a carton. Item with left side spindle output
Connectors > Printed circuit board terminal
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Type | Terminal block for C.I. perpendicular to the C.I. |
| Product Type | Printed circuit board terminal |
| Product range | MKDSO 1.5/.. -T |
| Number of poles | 5 |
| Steps | 3.5 mm |
| Number of connections | 5 |
| Number of rows | 1 |
| Number of potentials | 5 |
| Pinout plot | Linear pinout |
| Number of pins per potential | 1 |
| Rated Current IN | 8 A |
| Rated voltage UN | 160 V |
| Degree of pollution | 3 |
| Reference voltage (III/3) | 160 V |
| Rated Shock Resistance Voltage (III/3) | 2.5 kV |
| Rated Voltage (III/2) | 160 V |
| Rated Shock Withstand Voltage (III/2) | 2.5 kV |
| Reference voltage (II/2) | 320 V |
| Rated Shock Withstand Voltage (II/2) | 2.5 kV |
| Connection technology | |
| Nominal cross-section | 1.5 mm² |
| Conductor connection | |
| Connection type | Screwed connection with ring |
| Rigid conductor cross-section | 0.14 mm² ... 1.5 mm² |
| Soft conductor section | 0.14 mm² ... 1.5 mm² |
| Conductive section. AWG | 28 ... 16 |
| Soft conductor section with end cap, without plastic bushing | 0.25 mm² ... 1.5 mm² |
| Soft conductor section with plastic end cap and socket | 0.25 mm² ... 0.5 mm² |
| 2 rigid conductors of the same cross-section | 0.08 mm² ... 0.5 mm² |
| 2 flexible conductors of the same cross-section | 0.08 mm² ... 0.75 mm² |
| 2 conductors of the same cross-section, flexible with plastic sleeveless end cap | 0.25 mm² ... 0.34 mm² |
| 2 flexible conductors of the same cross-section with TWIN bit and plastic socket | 0.5 mm² ... 0.5 mm² |
| Template a x b / diameter | 2.4 mm x 1.5 mm / - |
| Stripping length | 7 mm |
| Tightening torque | 0.22 Nm ... 0.25 Nm |
| Mounting Type | Wave Welding |
| Pinout plot | Linear pinout |
| Connection type | Screwed connection with ring |
| Material indication - contact | |
| Note | WEEE/RoHS compliant, trichite-free according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact material | Cu Alloy |
| Surface quality | Galvanic tinning |
| Metal surface connection point (top layer) | Pewter (Sn) |
| Material indication - housing | |
| Colors (Cases) | Red (3001) |
| Insulating material | PA |
| Insulation Group | I |
| CRI according to IEC 60112 | 600 |
| Flammability class according to UL 94 | V0 |
| GWFI glow wire flammability class according to EN 60695-2-12 | 850 |
| GWIT glow wire ignition temperature according to EN 60695-2-13 | 775 |
| Ball pressure test temperature according to EN 60695-10-2 | 125 °C |
| Dimensioned drawing |  |
| Steps | 3.5 mm |
| Width [w] | 20.95 mm |
| Height [h] | 21.25 mm |
| Length [l] | 15.3 mm |
| Welding pin length [P] | 2.3 mm |
| Dimensions of the pins | 0.6 x 0.8 mm |
| PCB design | |
| Drilling Diameter | 1.2 mm |
| Investigation of damage and loosening of conductors | |
| Control Specification | DIN EN 60998-2-1 (VDE 0613-2-1):2005-03 |
| Result | Successful test |
| Traction Control | |
| Control Specification | DIN EN 60998-2-1 (VDE 0613-2-1):2005-03 |
| Conductor cross-section/conductor type/tractive force, nominal/actual | 0.14 mm² / rigid / > 10 N |
| 0.14 mm² / soft / > 10 N | |
| 1.5 mm² / rigid / > 40 N | |
| 1.5 mm² / soft / > 40 N | |
| Torque Control | |
| Control Specification | DIN EN 60998-2-1 (VDE 0613-2-1):1994-04 |
| Warm-up test | |
| Control Specification | DIN EN 60998-1 (VDE 0613-1):2005-03 |
| Requirement for heating control | Temperature Rise ≤ 45 K |
| Insulation resistance | |
| Control Specification | DIN EN 60998-1 (VDE 0613-1):2005-03 |
| Insulation resistance of neighboring poles | > 50 GΩ |
| Air Distances and Trailing Lines | |
| Control Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulation Group | I |
| Resistance to leakage currents (DIN EN 60112 (VDE 0303-11)) | SIC 600 |
| Rated Insulation Voltage (III/3) | 160 V |
| Rated Shock Resistance Voltage (III/3) | 2.5 kV |
| minimum value of distance in air - non-homogeneous field (III/3) | 1.5 mm |
| minimum creepage value (III/3) | 2 mm |
| Rated Insulation Voltage (III/2) | 160 V |
| Rated Shock Voltage (III/2) | 2.5 kV |
| minimum value of distance in air - non-homogeneous field (III/2) | 1.5 mm |
| minimum creepage value (III/2) | 0.8 mm |
| Rated Insulation Voltage (II/2) | 320 V |
| Rated Shock Withstand Voltage (II/2) | 2.5 kV |
| minimum value of distance in air - non-homogeneous field (II/2) | 1.5 mm |
| minimum creepage value (II/2) | 1.6 mm |
| Vibration Resistance Test | |
| Control Specification | DIN EN 60068-2-6:1996-05 |
| Frequency | 10 - 150 - 10 Hz |
| Scan Speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Scan Speed | 5g (60.1 Hz ... 150 Hz) |
| Inspection time per axis | 2.5 hrs |
| Glow Wire Test | |
| Control Specification | DIN EN 60998-1 (VDE 0613-1):2005-03 |
| Temperature | 850 °C |
| Time of action | 5 s |
| Environmental conditions | |
| Ambient Temperature (Operating) | -40 °C ... 105 °C (Depending on current/derating capacitance curve) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Relative humidity of the air (storage/transport) | 30 % ... 70 % |
| Ambient temperature (mounting) | -5 °C ... 100 °C |
| Type of packaging | packed in a carton |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 21.25 mm |
| Number of electrical connections (EF008252) | 5 |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 3.5 mm |
| Rated current In (EF008250) | 8 A |
| Rated voltage (EF000228) | 160 V |
| Rated surge voltage (EF002993) | 2.5 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Screw connection |
| Connectable conductor cross section solid-core (EF007337) | 0.14 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.14 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.08 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.2 mm |
| Length pin (EF006825) | 2.3 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Red |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of PCB fastening (EF008226) | Connecting contact |
| Type of fastening (EF002442) | Solder |
| Type of banding (EF007011) | Carton (for SMD) |
