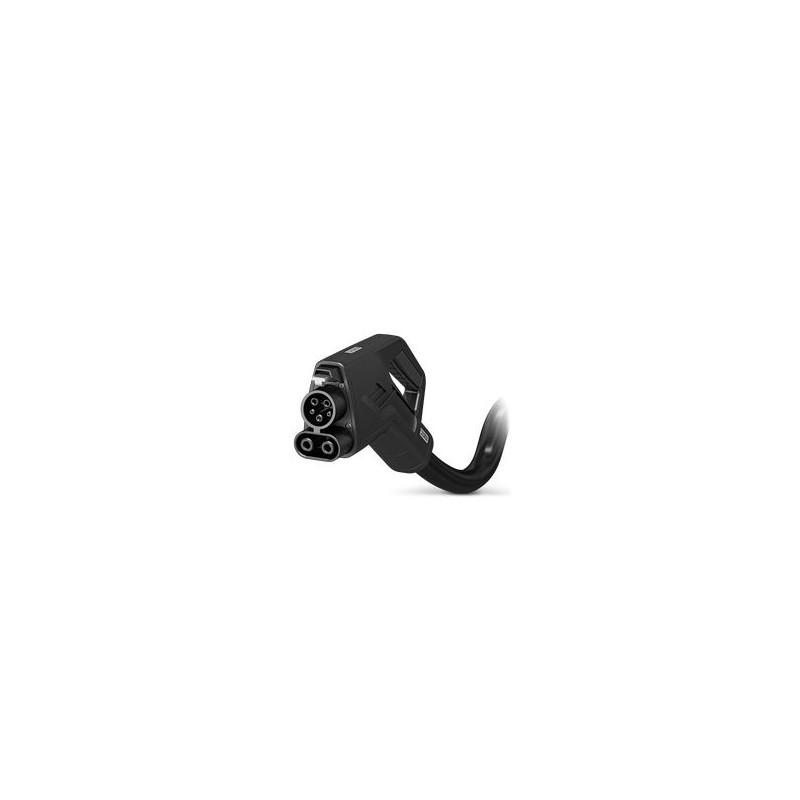

EV-T1G2CC-DC200A-8,0M1ASBK11 1483491 PHOENIX CONTACT CHARX Connect padrão, CCS tipo 1, cabo de carregamento ..
EV-T1G2CC-DC200A-8,0M1ASBK11
1483491
PHOENIX_CONTACT
CHARX Connect padrão, CCS tipo 1, cabo de carregamento DC, até 500 A no modo Boost, 200 A permanente, 1000 V DC, com conector de carregamento veicular e cabo aberto, cabo: 8 m, preto, reto, com suporte para conector de carregamento, com sensores de temperatura analógicos, logo PHOENIX CONTACT, SAE J1772, IEC 62196-3, para carregamento de corrente contínua (DC) de veículos elétricos (VEs)
Cabo de carregamento
CHARX connect standard, DC charging cable, with vehicle charging connector and open cable end, for charging electric vehicles (EV) with direct current (DC), with charging connector holder, with analog temperature sensors, CCS type 1, SAE J1772, IEC 62196-3, 200 A / 1000 V (DC), PHOENIX CONTACT logo, cable: 8 m, black, straight
Dispositivos de encaixe industriais e especiais > Cabo de carregamento E-Mobility
Mobilidade Eletrônica
Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Best sellers
▲Mais informação
▲| Product type | DC charging cable |
| Product family | CHARX connect standard |
| Application | for charging electric vehicles (EV) with direct current (DC) |
| for installation at charging stations for electromobility (EVSE) | |
| Type | DC charging cable |
| with vehicle charging connector and open cable end | |
| Design | with charging connector holder |
| with analog temperature sensors | |
| Technology | Combined Charging System |
| Affixed logo | PHOENIX CONTACT logo |
| Label | 8.9 mm x 28.9 mm (customer logo on request) |
| Charging standard | CCS type 1 |
| Charging mode | Mode 4 |
| DC level 2 |
| Type of signal transmission | Pulse width modulation with modulated Powerline communication in accordance with ISO/IEC 15118 / DIN SPEC 70121 |
| Note on the connection method | Crimp connection, cannot be disconnected |
| Coding | 480 Ω (Lever actuated) |
| 150 Ω (Lever not actuated) | |
| Temperature monitoring | 2x Pt 1000 |
| Type of charging current | DC |
| Charging power | 200 kW |
| Charging current | 200 A |
| Type of charging current | DC Boost Mode |
| Charging power | up to 500 kW (Boost Mode, depending on the ambient conditions. For detailed information, see the packing slip in the download area for this item.) |
| Charging current | up to 500 A (Boost Mode, depending on the ambient conditions. For detailed information, see the packing slip in the download area for this item.) |
| Power contact | |
| Number | 3 (PE, DC+, DC-) |
| Rated voltage | 1000 V DC |
| Rated current | 200 A (up to 40 °C) |
| Signal contact | |
| Number | 2 (CP, CS) |
| Rated voltage | 30 V AC |
| Rated current | 2 A |
| Temperature sensors (Pt 1000) | |
| Sensor type | Pt 1000 |
| Standards/regulations | DIN EN 60751 |
| Attachment point | Sensor for the DC contacts |
| Switch-off temperature | 90 °C ±1 K (equivalent to a Pt 1000 value of 1346.5 Ω) |
| Long-term stability | 0.06 % (after 1000 hours at 130 °C) |
| Recommended measured current | 1 mA (1 V at 0°C) |
| Coefficient | 3850 ppm/K |
| Ambient temperature | -50 °C ... 130 °C (Operation) |
| Cross section AWG | (converted acc. to IEC) |
| Vehicle charging connector | |
| Width | 69.6 mm |
| Height | 192.6 mm |
| Depth | 284.6 mm |
| Color (Housing) | black (9005) |
| Color (Handle area) | black (9005) |
| Color (Mating face) | black (9005) |
| Color (Protective cap) | black (9005) |
| Color (Cable) | black (9005) |
| Material (Vehicle charging connector) | Plastic |
| Material (Cable outer sheath) | TPE |
| Material (Contact surface) | Silver |
| Flammability rating according to UL 94 | V0 (Mating face) |
| Cable length | 8 m |
| Wiring standards/regulations | UL 62 |
| FFSO7.E343212 | |
| Cable weight | max. 1900 kg/km |
| Cable type | straight |
| Cable structure | 2 x 1 AWG + 1 x 3 AWG + 3 x 2 x 18 AWG |
| External cable diameter | 35.3 mm ±0.5 mm |
| Outer sheath, material | TPE |
| Stripping length of the sheath | 180 mm ±10 mm |
| Cable resistance | ≤ 0.00044 Ω/m (based on a power core, at an ambient temperature of 20°C) |
| Bending radius | min. 529.5 mm (15x diameter) |
| Mechanical data | |
| Insertion/withdrawal cycles | > 10000 |
| Insertion force | < 75 N |
| Withdrawal force | < 75 N |
| Ambient conditions | |
| Degree of protection (Vehicle charging connector) | IP54 / Type 3R (The degree of protection is only ensured in the ready and plugged-in state when both plug-in components are original products from Phoenix Contact or suitable standard-compliant products.) |
| Ambient temperature (operation) | -30 °C ... 40 °C |
| max. 55 °C (Current reduction required, observe the DC contact temperature limit value of 90°C) | |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | 5000 m (above sea level) |
| Standards | |
| Standards/regulations | SAE J1772 |
| IEC 62196-3 | |
| Característica | Valor |
|---|---|
| Tipo de corrente (EF000143) | DC |
| Número de condutores de comunicação (EF009317) | 2 |
| Tipo lateral do veículo (EF009318) | Tipo 1 CCS |
| Execução do lado da infraestrutura (EF009319) | Extremidade livre do condutor |
| Com caixa de controlo In-cable (ICCB) (EF009320) | Não |
| Modo de carregamento (EF009321) | Modo 4 |
| Corrente nominal (EF000001) | 200 A |
| Tensão nominal (EF000002) | 1000 V |
| Com sensor de temperatura (EF006034) | Sim |
| Comprimento do cabo (EF000536) | 8 m |
| Tipo de cabo (EF000081) | Direito |
| Material de contacto (EF004019) | Outro |
| Tratamento da superfície de contacto (EF002558) | Outro |
Datasheet - PDF
