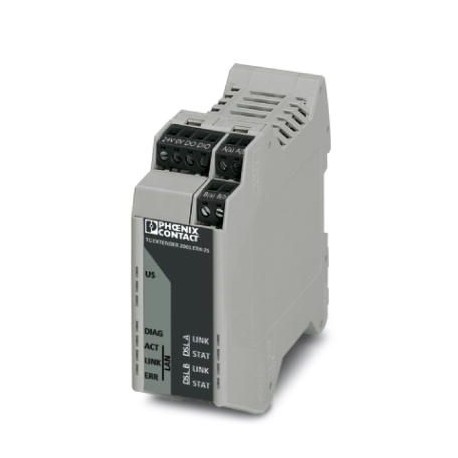

TC EXTENDER 2001 ETH-2S 2702409 PHOENIX CONTACT Modem
TC EXTENDER 2001 ETH-2S
2702409
PHOENIX_CONTACT
Modem
Second generation: unmanaged Ethernet extender, for point-to-point connections, line and ring structures, data rate rates up to 30 MBit/s, distances up to 20 km on company-owned copper cables, USB and LED diagnostics, 2 SHDSL ports, 1 LAN port
Data and telecommunication > Module for active network component/network unit
Safety
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2702409 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 361 (C-6-2017) |
| GTIN | 4055626162560 |
| Weight per Piece (excluding packing) | 258.700 g |
| Custom tariff number | 85176200 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 60 °C (Freestanding (40 mm spacing to the right and left), no supply of other modules via the device) |
|---|---|
| -20 °C ... 55 °C (Mounted in rows with zero spacing and low power dissipation of aligned modules) | |
| -20 °C ... 50 °C (Mounted in rows with zero spacing) | |
| -20 °C ... 45 °C (Mounted in rows with zero spacing and supply of other modules via the device) | |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Altitude | 5000 m (For restrictions see manufacturer's declaration) |
| Degree of protection | IP20 |
General
| Electrical isolation | VCC // Ethernet // DSL (A) // DSL (B) // FE |
|---|---|
| Test voltage data interface/power supply | 1.5 kVrms(50 Hz, 1 min.) |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Net weight | 258.7 g |
| Housing material | PA 6.6-FR |
| Color | gray |
| MTTF | 711 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day)) |
| 308 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25 % (5 days a week, 12 hours a day)) | |
| 125 Years (SN 29500 standard, temperature 40 °C, operating cycle 100 % (7 days a week, 24 hours a day)) | |
| Conformance | CE-compliant |
| ATEX | II 3 G Ex nA IIC T4 Gc X (Please follow the special installation instructions in the documentation!) |
| UL, USA/Canada | cULus listed UL 508 |
Power supply
| Nominal supply voltage | 24 V DC ±5 % (as an alternative or redundant, via backplane bus contact and system current supply) |
|---|---|
| 5 V DC (configuration only, via mini-USB type B) | |
| Supply voltage range | 18 V DC ... 30 V DC |
| Typical current consumption | < 180 mA (24 V DC) |
| Connection method | COMBICON plug-in screw terminal block |
Serial interface
| Interface 1 | Ethernet interface, 10/100Base-T(X) in acc. with IEEE 802.3u |
|---|---|
| Interface | Ethernet |
| No. of ports | 1 |
| Connection method | RJ45 socket, shielded |
| 1 port 10/100Base-T(X), auto negotiation | |
| Transmission length | < 100 m (shielded twisted pair) |
| Protocols supported | Protocol-transparent for TCP/IP, IPv4, and IPv6 |
| Serial transmission speed | 10/100 Mbps, auto negotiation |
| Interface 2 | SHDSL interface according to ITU-T G.991.2.bis |
| No. of ports | 2 (2-wire operation) |
| Connection method | 2 x 2-pos. COMBICON plug-in screw terminal blocks |
| Transmission length | < 20 km (Depending on data rate and cable cross section) |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 14 |
| Serial transmission speed | 4-wire operation: 64 kbps ... 30 Mbps |
| 2-wire operation: 32 kbps ... 15.3 Mbps | |
| Interface 3 | USB 2.0 |
| Connection method | Mini-USB type B, 5-pos. |
| Transmission length | < 5 m (only for configuration and diagnostics) |
Function
| Management | Plug and Play, diagnostics via PSI-CONF software or web-based management (only with managed Ethernet extenders) |
|---|---|
| Status and diagnostic indicators | LEDs: US (supply voltage), ACT/LINK (Ethernet data traffic), ERR (errors) 2x LINK / 2x STAT (DSL data traffic port A and port B), DIAG (diagnostic messages) |
Digital outputs
| Output name | Digital output |
|---|---|
| Number of outputs | 2 |
| Voltage output signal | depending on the operating voltage |
| Current output signal | ≤ 150 mA (Short-circuit-proof) |
| Connection method | 2 x 2-pos. COMBICON plug-in screw terminal blocks |
| Behavior of the outputs | Deactivated for device supply via DIN rail connector |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
|---|---|
| Type of test | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 |
| Test result | 5g, 10...150 Hz, 2.5 h, in XYZ direction |
| Type of test | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 |
| Test result | 15g |
| Standards/regulations | EN 61000-4-2 |
| Contact discharge | ± 6 kV |
| Indirect discharge | ± 6 kV |
| Standards/regulations | EN 61000-4-3 |
| Frequency range | 80 MHz ... 3 GHz |
| Standards/regulations | EN 61000-4-4 |
| Comments | Criterion B |
| Standards/regulations | EN 61000-4-5 |
| Signal | ± 1 kV (asymmetrical, shielded Ethernet cable) |
| Standards/regulations | EN 55011 |
| EN 61000-4-6 | |
| Frequency range | 0.15 MHz ... 80 MHz |
| Standards/regulations | EN 50121-4 |
| Conformance | CE-compliant |
| ATEX | II 3 G Ex nA IIC T4 Gc X |
| UL, USA/Canada | cULus listed UL 508 |
| Noxious gas test | ISA-S71.04-1985 G3 Harsh Group A |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Ethernet (EF003535) | Yes |
| Fast Ethernet (EF003536) | No |
| Construction type (EF000767) | Other |
| Height (EF000040) | 99 mm |
| Width (EF000008) | 35.2 mm |
| Depth (EF000049) | 114.493112 mm |
