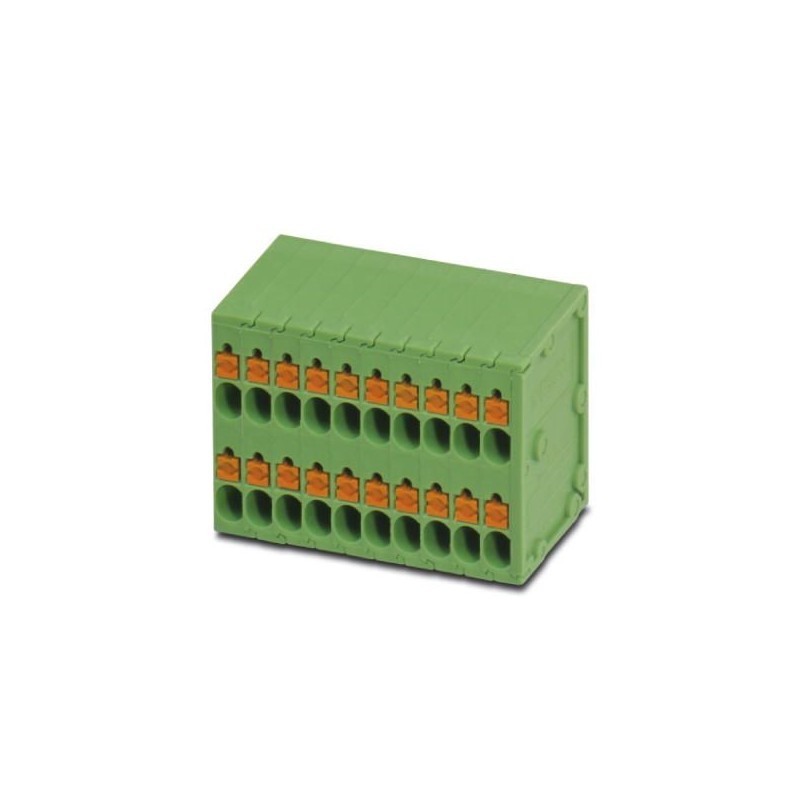

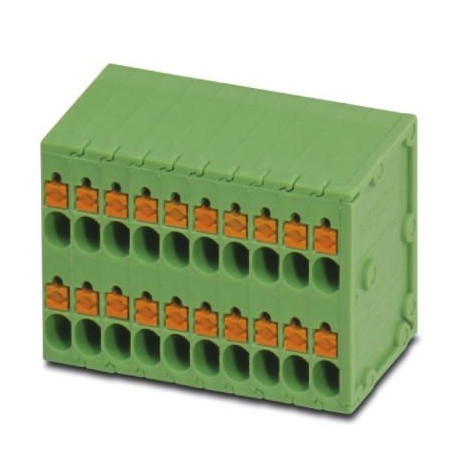

SPTD 1,5/16-H-3,5 1860280 PHOENIX CONTACT PCB terminal block
SPTD 1,5/16-H-3,5
1860280
PHOENIX_CONTACT
20
PCB terminal block
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1860280 |
|---|---|
| Packing unit | 20 pc |
| Minimum order quantity | 20 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626120799 |
| Weight per Piece (excluding packing) | 32.690 g |
| Custom tariff number | 85369010 |
| Country of origin | CN (China) |
Dimensions
| Length [ l ] | 18 mm |
|---|---|
| Pitch | 3.5 mm |
| Width [ w ] | 57.5 mm |
| Height | 24.2 mm |
| Height [ h ] | 24.2 mm |
| Solder pin [P] | 3.5 mm |
| Pin spacing | 9.35 mm |
| Hole diameter | 1.3 mm |
General
| Range of articles | SPTD 1,5 |
|---|---|
| Nominal cross section | 1.5 mm² |
| Contact material | Tin |
| Solder pin surface | |
| Number of positions | 16 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
