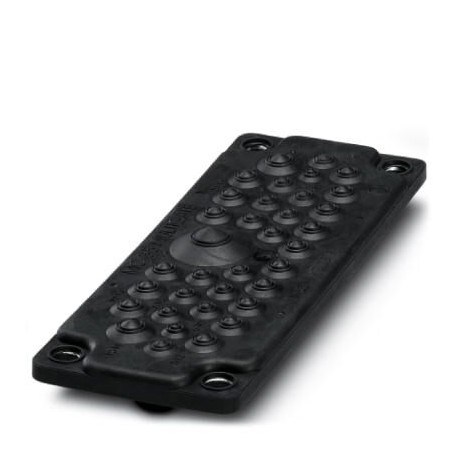

MC-35-MULTI-65-PVO-BK 1422351 PHOENIX CONTACT Cable feed-through plates MC-35-MULTI-65-PVO-BK 1422351
MC-35-MULTI-65-PVO-BK
1422351
PHOENIX_CONTACT

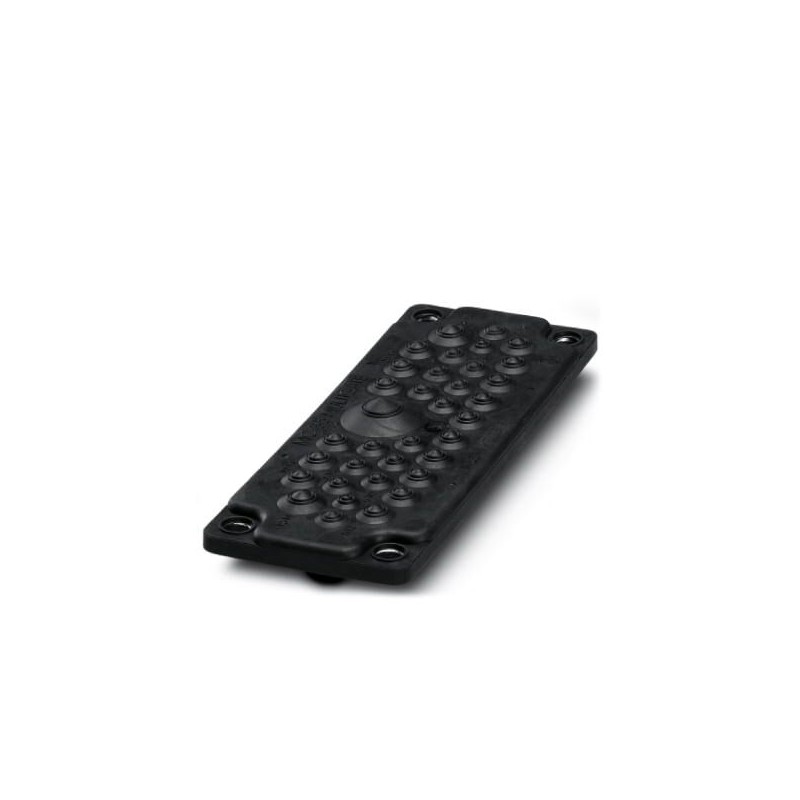

Cable feed-through plates - MC-35-MULTI-65-PVO-BK - 1422351
Plates for cable passage, number of conductors: 35, outer diameter of the cable: 2x 6 mm ... 10 mm, 14x 7 mm... 12mm, 16x 10mm... 14mm, 2x 12mm... 18mm, 1x 17mm... 32 mm, material: galvanized steel sheet (Core), material: TPE-SEBS (outer material), color: black, length: 222 mm, width: 92 mm, height: 17.6 mm
Cable carrying systems > Mounting plate for cable support system
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Cable feed-through plates, no. of conductors: 35, length: 222 mm, width: 92 mm, height: 17.6 mm, external cable diameter: 2x 6 mm ... 10 mm , color: black
Key Commercial Data
| Orderkey | 1422351 |
|---|---|
| Packing unit | 1 |
| Catalog page | Page 690 (C-2-2017) |
| GTIN | 4055626301860 |
| Custom tariff number | 39269097 |
Dimensions
| Length | 222 mm |
|---|---|
| Width | 92 mm |
| Height | 17.6 mm |
| Drill hole distance, horizontal | 62 mm |
| Drill hole distance, vertical | 193 mm |
| External cable diameter | 2x 6 mm ... 10 mm |
| 14x 7 mm ... 12 mm | |
| 16x 10 mm ... 14 mm | |
| 2x 12 mm ... 18 mm | |
| 1x 17 mm ... 32 mm |
Ambient conditions
| Degree of protection | IP65 (Minimum sheet thickness >= 2.5 mm) |
|---|---|
| Ambient temperature (operation) | -40 °C ... 100 °C |
General
| No. of conductors | 35 |
|---|---|
| Material | TPE-SEBS |
| galvanized sheet steel () | |
| Flammability rating according to UL 94 | V0 |
| Color | black |
| Torque | 1.5 Nm ... 2 Nm (Mounting screws) |
| Note | incl. mounting screws |
| 2 mm thick coated, galvanized sheet steel | |
| Installation instructions | M8 mounting screw, torque: 1.5 - 2.0 Nm, SW5 Allen key |
| The mounting screws included should be used for assembly. Assembly steps: 1) Fix Multigates with the mounting screws provided (observe torque) 2) Make a hole in the membrane (with a screwdriver) or cut off the tip of the cone 3) Guide the cable through the opening (from the outside). Withdraw the cable approximately 20 mm (to improve strain relief). |
Standards and Regulations
| Flammability rating according to UL 94 | V0 |
|---|
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 6.0 | 27409200 |
|---|---|
| eCl@ss 7.0 | 27409208 |
| eCl@ss 8.0 | 27409208 |
| eCl@ss 9.0 | 27400569 |
ETIM
| ETIM 5.0 | EC001004 |
|---|---|
| ETIM 7.0 | EC001004 |
| Feature Name | Feature Value |
|---|---|
| Plate height (EF005176) | 222 mm |
| Plate width (EF005175) | 92 mm |
| Material (EF002169) | Other |
| Stainless steel, pickled (EF006388) | Yes |
| Surface protection (EF000139) | Other |
