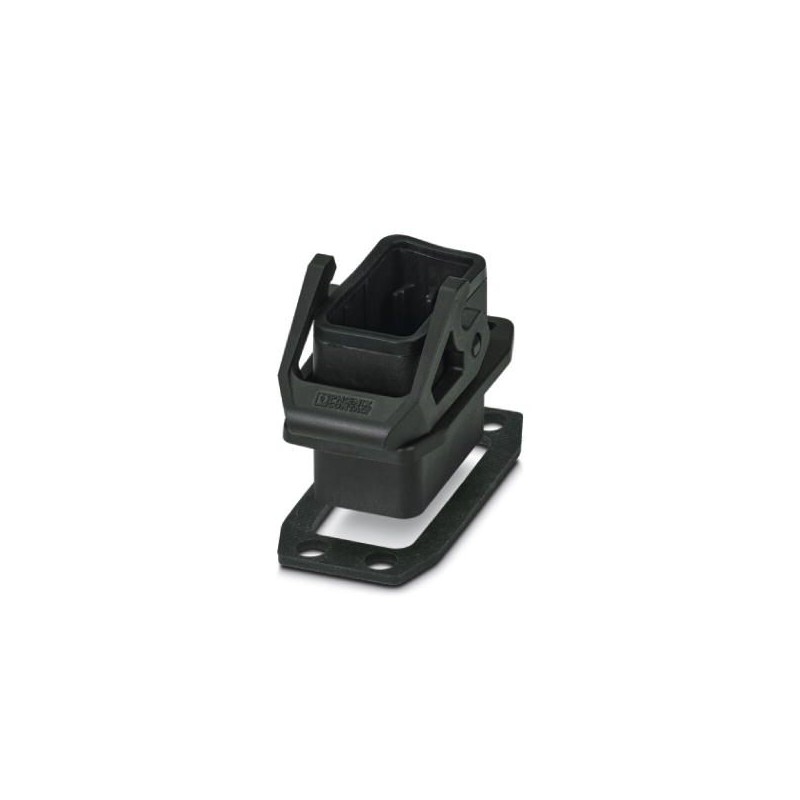

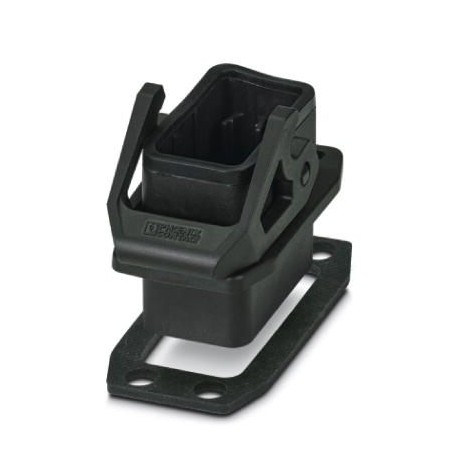

HC-EVO-M1-BWS-PLRBK 1424437 PHOENIX CONTACT Housing
HC-EVO-M1-BWS-PLRBK
1424437
PHOENIX_CONTACT
Housing
M1 recessed housing, with longitudinal flange, material: PA, height: 24 mm, cable gland: without, protective cover: no, Standard, for modular contact holders
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1424437 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626372563 |
| Weight per Piece (excluding packing) | 22.220 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
Dimensions
| Height | 24 mm |
|---|---|
| Width | 40.6 mm |
| Length | 68.6 mm |
| Length of the assembly cutout | 48.2 mm |
| Width of the assembly cutout | 28.6 mm |
Ambient conditions
| Degree of protection of housing (IP) | IP66 |
|---|---|
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Note | for single module width modular contact inserts from the HEAVYCON modular system |
|---|---|
| Size | M1 |
| Housing type | Panel mounting base |
| Color | black |
| Locking type | with single locking latch |
| Screw connection | none |
| Protective cover | no |
| Housing material | PA |
| Seal material | NBR, conductive |
| Material lock | PA |
| Flammability rating according to UL 94 | V0 |
| Connection | The housing can accommodate all Phoenix Contact modules with single module width. Exception: Push-in TWIN modules with Order Nos. 1423962 and 1423961 may not be used due to the lack of rotation protection. |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 40.6 mm |
| Height (EF000040) | 24 mm |
| Depth (EF000049) | 68.6 mm |
| Type of housing (EF006980) | Housing extension |
| Housing material (EF001596) | Other |
| Coating housing (EF001601) | Other |
| Housing colour (EF000136) | Black |
| Position cable feed (EF008218) | Other |
| Position of the shackle (EF008459) | Cover |
| With cable screw gland (EF000735) | No |
| Mounting method of the cable gland (EF012210) | None |
| With hinged lid (EF000117) | No |
| With distance piece (EF005072) | No |
| With sealing (EF005610) | Yes |
| Type of locking (EF000208) | Single locking lever |
| Operating temperature (EF002393) | -40 °C |
| EMC-version (EF001062) | No |
| Degree of protection (IP), mounted (EF007466) | IP66 |
| Impact strength (EF004293) | IK06 |
