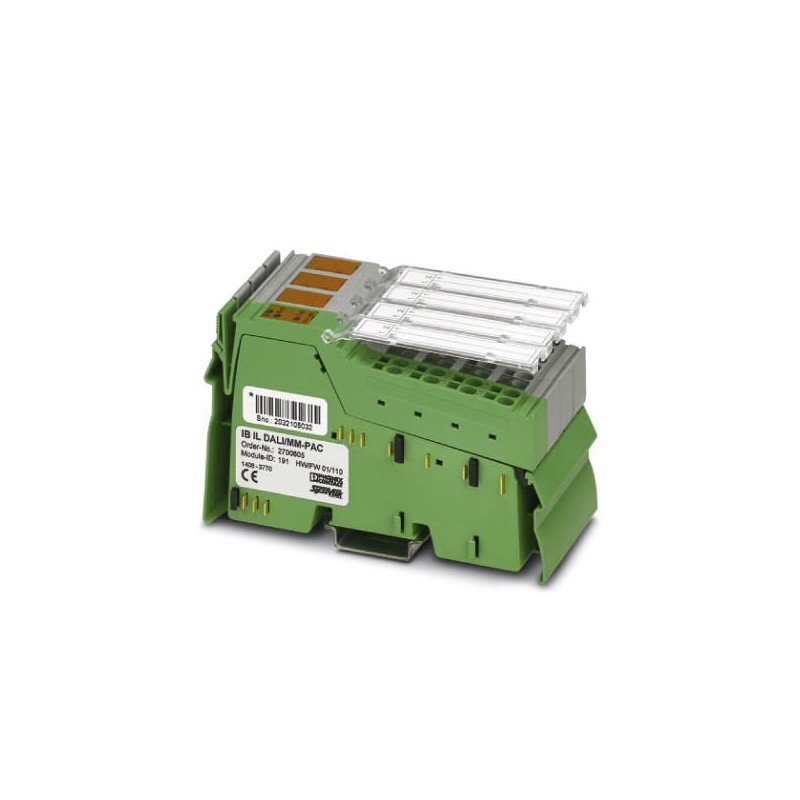

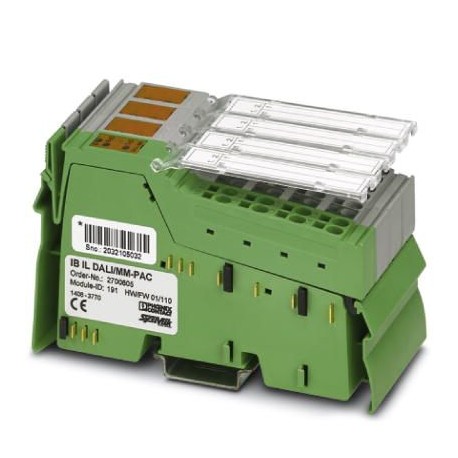

IB IL DALI/MM-PAC 2700605 PHOENIX CONTACT Inline function terminal
IB IL DALI/MM-PAC
2700605
PHOENIX_CONTACT
Inline function terminal
Inline, DALI Master, Suitable for Multi Master, integrated DALI network unit, safe galvanic separation, transmission rate on local bus: 500 kBit/s, protection rating: IP20, including inline connectors and marking fields
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2700605 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 175 (C-6-2017) |
| GTIN | 4046356987103 |
| Weight per Piece (excluding packing) | 180.000 g |
| Custom tariff number | 85389091 |
| Country of origin | DE (Germany) |
Dimensions
| Dimensional drawing | |
|---|---|
| Width | 48.8 mm |
| Height | 119.8 mm |
| Depth | 71.5 mm |
| Note on dimensions | Housing dimensions |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Degree of protection | IP20 |
Connection data
| Designation | Inline connector |
|---|---|
| Connection method | Spring-cage connection |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.08 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 16 |
| Stripping length | 8 mm |
Interfaces
| Designation | Inline local bus |
|---|---|
| Connection method | Inline data jumper |
| Transmission speed | 500 kbps |
| Designation | DALI |
| Connection method | Inline connector |
| Supply voltage | typ. 15 V DC (Bus voltage) |
| Current carrying capacity | max. 220 mA (Bus load) |
| Output current with short-circuit | max. 250 mA |
| Transmission speed | 1200 bps |
| Type of protection | Bus protected up to 250 V AC, maximum |
General
| Mounting type | DIN rail |
|---|---|
| Net weight | 180 g |
| Note on weight specifications | with connectors |
| Diagnostics messages | Yes No I/O error; DALI-specific error at application level |
Inline potentials
| Designation | Communications power (UL) |
|---|---|
| Supply voltage | 7.5 V DC (via voltage jumper) |
| Current consumption | max. 75 mA |
| Designation | Main circuit supply (UM) |
| Supply voltage | 24 V DC (via voltage jumper) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current consumption | max. 230 mA |
| Power consumption | 3.5 W (The amount of power dissipation is heavily dependent on the bus activity, which is only influenced by the terminal itself to a limited extent. The maximum power dissipation is reached when other devices occupy the DALI bus with minimum pauses and the terminal itself does not transmit, and at the same time the DALI current of 220 mA is used in full.) |
Electrical isolation
| Test section | 7.5 V supply (bus logic)/24 V supply (I/O) and functional earth ground (FE) 500 V AC 50 Hz 1 min. |
|---|---|
| 7.5 V supply (bus logic)/DALI bus 2500 V AC 50 Hz 1 min. | |
| 7.5 V supply (bus logic)/DALI bus (routine test) 1200 V AC 50 Hz 1 min. | |
| 24 V supply (I/O)/DALI bus 2500 V AC 50 Hz 1 min. | |
| 24 V supply (I/O)/DALI bus (routine test) 1200 V AC 50 Hz 1 min. |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027250203eCl@ss 4.127250203eCl@ss 5.027250203eCl@ss 5.127242600eCl@ss 6.027242600eCl@ss 7.027242608eCl@ss 8.027242608eCl@ss 9.027242608
