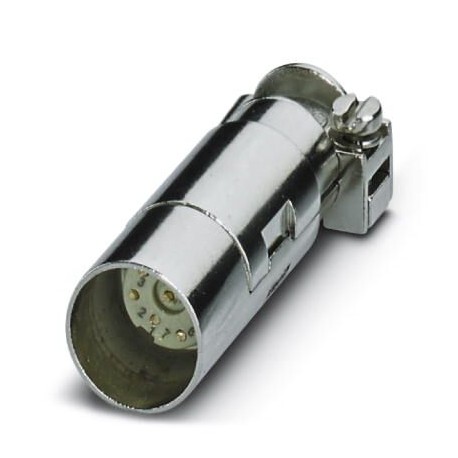

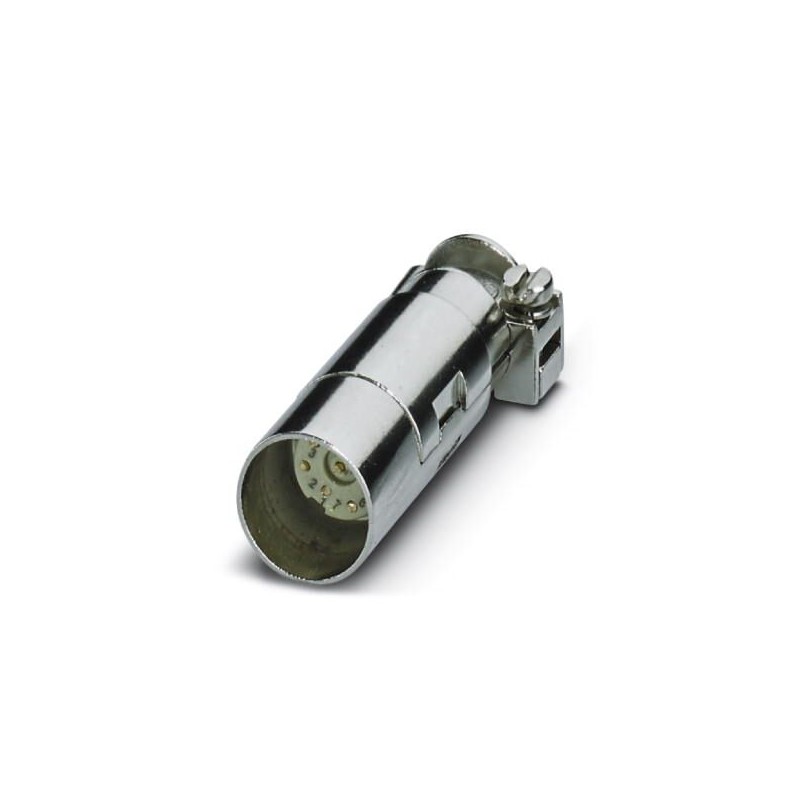

HC-M-08-EMC-DSUB-M 1066082 PHOENIX CONTACT Connector HC-M-08-EMC-DSUB-M 1066082
HC-M-08-EMC-DSUB-M
1066082
PHOENIX_CONTACT
Connector - HC-M-08-EMC-DSUB-M - 1066082
Connector, number of poles: 8, power contacts: 0, control contacts: 8, Male, Crimped connection, 48 V, 5 A, 0.09 mm² ... 0.52 mm², cable outer diameter:3 mm ... 9.5 mm, Application: Data/Signal
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Connector, number of positions: 8, power contacts: 0, control contacts: 8, Pin, 50 V, 5 A, 0.09 mm² ... 0.52 mm², external cable diameter:3 mm ... 9.5 mm
Key Commercial Data
| Orderkey | 1066082 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626728889 |
| Custom tariff number | 85366990 |
General
| Note | Order crimp contacts CUC-DSC-C1BAU-S/DSC... separately |
|---|---|
| The potential of the EMC connector housing is isolated from the potential of the heavy connector. | |
| Clamps for the clamping range of 3 mm - 6 mm and 6 mm - 9.5 mm | |
| Can be used in Order No.: 1417374 HC-M-02-EMC-M | |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Number of positions | 8 |
| No. of power contacts | 0 |
| No. of control contacts | 8 |
| Insertion/withdrawal cycles | ≥ 500 |
| Contact numbering | 1 - 8 |
| Conductor cross section | 0.09 mm² ... 0.52 mm² |
| Connection cross section AWG | 28 ... 20 |
| Minimum external conductor diameter | 3 mm |
| Maximum external conductor diameter | 9.5 mm |
| Connection | The round contact carrier can be separated in the middle for the purpose of assembling/disassembling contacts. Disassemble the connector from the plastic module using the tool, order no.: 1678635 HC-M-EMV-KON-EWZ |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 85 °C |
|---|
Material data
| Contact material | Copper alloy |
|---|---|
| Contact surface material | AU |
| Contact carrier material | PC |
Electrical characteristics
| Rated voltage (III/3) | 50 V |
|---|---|
| Rated surge voltage | 0.8 kV |
| Rated current | 5 A |
Standards and Regulations
| Flammability rating according to UL 94 | V0 |
|---|
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 10.0.1 | 27440290 |
|---|---|
| eCl@ss 9.0 | 27440290 |
ETIM
| ETIM 7.0 | EC002908 |
|---|
| Feature Name | Feature Value |
|---|---|
| Number of power contacts (EF012216) | 0 |
| Number of control contacts (EF012217) | 8 |
| Contact insert without contacts (EF007324) | Yes |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 8 |
| Diameter plug-in contact (EF007320) | 1 mm |
| Material connector insert (EF007545) | Thermoplastic |
| Rated current In (EF008250) | 5 A |
| Ambient temperature (EF002386) | 85 °C |
| Operating temperature (EF002393) | -40 °C |
| Rated voltage (EF000228) | 48 V |
| Rated surge voltage (EF002993) | 0.8 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 3 |
| Type of electric connection (EF003961) | Crimp connection |
| With wire protection (EF000550) | No |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.09 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.09 mm² |
| Material of contact surface (EF004020) | Gold |
| Material of contact insert (EF008521) | Thermoplastic |
| Material contact (EF007544) | Other copper alloys |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | No |
| Min. number of insertion cycles (EF012212) | 500 |
| Height (EF000040) | 15.5 mm |
| Depth (EF000049) | 46.2 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN .pdf | 58 Mbytes |
|
