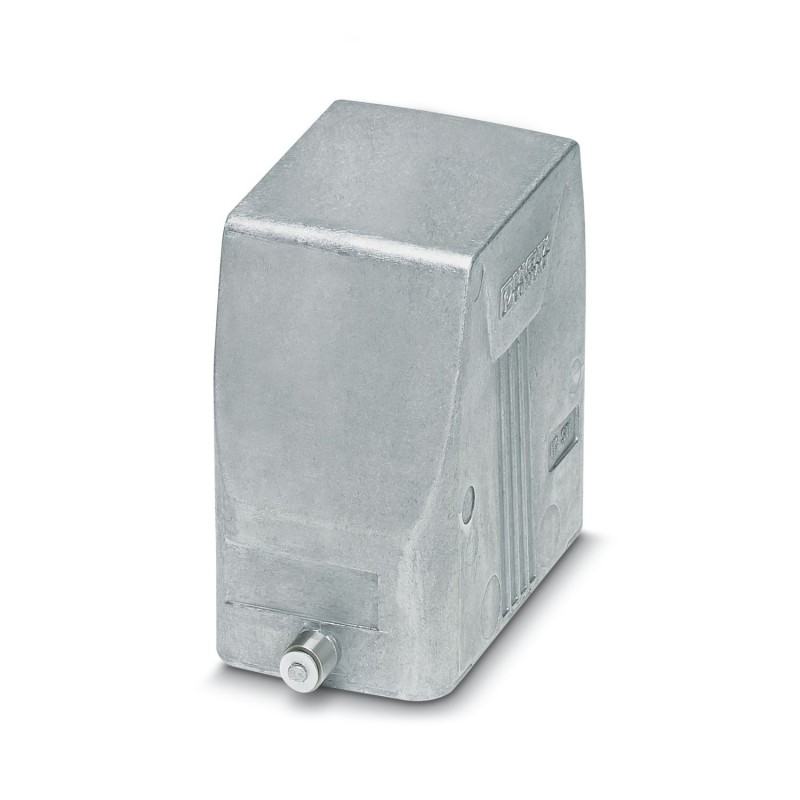

HC-STA-B10-HHFS-BLANK-EL-AL 1419903 PHOENIX CONTACT Housing
HC-STA-B10-HHFS-BLANK-EL-AL
1419903
PHOENIX_CONTACT
Housing
B10 overhead housing, for longitudinal flange, material: Die-cast aluminium, seawater resistant, variable, height: 72 mm, cable gland: without, Standard, without threaded hole for a screw
Grommet housing B10, for longitudinal brackets, material: die-cast aluminium, seawater-resistant, variable, height: 72 mm, cable gland: without, standard, without threaded opening for one screw connection
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1419903 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 647 (C-2-2017) |
| GTIN | 4055626201276 |
| Weight per Piece (excluding packing) | 195.300 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
Ambient conditions
| Degree of protection of housing (IP) | IP66 |
|---|---|
| IP67 | |
| Degree of protection of housing (NEMA) | 4 (UL 50e) |
| 4X (UL 50e) | |
| 12 (UL 50e) | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Note | For contact inserts HC-B10, BB18, DD42, M, K8/24 |
|---|---|
| Size | B10 |
| Housing type | Sleeve housing |
| Color | gray aluminum |
| Locking type | for single locking latch |
| Cable outlet | Variable |
| Screw connection | none |
| Housing material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 44 mm |
| Height (EF000040) | 72 mm |
| Depth (EF000049) | 73 mm |
| Type of housing (EF006980) | Plug case |
| Housing material (EF001596) | Aluminium |
| Coating housing (EF001601) | Uncoated |
| Housing colour (EF000136) | Other |
| Position cable feed (EF008218) | Other |
| Position of the shackle (EF008459) | Other |
| With cable screw gland (EF000735) | No |
| Mounting method of the cable gland (EF012210) | None |
| With hinged lid (EF000117) | No |
| With distance piece (EF005072) | No |
| With sealing (EF005610) | No |
| Number of conduit inlets (EF000437) | 0 |
| Type of locking (EF000208) | Single locking lever |
| Operating temperature (EF002393) | -40 °C |
| EMC-version (EF001062) | Yes |
| Degree of protection (IP), mounted (EF007466) | IP66 |
| Impact strength (EF004293) | IK08 |
Datasheet - PDF
