2170890 ETHERLINE PN Cat.5e FRNC FLEX FC LAPP ETHERLINE PN Cat.5e FRNC FLEX FC

Benefits

• For PROFINET applications type B
• Can be used in dry or damp rooms
• Screened against interference
• Can be used for Industrial Ethernet in harsh industrial environments
• 2pair: 10/100 Mbit/s for Industrial Ethernet

Application range

• for industrial secondary and tertiary cabling according to EN 50173-3
  ISO/IEC 24702
• Wiring of machines, tools, devices, appliances and control cabinets
• suitable for EtherCAT and EtherNet/IP applications
• For flexible applications
  (7-wire stranded conductor)

Product features

• Flame-retardant according to CSA FT4
  UL Vertical-Tray Flame Test
• CAT.5-Performance
• FRNC Version: Halogene free and flame retardant
• Fast Connect (FC) cable design

Norm references / Approvals

• The cable is UL/CSA-certified (CMG)
• ETHERLINE® PN Cat.5 Y FLEX FC: ECOLAB®
  Industry standard for innovation and efficiency in the field of professionllen cleaning and disinfection

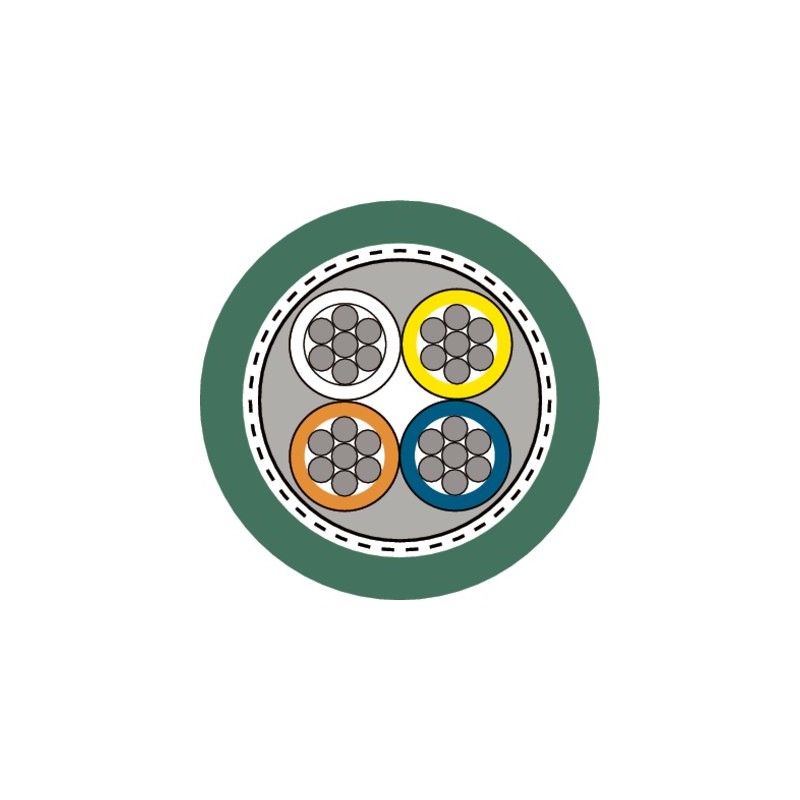

Product Make-up

• Stranded tinned 7-wire conductor
• Core insulation: PE or PP
• Star quad
• Inner sheath made of PVC or FRNC
• Overall screening with copper braid and plastic-laminated aluminium foil
• PVC or FRNC jacket material
• Colour: green (based on RAL 6018)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000830
• ETIM 5.0 Class-Description: Data cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000830
• ETIM 6.0 Class-Description: Data cable

Peak operating voltage

• (not for power applications) 125 V

Minimum bending radius

• FRNC cable:
  fixed: 4 x outer diameter
  during installation: 8 x outer diameter
• PVC cable:
  Fixed installation: 3 x outer diameter
  Flexing: 7 x outer diameter

Test voltage

• Core/core: 2000 V
• Core/screen: 2000 V

Characteristic impedance

• 100 Ω ± 15%

Temperature range

• cable halogenfree compound
  Fixed installation: -25°C to +80°C
  Moved: -25°C to +80°C
  cable with PVC jacket
  Fixed installation: -40°C to +80°C
  Moved: -20°C to +60°C
