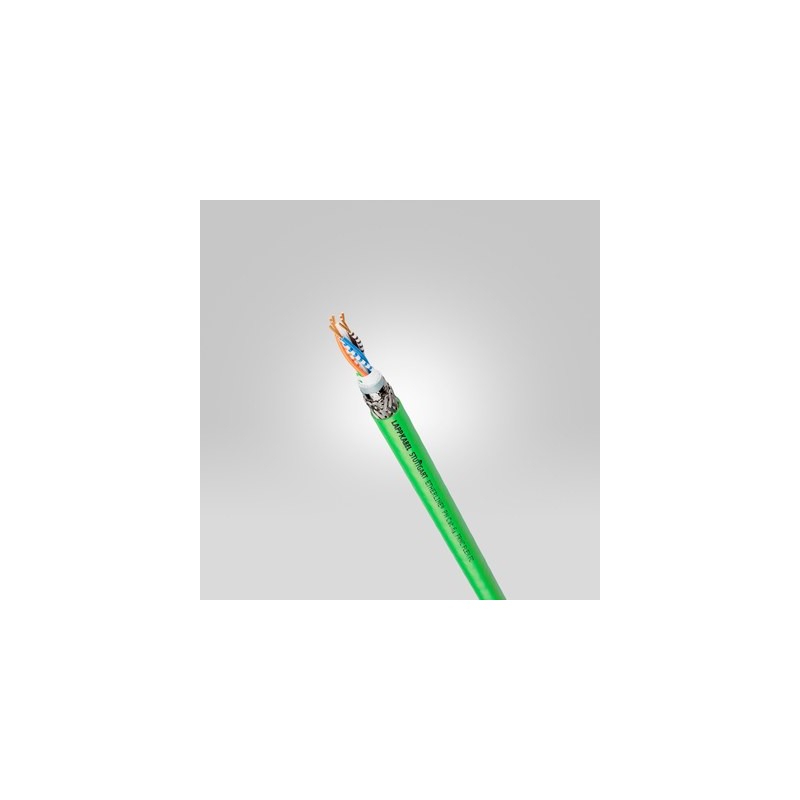

2170586 LAPP ETHERLINE PN CAT.6A Y FLEX FC

Benefits

• Can be used in dry or damp rooms
• Screened against interference
• Can be used for Industrial Ethernet in harsh industrial environments
• 4pair: 100Mbit/s up to 10 Gbit/s for Industrial Ethernet

Application range

• for industrial secondary and tertiary cabling according to EN 50173-3
  ISO/IEC 24702
• Wiring of machines, tools, devices, appliances and control cabinets
• suitable for EtherCAT and EtherNet/IP applications
• For flexible applications
  (7-wire stranded conductor)

Product features

• CAT.6_Afor flexible application, qualified for 10Gbit/s
• Meets the requirements according to CAT.6A, ISO/IEC 11801 and EN 50173
• High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference
• The oil-resistant PVC sheath enables usage in industrial environments
• Robust, halogen-free FRNC outer sheath

Norm references / Approvals

• UL approvals see data sheet
• Flame retardant acc. to IEC 60332-1-2

Product Make-up

• 7-wire bare stranded copper conductor
• Core insulation: PE
• SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening, 2 cores stranded to pair, 4 pairs stranded to bundle with central cross
• Inner sheath: halogen-free compound
• PVC or FRNC jacket material
• Colour: green (based on RAL 6018)

Classification ETIM 5

• ETIM 5.0/6.0 Class-ID: EC000830
• ETIM 5.0/6.0 Class-Description: Data cable

Peak operating voltage

• (not for power applications) 125 V

Minimum bending radius

• Flexing: 8 x outer diameter
• Fixed installation: 4 x outer diameter

Test voltage

• Core/Core: 1500 V AC
• Core/Screen: 1000 V AC

Characteristic impedance

• nom. 100 Ω acc. to IEC 61156-5

Temperature range

• Fixed installation: -40°C to +80°C
• Flexing: -5°C to +50°C
