CE217489 ETHERLINE FD P BK CAT.5 LAPP Ethernet cable Category 5e, Class D for installation in events verifie..

Benefits

• Additional application options thanks to suitability for outdoor use, UV-resistant
• Good flexibility - easy installation with tight space requirements
• Screened against interference
• Easy to coil for mobile use

Application range

• IEEE 802.3: 10/100/1000Base-T
  IEEE 802.5: ISDN; FDDI; ATM
• Suitable for the transfer of audio signals (ETHERSOUND), light control signals (DMX over Ethernet), or for computer networking
• Only for patch cable applications
  (max. 60 m)
• suitable for EtherCAT and EtherNet/IP applications
• 4pair: 10/100/1000 Mbit/s for Industrial Ethernet

Product features

• specifically developed for road environments
• Suitable for outdoor use, UV-resistant
• PUR outer sheath is highly resistant to mineral oils and abrasion
• Premium screening against electromagnetic interference

Norm references / Approvals

• UL AWM Style 21576
• Flame retardant acc. to IEC 60332-1-2
• Halogen-free according to VDE 0472-815

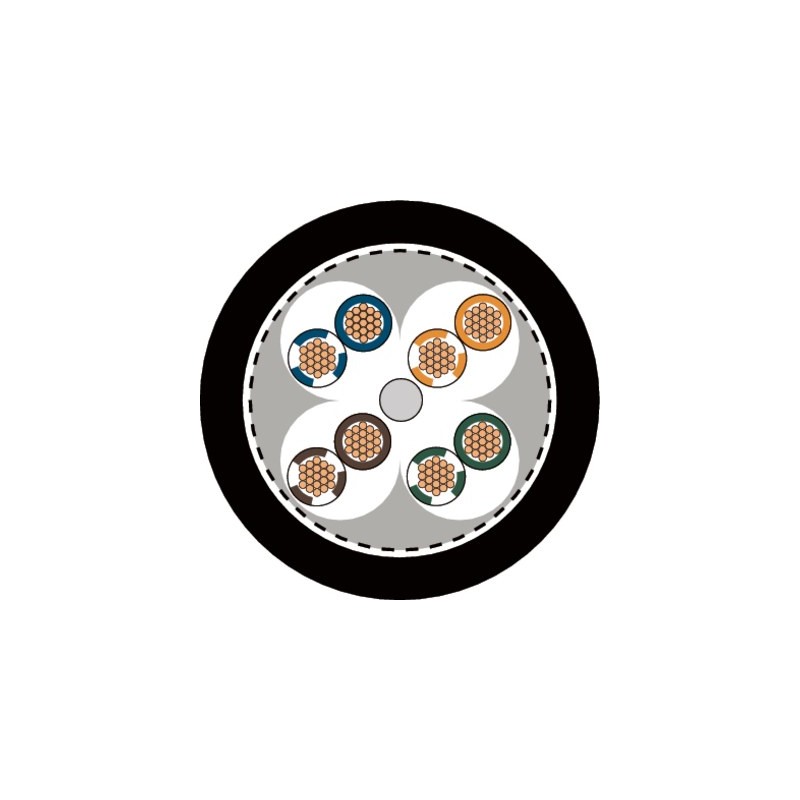

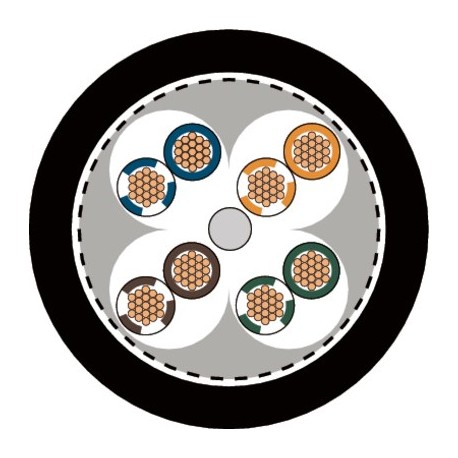

Product Make-up

• Bare stranded copper wire, 26AWG (19 x 0.10), (0.14 mm²)
• Insulation: foam skin, max. core diameter 1.0 mm
• Twisting: 2 twisted-pair cores, stranding from 4 pairs
• Inner sheath: thermoplastic elastomer, halogen-free
• Screening: wrapped with braided tinned-copper wires
• Outer sheath: halogen-free PUR, black

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000830
• ETIM 5.0 Class-Description: Data cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000830
• ETIM 6.0 Class-Description: Data cable

Peak operating voltage

• (not for power applications) 125 V

Minimum bending radius

• Fixed installation: 10 x outer diameter
• Flexing: 15 x outer diameter

Test voltage

• Core/core: 1000 V
• Core/screen: 500 V

Characteristic impedance

• nom. 100 Ω acc. to IEC 61156-6

Temperature range

• Fixed installation: VDE -30°C to +80°C; UL/CSA -30°C to +80°C
  Flexing: VDE -5°C to +50°C; UL/CSA -5°C to +80°C
