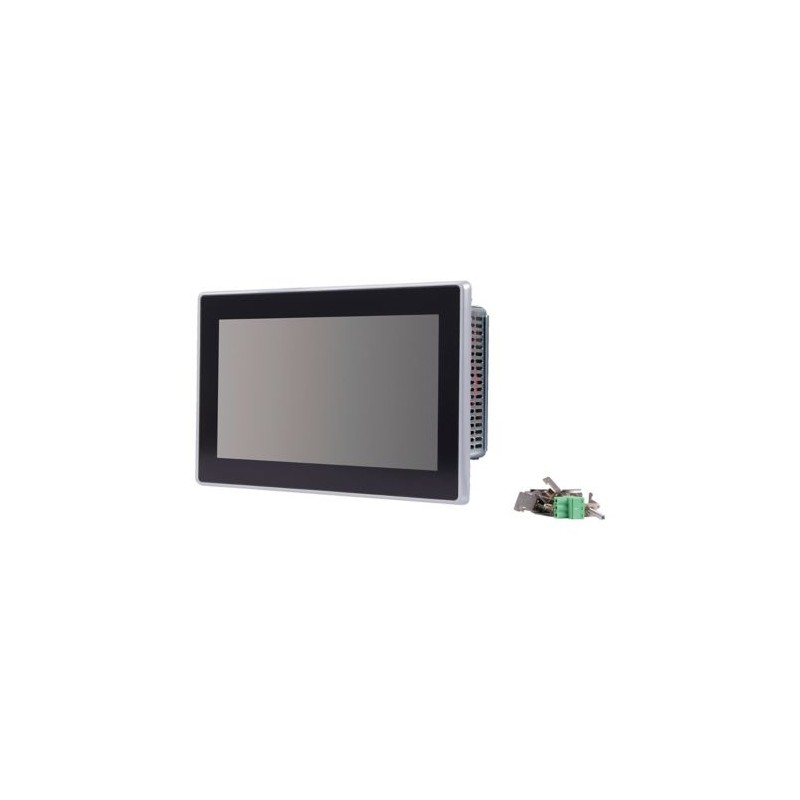

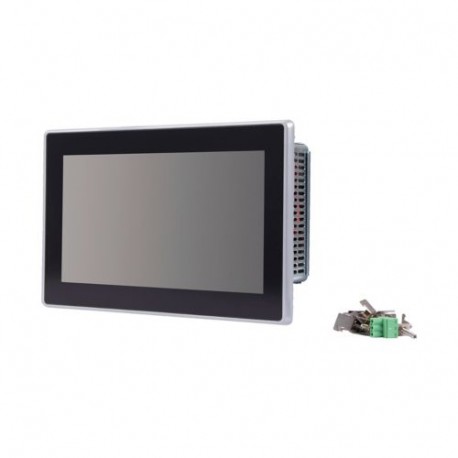

XP-503-10-A10-A00-2B 199526 EATON ELECTRIC XP-503-10-A10-A00-2B
XP-503-10-A10-A00-2B
199526
EATON-MOELLER
XP-503-10-A10-A00-2B
Panel PC with capacitive multi-touch (PCT), 10.1", 2xEthernet, 2xUSB3.0, 1xRS232, 1xRS485, Galileo Runtime License, Windows 10 Enterprise LTSC
Panel PC, Touch technology: Capacitive multitouch (PCT), Multi-touch touch panel touch sensor, Screen size (diagonal): 10.1 Inch, Interfaces: 2 x Ethernet, 2 x USB 3.0, 1 x RS232, 1 x RS485, Operating system: Windows 10, Software: Galileo or 3rd party, Galileo Open Runtime License, Main memory: 4000 MB, Degree of Protection (front side): IP65, Display type: TFT, Tempered glass with anti-reflective coating , the operator can zoom into and scroll across elements and documents from the integrated help system using two fingers. The high-precision sensors prevent unintended commands or machine starts. For example, critical functions can only be activated by pressing multiple control fields at the same time, significantly enhancing system safety in comparison to single-touch panels. XP500 Panel PCs run on Windows IoT. The devices are available with the following three widescreen display sizes: 10.1z, 15.6z, and 21.5z. Their slim design, featuring a non-reflective glass front, delivers a modern look. Thanks to the rugged , scratch-resistant front and open device concept on the Panel PCs make them suitable for use in almost all branches of industry involved in mechanical and plant engineering.
PLC's > Panel PC
HMI Touch Terminals
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product Name
Eaton XP Panel PC
Catalog Number
199526
Model Code
XP-503-10-A10-A00-2B
EAN
7640130099753
Product Length/Depth
276 mm
Product Height
81 mm
Product Width
179 mm
Product Weight
2.7 kg
Certifications
EMC according to 2014/30/EU
UL 508
UL File No.: E205091
Certified by UL for use in Canada
CULus
CSA File No.: C22.2. No. 142-M1987
CE
CUL508
UL Listed
DNV GL
UL 508
UL File No.: E205091
Certified by UL for use in Canada
CULus
CSA File No.: C22.2. No. 142-M1987
CE
CUL508
UL Listed
DNV GL
Features & Fuctions
Enclosure material
Aluminum (die-cast)
Features
Min. 32 GByte SSD
2 x USB host 3.0
1 x RS485
1.65 GHz dual-core CPU
Powerful graphic processor
4 GByte DDR3-RAM
Fanless CPU and system cooling, natural convection-based passive cooling
1 x DVI-I
min. 4 GByte of CFast removable memory
2 x Ethernet interface 10/100/1000 Mbps
1 x RS232
Customer individual configuration
2 x USB host 3.0
1 x RS485
1.65 GHz dual-core CPU
Powerful graphic processor
4 GByte DDR3-RAM
Fanless CPU and system cooling, natural convection-based passive cooling
1 x DVI-I
min. 4 GByte of CFast removable memory
2 x Ethernet interface 10/100/1000 Mbps
1 x RS232
Customer individual configuration
Fitted with:
2 x Ethernet 1000/100/10 Mbps (built-in interface)
2 x USB host 3.0 (built-in interface)
1 x RS232 (built-in interface)
1 x DVI-I (built-in interfaces)
1 x RS485 (built-in interface)
Touch screen
2 x USB host 3.0 (built-in interface)
1 x RS232 (built-in interface)
1 x DVI-I (built-in interfaces)
1 x RS485 (built-in interface)
Touch screen
Functions
Mouse-cursor control integrated
General
Current consumption
1.2 A max.
Degree of protection
NEMA 12
IP20, rear (according to EN 60529-1)
IP20, rear (according to EN 60529-1)
Degree of protection (front side)
IP65
Emitted interference
Class A (according to EN 55022:2010 and EN 61000-6-4:2007)
Interference immunity
According to EN 55024:2010
According to EN 61131-2:2007
According to EN 61000-6-2:2005
According to EN 61131-2:2007
According to EN 61000-6-2:2005
Model
Die-cast aluminum enclosure and glass front in aluminum frame
Mounting method
Flush mounting - Clearance: Width x Height ≥ 50 mm (1.97"), Depth ≥ 20 mm (0.79")
Flush mounting - Inclination from vertical: ⍺ ≤ ± 10 ° (if using natural convection)
Flush mounting - Mounting plate: min. 1.5 mm (0.06"), max. 4 mm
Flush mounting
Front build in possible
Flush mounting - Inclination from vertical: ⍺ ≤ ± 10 ° (if using natural convection)
Flush mounting - Mounting plate: min. 1.5 mm (0.06"), max. 4 mm
Flush mounting
Front build in possible
Number of slots
1 (for CFast memory cards)
Product category
Panel PC
Protocol
EtherNet/IP
MODBUS
Other bus systems
MODBUS
Other bus systems
RoHs conformity
Yes
Software
Galileo or 3rd party
Galileo Open Runtime License
Galileo Open Runtime License
Type
Industrial PC
Voltage type
DC
Climatic environmental conditions
Ambient operating temperature - min
0 °C
Ambient operating temperature - max
50 °C
Ambient storage temperature - min
-20 °C
Ambient storage temperature - max
60 °C
Environmental conditions
Condensation: Non-condensing
Operating temperature - min
0 °C
Operating temperature - max
50 °C
Relative humidity
10 - 90 % (non-condensing)
Electrical rating
Rated operational voltage
24 V DC (power-supply - safety extra low voltage)
Supply voltage
18-36 V DC, Power supply, permissible voltage
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at DC - min
18 VDC
Supply voltage at DC - max
36 VDC
Display
Display contrast ratio
500:1
Display lighting
Single LED (side-light type)
Display size
16:9
222.72 x 125.28 mm
222.72 x 125.28 mm
Display type
Tempered glass with anti-reflective coating
TFT
TFT
Display viewing angle
70°/70°/70°/50° (left/right/up/down)
Lifespan
50,000 h (Service life of back-lighting)
Luminance intensity
550 cd/m²
Number of colors of the display
262144
Pixel resolution
1024 x 600
WSVGA
WSVGA
Screen size (diagonal)
10.1 in
Touch technology
Capacitive multitouch (PCT)
Multi-touch touch panel touch sensor
Multi-touch touch panel touch sensor
System
Backup time
5 years, typ. (time at zero voltage)
Battery runtime
Back-up of real-time clock: CR 2032 (220 mA/h, 3 V), replaceable
External memory
Min. 4 GB of CFast removable memory
Internal memory
4 GByte of DDR3 RAM, min. 32 GByte SSD
Memory capacity
4,000 MB
Operating system
Windows 10
Processor
X86, DualCore 1.65Ghz
Design verification
Equipment heat dissipation, current-dependent Pvid
29 W
Static heat dissipation, non-current-dependent Pvs
29 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply to plastic enclosures.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Feature Name | Feature Value |
|---|---|
| Supply voltage AC 50 Hz (EF007532) | 0 V |
| Supply voltage AC 60 Hz (EF007533) | 0 V |
| Supply voltage DC (EF007534) | 18 V |
| Voltage type (supply voltage) (EF002991) | DC |
| Number of HW-interfaces industrial Ethernet (EF003020) | 2 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 1 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 1 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces USB (EF003025) | 2 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces other (EF003027) | 1 |
| Number of HW-interfaces SCSI (EF003138) | 0 |
| Number of HW-interfaces PS2 (EF003139) | 0 |
| Supporting protocol for EtherCAT (EF017564) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for Modbus (EF003057) | Yes |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | Yes |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| Radio standard GSM (EF008524) | No |
| Radio standard UMTS (EF008525) | No |
| IO link master (EF007298) | No |
| Type of display (EF008244) | TFT |
| Screen diagonal (EF002032) | 10.1 inch |
| Number of pixels, horizontal (EF003099) | 1024 |
| Number of pixels, vertical (EF003100) | 600 |
| Preinstalled operating system (EF007535) | Windows 10 |
| Max. main memory (EF003123) | 4000 MB |
| Integrated keyboard (EF003141) | No |
| Number of function buttons (EF003142) | 0 |
| Number of buttons with LED (EF009259) | 0 |
| Number of system buttons (EF009260) | 0 |
| With touch screen (EF003102) | Yes |
| Mouse-cursor control integrated (EF003143) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | 12 |
| Certified for UL hazardous location class I (EF017622) | No |
| Certified for UL hazardous location class II (EF017625) | No |
| Certified for UL hazardous location class III (EF017627) | No |
| Certified for UL hazardous location division 1 (EF017628) | No |
| Certified for UL hazardous location division 2 (EF017629) | No |
| Certified for UL hazardous location group A (acetylene) (EF017632) | No |
| Certified for UL hazardous location group B (hydrogen) (EF017633) | No |
| Certified for UL hazardous location group C (ethylene) (EF017635) | No |
| Certified for UL hazardous location group D (propane) (EF017636) | No |
| Certified for UL hazardous location group E (metal dusts) (EF017637) | No |
| Certified for UL hazardous location group F (carbonaceous dusts) (EF017638) | No |
| Certified for UL hazardous location group G (non-conductive dusts) (EF017639) | No |
| Operating temperature (EF002393) | 0 °C |
| With hard disc (EF002000) | No |
| With optical drive (EF012515) | No |
| With floppy disc drive (EF003128) | No |
| With other storage media (EF003129) | No |
| Customer individual configuration (EF003132) | Yes |
| Number of free AGP-slots (EF003133) | 0 |
| Number of free PCI-slots (EF003134) | 0 |
| Number of free ISA-slots (EF003135) | 0 |
| Number of free PCMCIA-slots (EF003136) | 0 |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | Yes |
| Rack-assembly possible (EF007018) | No |
| Mounting type, table foot (EF007019) | No |
| Mounting type, gallows mounting (EF007017) | No |
| Suitable for safety functions (EF001597) | No |
| Width of the front (EF003651) | 276 mm |
| Height of the front (EF003652) | 179 mm |
| Built-in depth (EF000218) | 73.5 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XP-503-10-A10-A00-2B 199526 IT_174474.pdf | 2 Mbytes |
|
Reviews (0) ▲
No customer reviews for the moment.
Add Review
hide form
| Rating: |
|
| Name: | |
| Email: | |
| Subject: | |
| Text: | |
| Do you recommend this product to buy? | |
|
|
|
| Add review | |
All ratings we receive from the items we offer are real and verified. A small gesture, but a lot of value. That's why we thank you for that minute you invest in leaving us your opinion and qualification about the products, because it helps us to continue improving and to offer you a service of even higher quality.
