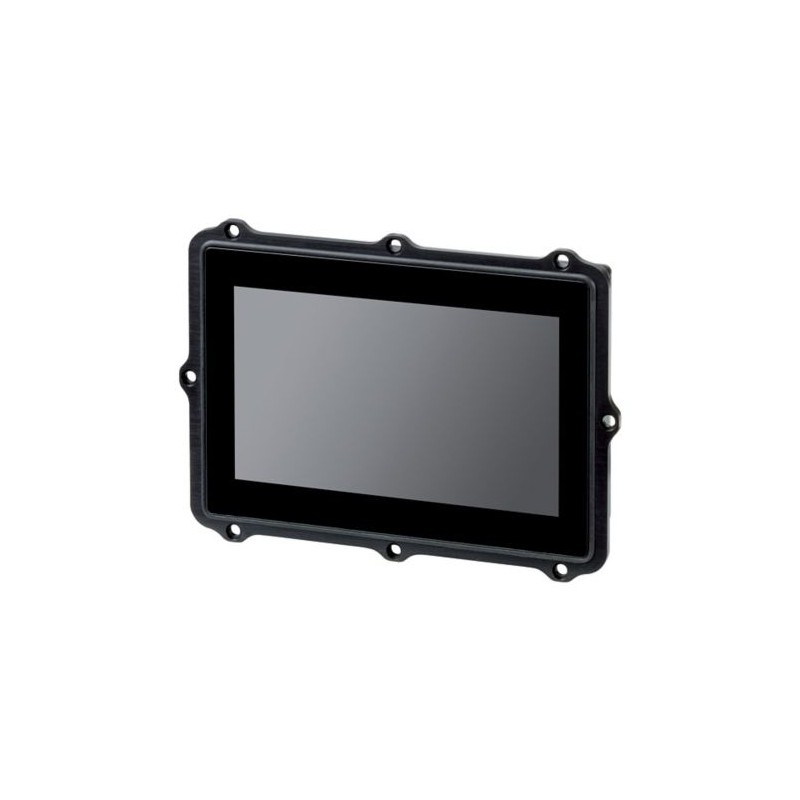

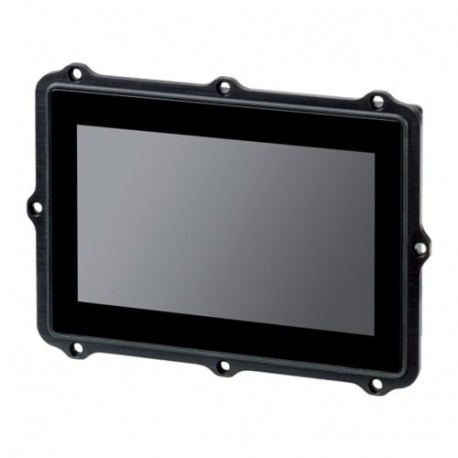

XV-313-70-CE0-A00-1C 191003 Y7-191003 EATON ELECTRIC Control panel with PLC for rear mounting as SWD coordin..
XV-313-70-CE0-A00-1C
191003
Y7-191003
EATON-MOELLER
Control panel with PLC for rear mounting as SWD coordinator,24VDC,7-inch PCT displ.,1024x600 pixels,2xEthernet,1xRS232,1xRS485,1xCAN,1xSWD,1xSD
XV-313-70-CE0-A00-1C
Eaton XV-313 User interface with PLC for rear mounting as SWD coordinator,24VDC,7-inch PCT displ.,1024x600 pixels,2xEthernet,1xRS232,1xRS485,1xCAN,1xSWD,1xSD
SWD multi-touch display with PLC, XV-313, Product range: XV300 7z, Subrange: SmartWire-DT touch display with integrated controller (HMI PLC), Function: SmartWire-DT coordinator, Description: XV300 multi touch display with PLC function for flush mounting plates, Control panel with PLC as a SmartWire-DT coordinator and 2nd Ethernet port, Common features of the model series: Ethernet interface, CAN, USB device, USB Host, RS232, RS485, Slot for SD card, Operating System Windows Embedded Compact 7 pro, Integrated Runtime visualization software license, Display - Type: Color display, TFT, anti-glare , Touch-technology: Capacitive multi-touch technology (PCT), Number of colors: 16777216 (Color depth 24 bit), Resolution: WSVGA, 1024 x 600 Pixel, Portrait format: yes, Screen diagonal: 7, widescreen Inch, Plastic enclosure and glass panel in aluminum mounting frame, Operating system: Windows Embedded Compact 7 Pro, PLC-license: PLC license inclusive, License certificates for onboard interfaces: Not required, built-in interfaces: 2 x Ethernet 10/100 Mbps, 1 x RS232, 1 x RS485, 1 x USB host 2.0, 1 x USB device, 1 x CANopen®/easyNet, 1 x SmartWire-DT, Front type: Anti-glare tempered glass without bezel, Utilization: Rear mounting , Slots: for SD card: 1, Memory card automation: Optionally with SD card -> article no. 181638, Pluggable communication cards (optional): no, Touch sensor: Multi-touch touch panel, Heat dissipation: 14.4 W, Connection to SmartWire-DT: yes, Degree of protection (IEC/EN 60529, EN50178, VBG 4): IP65 (in the front as per EN 60529-1), IP20 (on rear as per EN 60529-1), NEMA 4X, NEMA12 (as per NEMA 250-2003)
PLC's > Graphic panel
HMI Touch Terminals
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲General specifications
Product Name
Eaton XV-313 Touch panel
Catalog Number
191003
Model Code
XV-313-70-CE0-A00-1C
EAN
7640130099050
Product Length/Depth
209 mm
Product Height
50 mm
Product Width
151 mm
Product Weight
0.8 kg
Certifications
UL 61010-2-201
EMC according to 2014/30/EU
UL File No.: E205091
IEC/EN 61131-2
CE
CUL
Certified by UL for use in Canada
UL
EN 50178
DNV GL
EMC according to 2014/30/EU
UL File No.: E205091
IEC/EN 61131-2
CE
CUL
Certified by UL for use in Canada
UL
EN 50178
DNV GL
Features & Functions
Enclosure material
Insulated material
Features
Slot for SD card
CAN
Ethernet interface
RS485
RS232
Portrait format
USB Host
Integrated Runtime visualization software license
Overload proof
USB device
Operating System Windows Embedded Compact 7 pro
Fanless CPU and system cooling, natural convection-based passive cooling
Target and web visualization
CAN
Ethernet interface
RS485
RS232
Portrait format
USB Host
Integrated Runtime visualization software license
Overload proof
USB device
Operating System Windows Embedded Compact 7 pro
Fanless CPU and system cooling, natural convection-based passive cooling
Target and web visualization
Fitted with:
1 x RS232 (built-in interface)
1 x RS485 (built-in interface)
SW interfaces
Message indication
Recipes
Color display
1 x USB host 2.0 (built-in interface)
Printer output
1 x SmartWire-DT (built-in interface)
Message system (incl. buffer and confirmation)
1 x USB device (built-in interface)
1 x CANopen®/easyNet (built-in interfaces)
2 x Ethernet 10/100 Mbps (built-in interface)
1 x RS485 (built-in interface)
SW interfaces
Message indication
Recipes
Color display
1 x USB host 2.0 (built-in interface)
Printer output
1 x SmartWire-DT (built-in interface)
Message system (incl. buffer and confirmation)
1 x USB device (built-in interface)
1 x CANopen®/easyNet (built-in interfaces)
2 x Ethernet 10/100 Mbps (built-in interface)
Functions
Process value representation (output) possible
SmartWire-DT coordination
Process default value (input) possible
Additional software components, loadable
SmartWire-DT coordination
Process default value (input) possible
Additional software components, loadable
General
Battery runtime
Back-up of real-time clock: BR 2330, non-replaceable (soldered)
Degree of protection
NEMA 4X
IP20, rear (according to EN 60529-1)
NEMA 12
IP20, rear (according to EN 60529-1)
NEMA 12
Degree of protection (front side)
IP65
NEMA 12
NEMA 12
Fuse type
Built-in fuse (not accessible)
Lifespan
50,000 h (Service life of back-lighting)
Model
Plastic enclosure and glass panel in aluminum mounting frame
Mounting method
Flush mounting - Clearance: Width x Height x Depth ≥ 30 mm (1.18")
Flush mounting - Inclination from vertical: ±45° (if using natural convection)
Rear mounting
Flush mounting - Inclination from vertical: ±45° (if using natural convection)
Rear mounting
Potential isolation
Supply voltage UAUX: no
Power supply: no
Between UPow and 15 V SmartWire-DT supply voltage: no
Power supply: no
Between UPow and 15 V SmartWire-DT supply voltage: no
Protection against polarity reversal
Yes
Yes, for supply voltage (Siemens MPI optional)
Yes, for supply voltage (Siemens MPI optional)
Product category
SmartWire-DT coordinators
Repetition rate
1 s
Residual ripple
≤ 5 % (input voltage)
RoHs conformity
Yes
Short-circuit protection
Yes, Short-circuit rating, SmartWire-DT supply voltage
No, external fuse FAZ Z3, Supply voltage UAux
No, external fuse FAZ Z3, Supply voltage UAux
Software
GALILEO, Visualization software, Engineering
XSOFT-CODESYS, Visualization software, Engineering
XSOFT-CODESYS-2, PLC-Programming software, Engineering
XSOFT-CODESYS-3, PLC-Programming software, Engineering
XSOFT-CODESYS, Visualization software, Engineering
XSOFT-CODESYS-2, PLC-Programming software, Engineering
XSOFT-CODESYS-3, PLC-Programming software, Engineering
Terminal capacity
0.25 - 1.5 mm², flexible with ferrule
0.2 - 1.5 mm², solid
24 - 16 AWG, solid or stranded
0.2 - 1.5 mm², solid
24 - 16 AWG, solid or stranded
Type
Control panel with PLC as a SmartWire-DT coordinator and 2nd Ethernet port
Voltage type
DC
Ambient conditions, mechanical
Shock resistance
15 g, 11 ms, Mechanical
Vibration resistance
60 - 150 Hz, ± 2 g
5 - 9 Hz, ± 3.5 mm
9 - 60 Hz, ± 0.15 mm
5 - 9 Hz, ± 3.5 mm
9 - 60 Hz, ± 0.15 mm
Climatic environmental conditions
Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
0 °C
Ambient operating temperature - max
50 °C
Ambient storage temperature - min
-20 °C
Ambient storage temperature - max
60 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-3
Dry heat to IEC 60068-2-2
Cold to EN 60068-2-1
Dry heat to IEC 60068-2-2
Cold to EN 60068-2-1
Environmental conditions
Condensation: Non-condensing
Operating temperature - min
0 °C
Operating temperature - max
50 °C
Relative humidity
10 - 95 % (non-condensing)
Electro magnetic compatibility
Emitted interference
According to IEC/EN 61000-6-4
Interference immunity
According to EN 61000-6-2
Voltage dips
5 ms from undervoltage (19.2 V DC)
≤ 10 ms from rated voltage (24 V DC)
≤ 10 ms, Bridging voltage dips
≤ 10 ms from rated voltage (24 V DC)
≤ 10 ms, Bridging voltage dips
Electrical rating
Inrush current
12.5 A (for 6 ms)
Permissible voltage
35 V DC (for a duration of < 100 ms)
18.0 - 31.2 V DC, absolute with ripple
19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %)
18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %)
18.0 - 31.2 V DC, absolute with ripple
19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %)
18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %)
Power consumption
14 W typ.
Max. 14.4 W
11.9 W
Max. 14.4 W
11.9 W
Rated control supply voltage
24 V DC (UPOW, -15 %/+20 %)
24 V DC (UAUX, -15 %/+20 %)
24 V DC (UAUX, -15 %/+20 %)
Rated operational current (Ie)
0.7 A
Rated operational voltage
14.5 V (± 3 % - SmartWire-DT)
24 V DC (power-supply - safety extra low voltage)
Typically UAUX -0.2 V (for 24 V DC slaves)
24 V DC (power-supply - safety extra low voltage)
Typically UAUX -0.2 V (for 24 V DC slaves)
Supply current
3 A, Imax, Supply voltage UAux
0.7 A, Imax, SmartWire-DT supply
If SmartWire-DT modules with a total power consumption > 0.7 A are connected, a power feeder module EU5C-SWD-PF2 has to be used; SmartWire-DT supply
If contactors with a total power consumption > 3 A are connected, a power feeder module EU5C-SWD-PF1/2 has to be used, Supply voltage UAux
0.7 A, Imax, SmartWire-DT supply
If SmartWire-DT modules with a total power consumption > 0.7 A are connected, a power feeder module EU5C-SWD-PF2 has to be used; SmartWire-DT supply
If contactors with a total power consumption > 3 A are connected, a power feeder module EU5C-SWD-PF1/2 has to be used, Supply voltage UAux
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at DC - min
19.2 VDC
Supply voltage at DC - max
30 VDC
Communication
Addressing
Address set automatically
Communication interface
SmartWire-DT master
Connection
SmartWire-DT blade terminal SWD4-8MF2
Connection to SmartWire-DT
Yes
Connection type
Push in terminals, Supply voltage
SWD: Plug, 8-pole
SWD: Plug, 8-pole
Data transfer rate
250 kBit/s, SmartWire-DT
125 kBit/s, SmartWire-DT
125 kBit/s, SmartWire-DT
Interfaces
10/100 Mbps Ethernet connection
RS485 (not galvanically isolated, 9-pin SUB-D plug, UNC)
USB 2.0 device (not galvanically isolated)
RS232 (not galvanically isolated, 9-pin SUB-D plug, UNC)
USB 2.0 host (not galvanically isolated)
CAN (not galvanically isolated, 9-pin SUB-D plug, UNC)
RS485 (not galvanically isolated, 9-pin SUB-D plug, UNC)
USB 2.0 device (not galvanically isolated)
RS232 (not galvanically isolated, 9-pin SUB-D plug, UNC)
USB 2.0 host (not galvanically isolated)
CAN (not galvanically isolated, 9-pin SUB-D plug, UNC)
LED indicator
Status indication of Supply voltage: LED
Status indication of SmartWire-DT master: Green and red LEDs
Status indication of SmartWire-DT network: Configurable green or red LED
Status indication of SmartWire-DT master: Green and red LEDs
Status indication of SmartWire-DT network: Configurable green or red LED
Number of slots
1 (for SD-Card)
Number of SmartWire-DT slaves
99
Protocol
TCP/IP
EtherNet/IP
CAN
MODBUS
EtherCAT
EtherNet/IP
CAN
MODBUS
EtherCAT
Station
SmartWire-DT master, SmartWire-DT network
Display
Display contrast ratio
500:1
Display lighting
Dimmable via software
LED
LED
Display size
153.6 x 90.0 mm
16:9
16:9
Display type
Anti-glare tempered glass without bezel
Color display, TFT, anti-glare
TFT
Color display, TFT, anti-glare
TFT
Luminance intensity
400 cd/m²
Number of colors of the display
16777216
Resolution
Screen size (diagonal)
7 in
Touch technology
Multi-touch touch panel touch sensor
Projected Capacitive Touch (PCT)
Capacitive multitouch
Projected Capacitive Touch (PCT)
Capacitive multitouch
System
Backup time
10 years, typ. (time at zero voltage)
Memory
DRAM: 512 MByte RAM
Flash: 1 GByte SLC
NVRAM: 128kByte Retain
SD card, Type: SDSC, SDHC (external memory)
Flash: 1 GByte SLC
NVRAM: 128kByte Retain
SD card, Type: SDSC, SDHC (external memory)
Memory capacity
512,000 kByte
Operating system
Windows Embedded Compact 7 Pro
Processor
ARM Cortex-A9 800 MHz
Design verification
Equipment heat dissipation, current-dependent Pvid
14.4 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
14.4 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Feature Name | Feature Value |
|---|---|
| Supply voltage AC 50 Hz (EF007532) | 0 V |
| Supply voltage AC 60 Hz (EF007533) | 0 V |
| Supply voltage DC (EF007534) | 19.2 V |
| Voltage type (supply voltage) (EF002991) | DC |
| Power consumption (EF000346) | 14 W |
| Number of HW-interfaces industrial Ethernet (EF003020) | 2 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 1 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 1 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces USB (EF003025) | 2 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces other (EF003027) | 1 |
| With SW interfaces (EF003121) | Yes |
| Supporting protocol for EtherCAT (EF017564) | Yes |
| Supporting protocol for TCP/IP (EF003050) | Yes |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for CAN (EF003053) | Yes |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for Modbus (EF003057) | Yes |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | Yes |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for other bus systems (EF003062) | No |
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| Radio standard GSM (EF008524) | No |
| Radio standard UMTS (EF008525) | No |
| IO link master (EF007298) | No |
| Type of display (EF008244) | TFT |
| Colour display (EF003097) | Yes |
| Number of colours of the display (EF003098) | 16777216 |
| Number of grey-scales/blue-scales of display (EF008515) | 0 |
| Screen diagonal (EF002032) | 7 inch |
| Number of pixels, horizontal (EF003099) | 1024 |
| Number of pixels, vertical (EF003100) | 600 |
| Useful project memory/user memory (EF003108) | 512000 kByte |
| With numeric keyboard (EF003105) | No |
| With alpha numeric keyboard (EF003106) | No |
| Number of function buttons, programmable (EF003103) | 0 |
| Number of buttons with LED (EF009259) | 0 |
| Number of system buttons (EF009260) | 1 |
| Touch technology (EF010884) | Capacitive multitouch |
| With message indication (EF003109) | Yes |
| With message system (incl. buffer and confirmation) (EF003110) | Yes |
| Process value representation (output) possible (EF003111) | Yes |
| Process default value (input) possible (EF003112) | Yes |
| With recipes (EF003113) | Yes |
| Number of password levels (EF003114) | 200 |
| With printer output (EF003115) | Yes |
| Number of online languages (EF003116) | 100 |
| Additional software components, loadable (EF003117) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA), front side (EF011961) | 12 |
| Certified for UL hazardous location class I (EF017622) | No |
| Certified for UL hazardous location class II (EF017625) | No |
| Certified for UL hazardous location class III (EF017627) | No |
| Certified for UL hazardous location division 1 (EF017628) | No |
| Certified for UL hazardous location division 2 (EF017629) | No |
| Certified for UL hazardous location group A (acetylene) (EF017632) | No |
| Certified for UL hazardous location group B (hydrogen) (EF017633) | No |
| Certified for UL hazardous location group C (ethylene) (EF017635) | No |
| Certified for UL hazardous location group D (propane) (EF017636) | No |
| Certified for UL hazardous location group E (metal dusts) (EF017637) | No |
| Certified for UL hazardous location group F (carbonaceous dusts) (EF017638) | No |
| Certified for UL hazardous location group G (non-conductive dusts) (EF017639) | No |
| Operating temperature (EF002393) | 0 °C |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting/direct mounting (EF007020) | No |
| Suitable for safety functions (EF001597) | No |
| Width of the front (EF003651) | 404 mm |
| Height of the front (EF003652) | 255 mm |
| Built-in depth (EF000218) | 43.1 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XV-313-70-CE0-A00-1C Y7-191003 191003 ES_179671.pdf | 2 Mbytes |
|
Reviews (0) ▲
No customer reviews for the moment.
Add Review
hide form
| Rating: |
|
| Name: | |
| Email: | |
| Subject: | |
| Text: | |
| Do you recommend this product to buy? | |
|
|
|
| Add review | |
All ratings we receive from the items we offer are real and verified. A small gesture, but a lot of value. That's why we thank you for that minute you invest in leaving us your opinion and qualification about the products, because it helps us to continue improving and to offer you a service of even higher quality.
