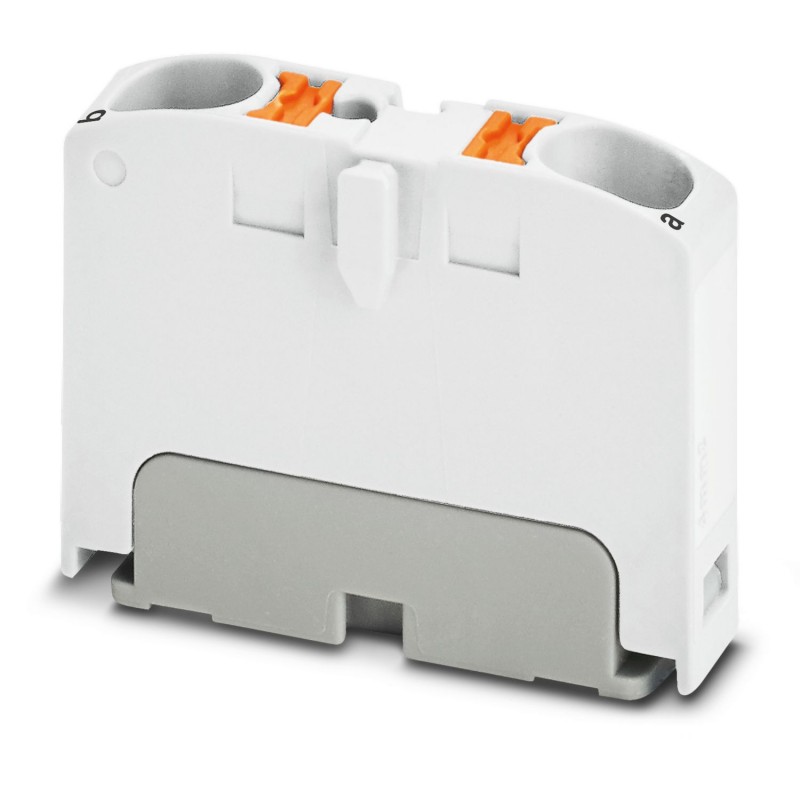

PTFIX 2X4 WH 1028366 PHOENIX CONTACT Block for distribution, Terminal base, rated voltage: 450 V, nominal cu..
PTFIX 2X4 WH
1028366
PHOENIX_CONTACT
50
Block for distribution, Terminal base, rated voltage: 450 V, nominal current: 32 A, type of Connection: Connection push-in connection, number of connections: 2, section: 0,2 mm2-6 mm2, AWG: 24-10 width: 6.2 mm, height: 21,7 mm, color: white, assembly type: interlock adapter for rail
Distribution block, Base terminal, nominal voltage: 800 V, nominal current: 32 A, number of connections: 2, connection type: Push-in connection, Dimensioning section: 4 mm², cross-section: 0.2 mm² - 6 mm², mounting class: interlock in rail adapter, Direct mounting with a flange, Aerial, color: white
Monobloc, Basic terminal block, nominal voltage: 450 V, Number of connections: 2, Connection type: Push-in connection, Push-in connection, Reference section: 4 mm2, Cross-section: 0.2 mm2 - 6 mm2, Mounting type: Snap-on to profile adapter, Direct mounting with flange, Handwheel, colour: white
Terminal blocks > Feed-through terminal block
FIX block System
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product Type | Valve block |
| Number of connections | 2 |
| Number of rows | 1 |
| Data Management Status | |
| Revision of the article | 02 |
| Insulation properties | |
| Surge Category | III |
| Rated shock resistance voltage | 8 kV |
| Maximum power dissipation under nominal conditions | 1.02 W |
| Number of connections per floor | 2 |
| Nominal cross-section | 4 mm² |
| AWG Assigned Section | 12 |
| Stripping length | 10 mm ... 12 mm |
| Template | A4 |
| Connection according to the standard | IEC 60998-2-2 |
| Rated voltage | 450 V (according to IEC 60998-2-2) |
| Stripping length | 10 mm ... 12 mm |
| Connection according to the standard | IEC 60947-7-1 |
| Rigid conductor cross-section | 0.2 mm² ... 6 mm² |
| AWG conductor section | 24 ... 10 (conversion to IEC) |
| Soft conductor section | 0.2 mm² ... 4 mm² |
| Soft Conductor Section [AWG] | 24 ... 12 (IEC conversion) |
| Flexible conductor section (plastic sleeveless tip) | 0.2 mm² ... 4 mm² |
| Flexible conductor section (end cap with plastic sleeve) | 0.2 mm² ... 4 mm² |
| 2 flexible conductors of the same cross-section with TWIN bit and plastic socket | 0.5 mm² ... 1 mm² |
| Int. name. | 32 A |
| Maximum Charging Current | 38 A (bei 6 mm² Leiterquerschnitt starr) |
| Maximum cumulative current | The max. charging current of the individual connection points must not be exceeded. |
| Rated voltage | 800 V |
| Note | IEC 60947-7-1 applies only when fastening accessories are used. |
| Nominal cross-section | 4 mm² |
| Direct Plug Connection Section | |
| Rigid conductor cross-section | 0.5 mm² ... 6 mm² |
| Rigid Conductor Section [AWG] | 20 ... 10 (conversion to IEC) |
| Flexible conductor section (plastic sleeveless tip) | 0.75 mm² ... 4 mm² |
| Flexible conductor section (end cap with plastic sleeve) | 0.5 mm² ... 4 mm² |
| Width | 6.2 mm |
| Height | 28.6 mm |
| Depth | 21.7 mm |
| Color | white (RAL 9010) |
| Flammability class according to UL 94 | V0 |
| Insulation Group | I |
| Insulating material | PA |
| Use of Cold Static Insulation | -60 °C |
| Relative temperature index of insulating material (Elec.; UL 746 B) | 130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for railway vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Surface Flammability NFPA 130 (ASTM E 162) | Successful |
| Specific Optical Flue Gas Density NFPA 130 (ASTM E 662) | Successful |
| Flue Gas Toxicity NFPA 130 (SMP 800C) | Successful |
| Shock Voltage Test | |
| Set value indicator voltage | 9.8 kV |
| Result | Successful test |
| Warm-up test | |
| Requirement for heating control | Temperature Rise ≤ 45 K |
| Result | Successful test |
| Short-term current resistance 4 mm² | 0.48 kA |
| Short-term current resistance 6 mm² | 0.72 kA |
| Result | Successful test |
| Dielectric strength at industrial frequency | |
| Set value indicator voltage | 2 kV |
| Result | Successful test |
| Mechanical characteristics | |
| Open sidewall | No |
| Mechanical strength | |
| Result | Successful test |
| Attachment to the support | |
| Result | Successful test |
| Note | When juxtaposing multiple blocks, the basic elements should be placed in such a way that a maximum of 2 blocks are hung freely between them. The flange elements must be installed every 6 blocks. |
| Depending on the use and mechanical load, it is also possible to choose other arrangements of the mounting accessories. | |
| The PTFIX-NS35 DIN rail adapter is designed for up to 9 blocks. | |
| Investigation of damage and loosening of conductors | |
| Rotational speed | 10 RPM |
| Tours | 135 |
| Conductor/Weight Section | 0.2 mm2/0.2 kg |
| 4 mm2/0.9 kg | |
| 6 mm2/1.4 kg | |
| Result | Successful test |
| Aging | |
| Temperature Cycles | 192 |
| Result | Successful test |
| Needle burner test | |
| Time of action | 30 s |
| Result | Successful test |
| Wideband oscillations/crackles | |
| Control Specification | DIN EN 50155 (VDE 0115-200):2008-03 |
| Spectre | Category 2 service life test, on rotating frame |
| Frequency | f1= 5 Hz to f2= 250 Hz |
| ASD Level | 6.12 (m/s²)²/Hz |
| Acceleration | 3,12g |
| Inspection time per axis | 5 hours |
| Sense of control | X, Y, and Z Axes |
| Result | Successful test |
| Shocks | |
| Control Specification | DIN EN 50155 (VDE 0115-200):2008-03 |
| Shock form | Semi-sinusoidal |
| Acceleration | 30g |
| Duration of shocks | 18 ms |
| Number of shocks in each direction | 3 |
| Sense of control | X, Y and Z axes (pos. and neg.) |
| Result | Successful test |
| Environmental conditions | |
| Ambient Temperature (Operating) | -60 °C ... 110 °C (Operating temperature range, including self-heating, max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a limited period, no more than 24 hours, from -60 to +70 °C) |
| Ambient temperature (mounting) | -5 °C ... 70 °C |
| Ambient temperature (confirmed) | -5 °C ... 70 °C |
| Permissible humidity (operating) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Connection according to the standard | IEC 60998-2-2 |
| IEC 60947-7-1 |
| Mounting Type | Snapping onto the profile adapter |
| Direct mounting with flange | |
| Steering wheel |
| Feature Name | Feature Value |
|---|---|
| Rated current In (EF008250) | 32 A |
| Rated voltage (EF000228) | 800 V |
| Type of electrical connection 1 (EF002526) | Other |
| Type of electrical connection 2 (EF002527) | Other |
| Number of clamp positions per level (EF002660) | 2 |
| Material insulation body (EF007543) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Width (EF000008) | 6.2 mm |
| Height (EF000040) | 28.6 mm |
| Depth (EF000049) | 21.7 mm |
| Closing plate required (EF002525) | No |
| Colour (EF000007) | White |
| Internally connected stages (EF002661) | Yes |
