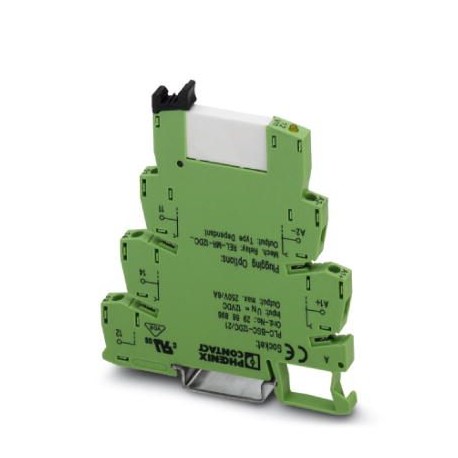

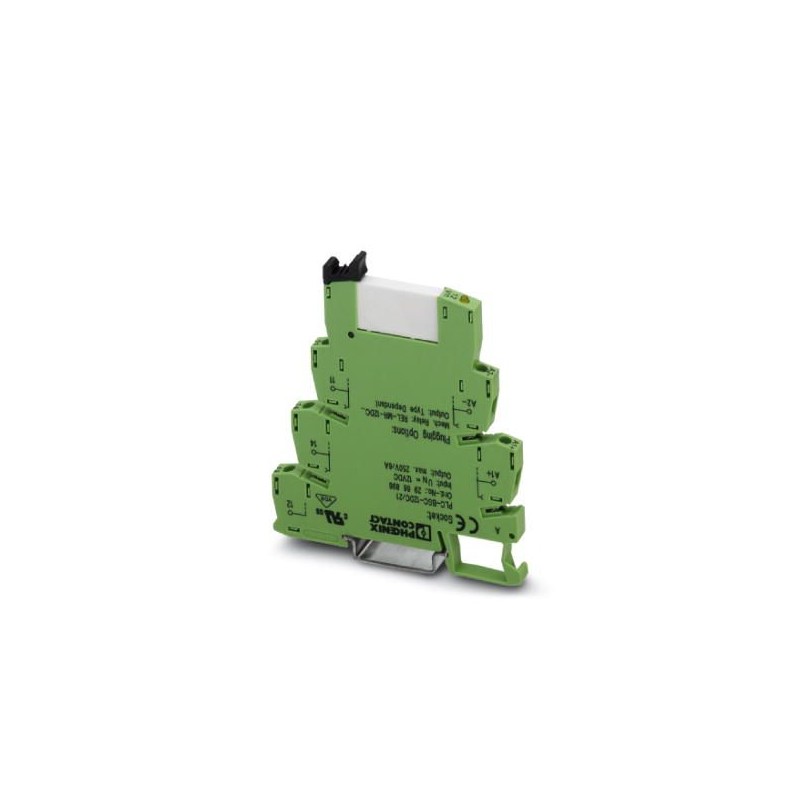

PLC-RSC- 48UC/21AU 2959997 PHOENIX CONTACT INTERFACE PLC, consisting of terminal base PLC-BSC.../21 with con..
PLC-RSC-48UC/21AU
2959997
PHOENIX_CONTACT
500
INTERFACE PLC, consisting of terminal base PLC-BSC.../21 with connection by screw and relay miniature plug-in contact multi-layer, for mounting on a rail of symmetrical NS 35/7,5, 1 change-over contact, input voltage 48 V AC/DC
PLC INTERFACE, consisting of PLC-BSC.../21 base terminal block with screw connection and plug-in miniature relay with multilayer contact, for installation on NS 35/7.5 symmetrical rail, 1 switched contact, input voltage 48 V AC/DC
Relays > Switching relay
Industrial Relays
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Business Data
| Order Code | 2959997 |
|---|---|
| Packaging unit | 10 pcs |
| Note | Made-to-order (no rework) |
| GTIN | 4046356285520 |
| Weight per piece (excluding packaging) | 0.033 KGM |
| Customs Tariff Number | 85364190 |
| Country of origin | DE (Germany) |
Note
| Restriction of Use | EMC: Class A product, see manufacturer's statement in the Downloads section |
|---|
Odds
| Width | 6.2 mm |
|---|---|
| Height | 80 mm |
| Depth | 86 mm |
Environmental conditions
| Ambient Temperature (Operating) | -20 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 60 °C |
Excitement
| Nominal Input Voltage UN | 48 V AC/DC (50/60 Hz) |
|---|---|
| Typical Input Current for UN | 10 mA (for UN= 48 V AC) |
| 9.2 mA (for UN= 48 V DC) | |
| Typical Boot Time | 6 ms |
| Typical fallout time | 15 ms |
| Coil tension | 24 V DC |
| Protection circuit | Rectifier Bridge Rectifier Bridge |
| Operating voltage indicator | Yellow LED |
| Power dissipation under nominal conditions | 0.48 W |
Contact Side
| Contact Type | 1 inverter |
|---|---|
| Type of Switching Contact | Simple contact |
| Contact material | AgSnO, gold-plated |
| Note | If the maximum value indicated is exceeded, the gold layer is damaged. Subsequently, the values of the silver contact will be applied, but a short lifetime must be expected. |
| Maximum switching voltage | 30 V AC |
| 36 V DC | |
| Minimum switching voltage | 100 mV (for 10 mA) |
| Minimum switching current | 1 mA (at 24 V) |
| Maximum inrush current | 50 mA |
| Constant intensity limit | 50 mA |
| Max. crossover power (ohmic load) | 1.2 W (for 24 V DC) |
| Breaking power | 3 A (230 V (AC 15)) |
General
| Test voltage, relay coil/relay contact | 4 kV AC (50 Hz, 1 min) |
|---|---|
| How it works | 100% ED |
| Ingress protection | IP20 |
| Mechanical life | approx. 3x 107Cycles |
| Mounting location | indifferent |
| Mounting tips | Juxtaposable |
| Net Weight (SAP) | 33.16 g |
Entry-side connection features
| Naming connection | Excitement |
|---|---|
| Connection type | Screwed connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Rigid conductor cross-section | 0.14 mm² ... 2.5 mm² |
| Soft conductor section | 0.14 mm² ... 2.5 mm² |
| 0.2 mm² ... 2.5 mm² () | |
| 2x 0.5 mm² ... 1.5 mm² () | |
| Conductive section. AWG | 26 ... 14 |
Standards and specifications
| Connection according to the standard | ASS |
|---|---|
| Standards/Requirements | DIN EN 50178 |
| Rated insulation voltage | 250 V AC |
| 250 V AC | |
| Rated shock voltage | 4 kV |
| Insulation | Basic Insulation |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Period of Compliant Use (PFU): 50 years |
| The manufacturer's declaration in the "Downloads" tab contains detailed information about hazardous substances. |
Classifications
eCl@ss
| eCl@ss 5.0 | 27371601 |
|---|---|
| eCl@ss 5.1 | 27371600 |
| eCl@ss 6.0 | 27371600 |
| eCl@ss 7.0 | 27371601 |
| eCl@ss 8.0 | 27371601 |
| eCl@ss 9.0 | 27371601 |
ETIM
| ETIM 2.0 | EC001437 |
|---|---|
| ETIM 3.0 | EC001437 |
| ETIM 4.0 | EC001437 |
| ETIM 5.0 | EC001437 |
| ETIM 6.0 | EC001437 |
UNSPSC
| UNSPSC 6.01 | 30211916 |
|---|---|
| UNSPSC 7.0901 | 39121515 |
| UNSPSC 11 | 39121515 |
| UNSPSC 12.01 | 39121515 |
| UNSPSC 13.2 | 39122334 |
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Screw connection |
| Complete with socket (EF003359) | Yes |
| With detachable clamps (EF003340) | No |
| With LED indication (EF005950) | Yes |
| Rated control supply voltage AC 50 Hz (EF003978) | 38 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 38 V |
| Rated control supply voltage DC (EF003980) | 38 V |
| Voltage type for actuating (EF008242) | AC/DC |
| Drive, polarization (EF003355) | Polarized |
| Drive, switching attitude (EF003356) | Mono stable |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as change-over contact (EF008257) | 1 |
| Type of switch contact (EF003358) | Single contact |
| With forced-guided contacts (EF003357) | No |
| Material of contact insert (EF008521) | Other |
| Material of contact surface (EF004020) | Gold |
| Nominal current (EF000001) | 0.01 A |
| Degree of protection (IP) (EF005474) | IP20 |
| Width (EF000008) | 6.2 mm |
| Height (EF000040) | 80 mm |
| Depth (EF000049) | 86 mm |
