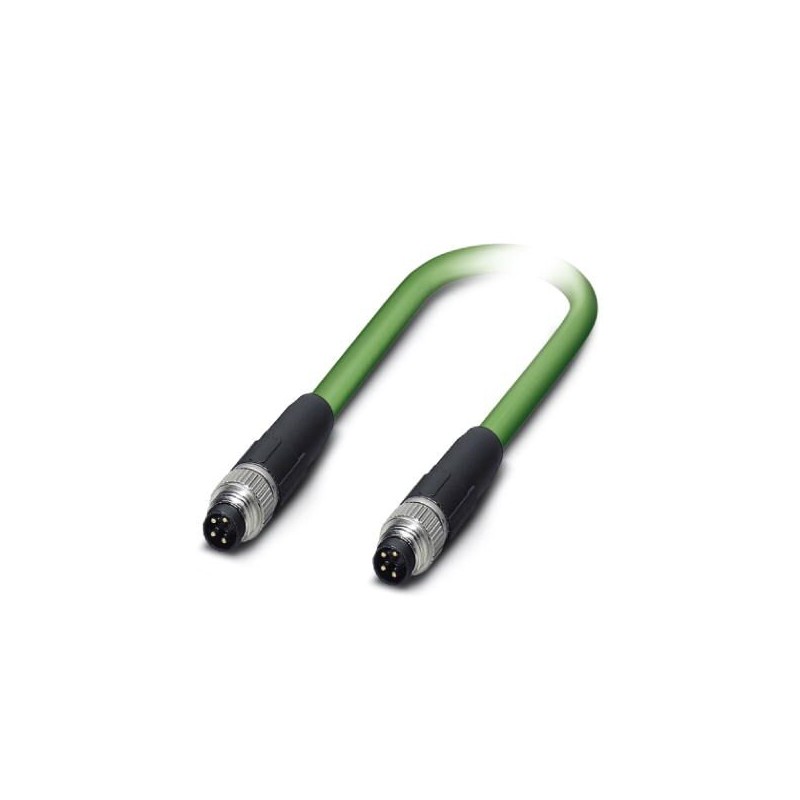

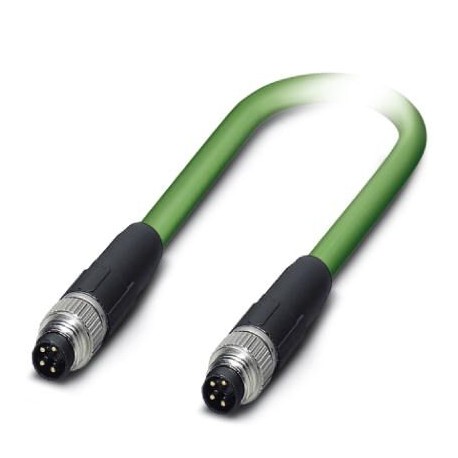

NBC-M 8MS/ 8,0-93C/M 8MS 1426305 PHOENIX CONTACT Network Cable, Ethernet (100 mbps), PROFINET (100 mbps), Et..
NBC-M 8MS/ 8,0-93C/M 8MS
1426305
PHOENIX_CONTACT
25
Product on demand only, returns will not be accepted.
Network Cable, Ethernet (100 mbps), PROFINET (100 mbps), EtherCAT® (100 mbps), 4-pole, PUR/FRNC halogen-free, green RAL 6018, shielded, Plug straight M8 / IP67, coding: A, on Plug straight M8 / IP67, coding: A, cable length: 8 m
Network cable, Ethernet (100 MBit/s), PROFINET (100 MBit/s), EtherCAT® (100 MBit/s), 4-pole halogen-free, shielded, M8 straight connector, encoding: A/IP67, a M8 straight connector, coding: A/IP67, cable length: 8 m
Sensors > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Network cable, Ethernet (100 Mbps), PROFINET (100 Mbps), EtherCAT®(100 Mbps), 4-a, Sz., PUR/FRNC halogen-free, green RAL 6018, shielded., Plug straight M8 / IP67, mechanical keys: A, to Plug straight M8 / IP67, mechanical keys: A, cable length: 8 m
Commercial data
| Order code | One million four hundred twenty six thousand three hundred five |
|---|---|
| Packaging unit | One |
| GTIN | Four trillion fifty five billion six hundred twenty six million four hundred fifty eight thousand thirty eight |
Dimensions
| Cable length | 8 m |
|---|
Ambient conditions
| Ambient temperature (operating) | -25 °C ... 90 °C (plug / socket) |
|---|
General characteristics
| Rated current at 40 ℃ | 4 A |
|---|---|
| Rated voltage | 30 V AC |
| 30 V DC | |
| Poles | Four |
| Signal type/category | Ethernet, 100 Mbit/s |
| PROFINET 100 Mbit/s | |
| EtherCAT®, 100 Mbit/s | |
| Standards/normative documents | M8 connector IEC 61076-2-104 |
| Material, contact | CuSn |
| The material holder contact | TPU GF |
| Material contact surface | Ni/Au |
Parameters head 1
| Performance head | Plug straight M8 / IP67 |
|---|---|
| Number of contacts (interface) | Four |
| Coding | A (Standard) |
| Color | black |
| Material (components) | CuSn (Contact) |
| Ni/Au (contact Surface) | |
| TPU GF (contact Holder) | |
| TPU, flame-retardant., self-extinguishing (Body handle) | |
| Cast under pressure. zinc, Nickel-plated (Screw elements) | |
| Insulation resistance | ≥ 100 MΩ |
| Cycles installation | ≥ 100 |
| Tightening torque | 0.2 Nm |
| Ambient temperature (operating) | -25 °C ... 90 °C |
Parameters head 2
| Performance head | Plug straight M8 / IP67 |
|---|---|
| Number of contacts (interface) | Four |
| Coding | A (Standard) |
| Color | black |
| Material (components) | CuSn (Contact) |
| Ni/Au (contact Surface) | |
| TPU GF (contact Holder) | |
| TPU, flame-retardant., self-extinguishing (Body handle) | |
| Cast under pressure. zinc, Nickel-plated (Screw elements) | |
| Insulation resistance | ≥ 100 MΩ |
| Cycles installation | ≥ 100 |
| Tightening torque | 0.2 Nm |
| Ambient temperature (operating) | -25 °C ... 90 °C |
Standards and regulations
| The designation of the standard | Connector M8 |
|---|---|
| Standards / normative documents | IEC 61076-2-104 |
Cable
| Marking of article | "sequential length in metres" PN-CABLE-934-C / PUR-4X22AWG/7 Trailing * 22AWG (SHIELDED) (UL) E119100 CMX 75°C VERIFIED (UL) CAT 5E PATCH CABLE FRNC * (Marking of the cables supplier) |
|---|---|
| Cable type | PROFINET, the conveyor chain, CAT5 |
| Cable type (short designation) | 93C |
| Signal type/category | PROFINET CAT5 (IEC 11801), 100 Mbps |
| EtherCAT®CAT5 (IEC 11801), 100 Mbps | |
| Cable design | 1x4xAWG22/7; SF/TQ |
| Wire cross-section | 4x 0.34 mm2 |
| AWG signal line | Twenty two |
| Cable design, the signal line | 7x 0.25 mm |
| Conductor diameter incl. insulation | 1.5 mm |
| Color lived | white, yellow, blue, orange |
| General twisting | Four star twists |
| Screening | Film covered with the aluminum braid of tinned copper wires |
| the protective shield of the fiber optic cable | 85 % |
| Outer shell, color | green RAL 6018 |
| The wall thickness of the outer shell | about 0.9 mm |
| Outer diameter of cable D | 6.5 mm ±0.2 mm |
| Minimum bending radius, rigid strip | 5 x D |
| Minimum bending radius, flexible strip | 7,5 x D |
| The number of bending cycles | Three million |
| Bending radius | 100 mm |
| Travel | 10 m |
| The speed of lateral movement | 4 m/c |
| Acceleration | 4 m/S2 |
| The load on the torsion | ± 30 °/m |
| The tensile strength of GRP | ≤ 150 N |
| Weight of cable | 61 kg/km |
| Outer sheath, material | PUR |
| The material of the inner shell | FRNC |
| Material conductor insulation | PE |
| Conductor material | flexible wire made from galvanized copper |
| Insulation resistance | ≥ 500 MΩ*km |
| Loop resistance | ≤ 120,00 Ohm/km |
| Impedance | 100 Ω ±15 Ω (1 ... 100 MHz) |
| Crosstalk (NEXT) | 80 dB (at 1 MHz) |
| 76 dB (at 4 MHz) | |
| 70 dB (at 10 MHz) | |
| 65 dB (at 16 MHz) | |
| 63 dB (at 20 MHz) | |
| 60 dB (at 31,25 MHz) | |
| 55 dB (at 62,5 MHz) | |
| 50 dB (at 100 MHz) | |
| The weakening | 2.1 dB (at 1 MHz) |
| 4 dB (at 4 MHz) | |
| 6.3 dB (at 10 MHz) | |
| 8 dB (at 16 MHz) | |
| 9 dB (at 20 MHz) | |
| 11.4 dB (at 31,25 MHz) | |
| 16,5 dB (with 62.5 MHz) | |
| Of 21.3 dB (at 100 MHz) | |
| The speed of the signal | 0,66 c |
| The propagation time of the signal | 5,3 NSm/m |
| The resistance of the interface | ≤ 20,00 mω/m (at 10 MHz) |
| Nominal voltage, conductor | 600 V (UL Nominal) |
| Test voltage phase / phase | 2000 V (50 Hz, 1 min.) |
| Test voltage phase / screen | 2000 V (50 Hz, 1 min.) |
| Other characteristics | Electrical characteristics according to EN 50288-2-2 |
| Incombustibility | according to IEC 60332-1-2 |
| Halogen-free | Yes |
| Oil resistant | in accordance with DIN EN 60811-2-1 |
| Vitality, other data | resistant to UV radiation |
| Ambient temperature (operating) | -40 °C ... 70 °C (cable firmly laid) |
| -40 °C ... 70 °C (cable, for flexible installation) | |
| Ambient temperature (with the gasket) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -50 °C ... 70 °C |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | The time period for use (EFUP) of 50 years |
| Information on hazardous substances is given in the manufacturer's Declaration in tab "Download" |
Classification
eCl@ss
| eCl@ss 7.0 | Twenty seven million sixty thousand three hundred eight |
|---|---|
| eCl@ss 9.0 | Twenty seven million sixty thousand three hundred eight |
ETIM
| ETIM 7.0 | EC001262 |
|---|
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 4 |
| Type of electrical connection, field-sided (EF005525) | M8 |
| Type of plug-in contact, field sided (EF006269) | Male (plug) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | M8 |
| Type of plug-in contact, box-sided (EF008386) | Male (plug) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 8 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | Yes |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | Other |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -40 °C |
| Rated current In (EF008250) | 4 A |
| Rated voltage (EF000228) | 30 V |
| Degree of protection (IP) (EF005474) | IP67 |
