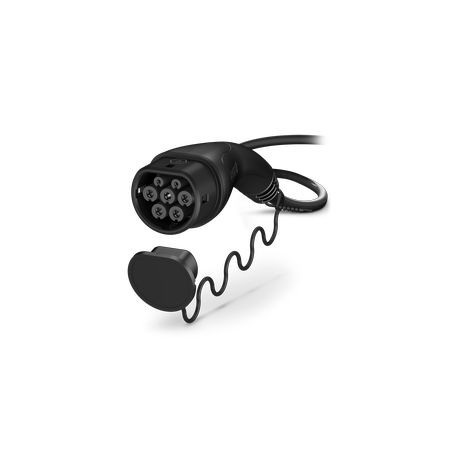

CHARX ET2C-3AC20-10,0MES00P 1526074 PHOENIX CONTACT CHARX connect eco, Type 2, AC charging cable, 20 A perma..
CHARX ET2C-3AC20-10,0MES00P
1526074
PHOENIX_CONTACT
80
CHARX connect eco, Type 2, AC charging cable, 20 A permanent, 480 V AC, with vehicle charging connector and open cable end, cable: 10 m, black, straight, with cap, PHOENIX CONTACT logo, IEC 62196-2, for charging electric vehicles (EV) with alternating current (AC)
CHARX connect, AC Charging Cables
CHARX connect eco, AC charging cable, with vehicle charging connector and open cable end, for charging electric vehicles (EV) with alternating current (AC), with protective cap, Type 2, IEC 62196-2, 20 A / 480 V (AC), PHOENIX CONTACT logo, cable: 10 m, black, straight
Industrial socket/plug applications > Charging cable E-Mobility
E-Mobility
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | AC charging cable |
| Product family | CHARX connect eco |
| Application | for charging electric vehicles (EV) with alternating current (AC) |
| compatible with type 2 infrastructure charging sockets at charging stations for electromobility (EVSE) | |
| Type | AC charging cable |
| with vehicle charging connector and open cable end | |
| Design | with protective cap |
| Affixed logo | PHOENIX CONTACT logo |
| Charging mode | Mode 3, Case C |
| Charging standard | Type 2 |
| Type of signal transmission | Pulse width modulation |
| Note on the connection method | Crimp connection, cannot be disconnected |
| Coding | 680 Ω (between PE and PP) |
| Type of charging current | AC 3-phase |
| Charging power | 16.63 kW |
| Charging current | 20 A |
| Power contact | |
| Number | 5 (L1, L2, L3, N, PE) |
| Rated voltage | 480 V |
| Rated current | 20 A |
| Signal contact | |
| Number | 2 (CP, PP) |
| Rated voltage | 30 V AC |
| Rated current | 2 A |
| Cross section AWG | (converted acc. to IEC) |
| Vehicle charging connector | |
| Dimensional drawing |  |
| Width | 70.4 mm |
| Height | 82.3 mm |
| Depth | 201.8 mm |
| Color (Housing) | black (9005) |
| Color (Handle area) | black (9005) |
| Color (Mating face) | black (9005) |
| Color (Protective cap) | black (9005) |
| Color (Cable) | black (9005) |
| Material (Vehicle charging connector) | Plastic |
| Material (Cable outer sheath) | TPE-U |
| Material (Contact surface) | Silver |
| Cable length | 10 m |
| Wiring standards/regulations | prEN 50620/DIN EN 50620 |
| Wiring certifications | VDE |
| Cable weight | max. 193 kg/km |
| Cable type | Class 5 |
| Cable type | straight |
| Cable structure | 5 x 1.5 mm² + 1 x 0.5 mm² |
| External cable diameter | 11.55 mm ±0.35 mm |
| Outer sheath, material | TPE-U |
| Cable resistance | ≤ 0.011324 Ω/m (based on a power core, at an ambient temperature of 20°C) |
| Bending radius | min. 86.625 mm (7.5x diameter) |
| Mechanical data | |
| Insertion/withdrawal cycles | > 10000 |
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
| Ambient conditions | |
| Degree of protection (Vehicle charging connector) | IP44 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) |
| Degree of protection (Protective cap) | IP54 |
| Ambient temperature (operation) | -40 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | max. 5000 m (above sea level) |
| Standards | |
| Standards/regulations | IEC 62196-2 |
| Feature Name | Feature Value |
|---|---|
| Type of current (EF000143) | AC 3-phase |
| Number of communication conductors (EF009317) | 2 |
| Type vehicle side (EF009318) | Type 2 |
| Type infrastructure side (EF009319) | Free conductor end |
| With Incable Control Box (ICCB) (EF009320) | No |
| Charging mode (EF009321) | Mode 3 |
| Nominal current (EF000001) | 20 A |
| Nominal voltage (EF000002) | 480 V |
| With temperature sensor (EF006034) | No |
| Cable length (EF000536) | 10 m |
| Cable type (EF000081) | Straight |
| Contact material (EF004019) | Other |
| Surface treatment contacts (EF002558) | Other |
