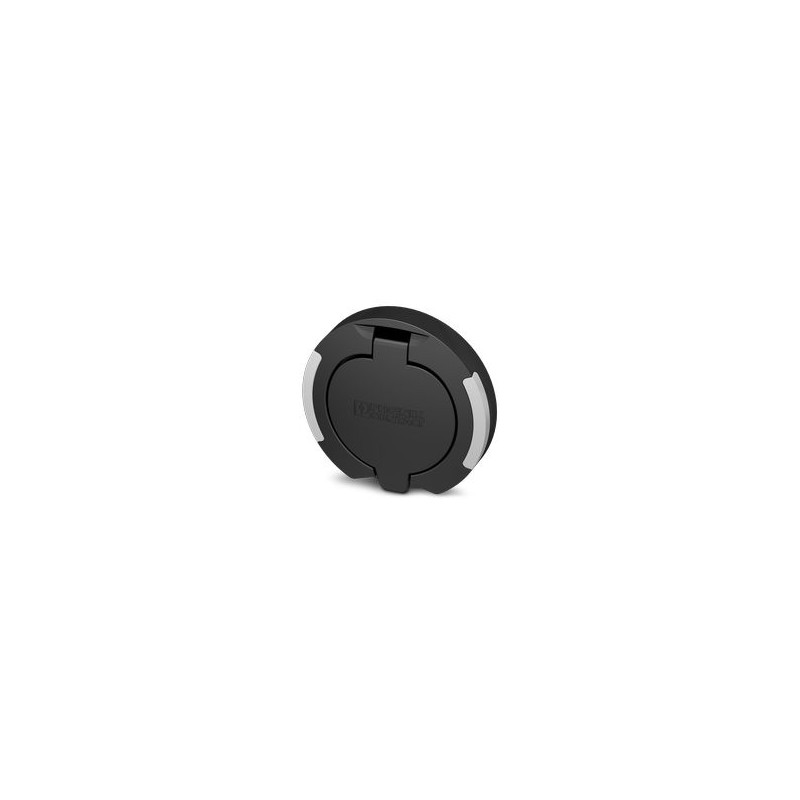

EV-T2SOCR-PC 1347426 PHOENIX CONTACT CHARX connect modular, Protective cover, round, Accessories, Premium, w..
EV-T2SOCR-PC
1347426
PHOENIX_CONTACT
CHARX connect modular, Protective cover, round, Accessories, Premium, with self-closing mechanism, With LED (common cathode connection), for installation in infrastructure sockets, Type 2, IEC62196-2, Front wall mounting, M5 thread, Engraved PHOENIX CONTACT logo
E-Mobility
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Design (Protective Cap) | round |
| Product Type | Protective cover for infrastructure cargo box |
| Product Family | CHARX connect modular |
| application | for placement in infrastructure outlets |
| Execution | accessories |
| Premium | |
| Components | with self-closing mechanism |
| With LED (Common Cathode Connection) | |
| Compatibility | Shutter compatible, see accessories |
| Logo Placed | Engraved PHOENIX CONTACT logo |
| Charging Standard | Type 2 |
| Charging Mode | Mode 3, Case B |
| LED Function | |
| application | To indicate the state of charge |
| Position | In the frame of the protective cap |
| Connection variant | Common cathode |
| AWG Conductor Section | (Converted according to IEC) |
| Protective cap | |
| Dimension Scheme |  |
| Depth | 22.9 mm |
| Diameter | 109.2 mm |
| Drill Dimensions | |
| Dimension Scheme |  |
| Width | 60 mm |
| Height | 60 mm |
| Color (Protective Cap) | Black (9005) |
| Material (Protective Cap) | Plastic |
| Cap Movement Type | Self-closing |
| Environmental conditions | |
| Protection Index (Protective Cap) | IP54 |
| IK08 | |
| Ambient Temperature (Service) | -30 °C ... 50 °C |
| Ambient Temperature (Storage/Transport) | -40 °C ... 80 °C |
| Altitude | 5000 m (above sea level) |
| Standards | |
| Standards/Specifications | IEC 62196-2 |
| Mounting Type: Protective Cap | Front mount (screw connection on the back) |
| Fixing screws | M5 thread |
