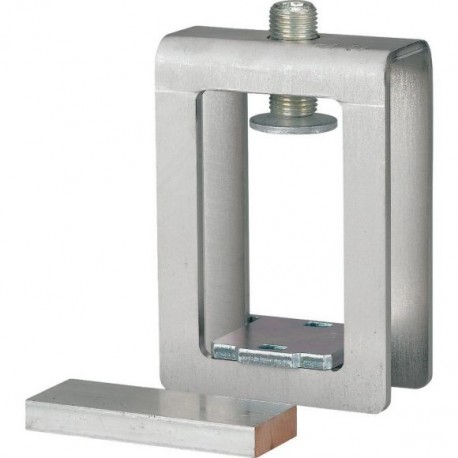

AKP800 107198 2465036 EATON ELECTRIC Profile terminal 41x20-42 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

AKP800 107198 2465036 EATON ELECTRIC Profile terminal 41x20-42

AKP800

107198

2465036

EATON-MOELLER

Profile terminal 41x20-42

AKP800

Eaton xEffect SASY 60i Enclosures Switch- & Controlgear Enclosure. Profile terminal 41x20-42

More details


Low-voltage industrial components > Busbar terminal

Connection Accessories for Enclosures

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total price: $104.99
Unit price: $104.99

Quantity Price
1+$104.99
2+$90.01
3+$83.92
4+$83.81
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


General specifications

Product Name
Eaton xEffect SASY 60i busbar terminal
Catalog Number
107198
Model Code
AKP800
EAN
4015081069613
Product Length/Depth
72 mm
Product Height
118 mm
Product Width
45 mm
Product Weight
0.66 kg
Compliances
UL CSA09 (refer to approbation report)
RoHS conform
Certifications
North America (UL listed, CSA certified)
CE marking
CSA-C22.2 No. 14
CSA (Class No. 3211-37)
UL (Category Control Number NMTR2, NMTR8)
UL (File No. E307559)
IEC 60439-1
CSA (File No. 236217)
UL508A

Delivery program

Type

Technical data - electrical

Voltage rating (UL CSA 13)
Max. 600 V AC
Rated operation current (Ie)
1600 A
Rated operational current
1600 A
Rated operational current (Ie) - max
1600 A

Technical data - mechanical

Degree of protection
UL508A; CSA-C22.2 No. 14; IEC 60439-1; CE marking
Feeder circuits
Busbar thickness - min
40 mm
Busbar thickness - max
40 mm
Busbar width - min
30 mm
Busbar width - max
30 mm
Terminal capacity (conductor)
800 mm² (Cu band)
20 mm - 42 mm (41x)
Conductor cross section - max
800 mm²
Width clamp
72 mm

Additional information

Functions
Current limiting circuit breaker, refer to approbation report
Connections
Profile terminal
Special features
  • Termination to busbars without drilling
  • Put a spacer between the laminated copper busbars when connecting in parallel
Suitable for
Strip conductor connection
T-rail
Used with
Feeder circuits
Double T profile
Connection
185 mm system
60 mm system

Datasheet - PDF

▲
Title: Size: Type:
AKP800 2465036 107198 ES_107198.pdf 139 Kbytes AKP800 2465036 107198 ES_107198.pdf
