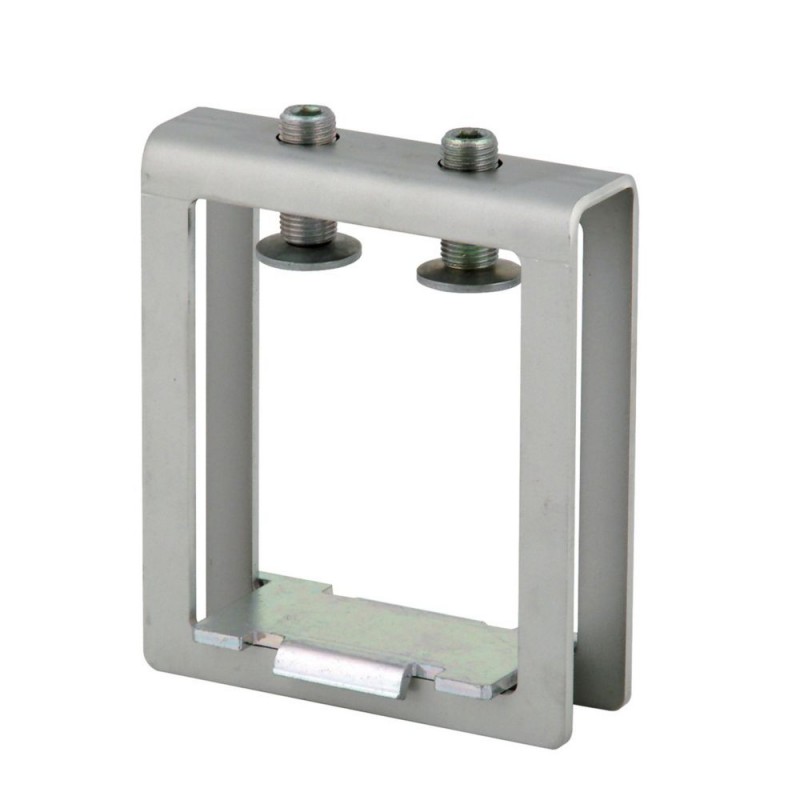

AKP3600 138369 Y7-138369 EATON ELECTRIC Terminal for busbar 101x45 mm
AKP3600
138369
Y7-138369
EATON-MOELLER
Terminal for busbar 101x45 mm
AKP3600
Eaton xEffect SASY 60i Enclosures Switch- & Controlgear Enclosure. Profile terminal 101x45 mm
Profile terminal, termination to busbars without drilling, put a spacer between the laminated copper busbars when connecting in parallel, 3600mm², terminal area, 101x23-45, width 132mm, Ie=3200 A, can be used for double T profile, 60 mm system, 185 mm system
Low-voltage industrial components > Busbar terminal
Connection Accessories for Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Delivery program
Technical data - electrical
Technical data - mechanical
3600 mm² (Cu band)
Additional information
Profile terminal
- Termination to busbars without drilling
- Put a spacer between the laminated copper busbars when connecting in parallel
Strip conductor connection
Connection
185 mm system
60 mm system
| Feature Name | Feature Value |
|---|---|
| Busbar thickness (EF007220) | 40 mm |
| Busbar width (EF007219) | 30 mm |
| Suitable for (EF000073) | T-rail |
| Width clamp (EF007092) | 132 mm |
| Max. conductor cross section (EF004969) | 3600 mm² |
| Max. rated operation current Ie (EF007356) | 3200 A |
| Suitable for round conductor connection (EF007258) | No |
| Suitable for sector conductor connection (EF007260) | No |
| Suitable for strip conductor connection (EF007242) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| AKP3600 Y7-138369 138369 EN_138369.pdf | 106 Kbytes |
|
