SAC-5PM12MS/0,64-92X/M12FSSHOD 1570226 PHOENIX CONTACT Cabo do sistema de ônibus
SAC-5PM12MS/0,64-92X/M12FSSHOD
1570226
PHOENIX_CONTACT
50
Cabo do sistema de ônibus

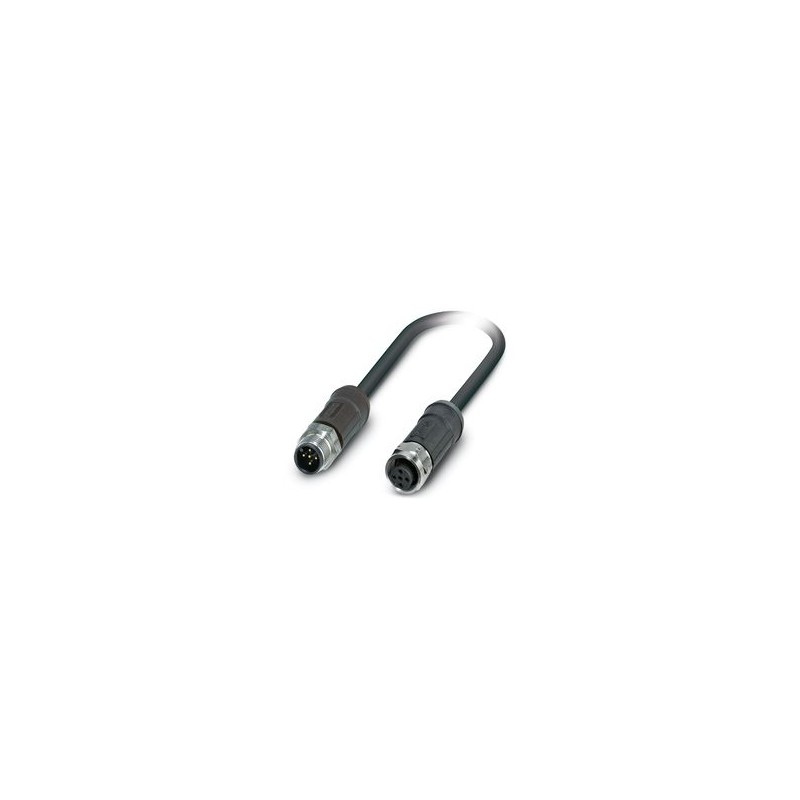

Bus system cable, CANopen®, DeviceNet™, 5-position halogen-free, shielded, Plug straight M12, coding: A, on Socket straight M12, coding: A, cable length: 0.64 m, for outdoor applications, with high-grade steel knurl
Cabos, sensores e atuadores
* Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Related products
▲Mais informação
▲Dados técnicos
Product properties
| Product type | Data cable preassembled |
| Sensor type | CANopen® |
| Number of positions | 5 |
| Application | External areas |
| No. of cable outlets | 1 |
| Shielded | yes |
| Coding | A |
| Insulation characteristics | |
| Degree of pollution | 3 |
Interfaces
| Bus system | CANopen®/DeviceNet™ |
| Signal type/category | CANopen® |
| DeviceNet™ |
Signaling
| Status display | No |
| Status display present | No |
Electrical properties
| Contact resistance | ≤ 5 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 48 V AC |
| 60 V DC | |
| Nominal current IN | 4 A |
| Protective circuit | unwired |
| Transmission medium | Copper |
Mechanical properties
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 100 |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Seal material | FPM |
| Material of grip body | PP |
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | PP |
| Material for screw connection | Stainless steel |
Connector
| Connection 1 | |
| Type | Plug straight M12 |
| Number of positions | 5 |
| Coding type | A (Standard) |
| Connection 2 | |
| Type | Socket straight M12 |
| Number of positions | 5 |
| Coding type | A (Standard) |
Cable/line
| Cable length | 0.64 m |
| CANopen®/DeviceNet™ outdoor installation, FRNC, black [92X] | |
| Desenho cotado |  |
| Shielded | yes |
| UL AWM Style | 21281 (80°C/300 V) |
| Cable weight | 70 kg/km |
| Cable type | CANopen®/DeviceNet™ outdoor installation, FRNC, black |
| Short symbol | LI2XCHX02XS |
| Cable type (abbreviation) | 92X |
| Signal type/category | CANopen® |
| DeviceNet™ | |
| Cable structure | 2xAWG24/19+2xAWG22/19 |
| External cable diameter | 6.9 mm ±0.3 mm |
| Outer sheath, material | FRNC |
| External sheath, color | black |
| Thickness, outer sheath | 1.15 mm |
| Conductor material | Tin-plated Cu litz wires |
| Conductor structure signal line | 19x 0.13 mm |
| AWG signal line | 24 |
| Conductor structure, voltage supply | 19x 0.16 mm |
| Conductor cross section | 2x 0.25 mm² (Signal) |
| AWG power supply | 22 |
| Material wire insulation | PE |
| Thickness, insulation | 0.6 mm (Signal) |
| Wire diameter incl. insulation | 1.9 mm (Signal) |
| 1.4 mm (Power) | |
| Single wire, color | red-black, blue-white |
| Twisted pairs | 2 cores to the pair |
| Type of pair shielding | Aluminum-lined foil |
| Overall twist | 2 pairs around a drain wire in the center to the core |
| Shielding | Tinned copper braided shield |
| Optical shield covering | 70 % |
| Nominal voltage, cable | ≤ 300 V |
| Test voltage Core/Core | 2000 V (50 Hz, 1 min.) |
| Test voltage Core/Shield | 2000 V (50 Hz, 1 min.) |
| Cable resistance | 90 Ω/km (Signal) |
| 55 Ω/km (Power) | |
| Cable insulation resistance | ≥ 200 MΩ*km (at 20 °C) |
| Wave impedance | 120 Ω ±12 Ω (f = 1 MHz) |
| Working capacitance | 39.8 nF (at 1 kHz, core/core) |
| Signal runtime | 4.46 ns/m |
| Minimum bending radius, fixed installation | 5 x D |
| Minimum bending radius, flexible installation | 10 x D |
| Halogen-free | yes |
| Resistance to oil | yes |
| Flame resistance | According to IEC 60332-3-25 (Cat. D) |
| Other resistance | UV resistant |
| Ambient temperature (operation) | -40 °C ... 105 °C |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65 |
| IP67 | |
| Ambient temperature (operation) | -40 °C ... 105 °C (Plug / socket) |
| -40 °C ... 85 °C (On sudden changes in temperature (according to IEC 60512-11-4)) | |
Standards and regulations
| M12 | |
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-101 |
