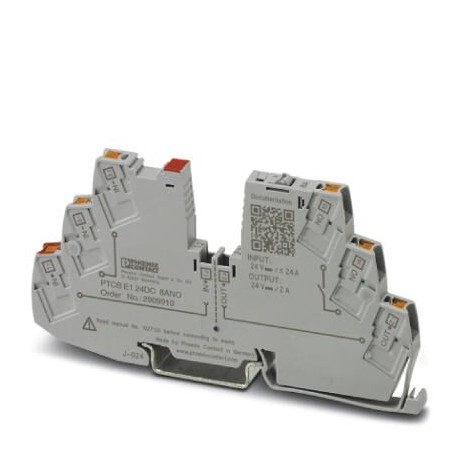

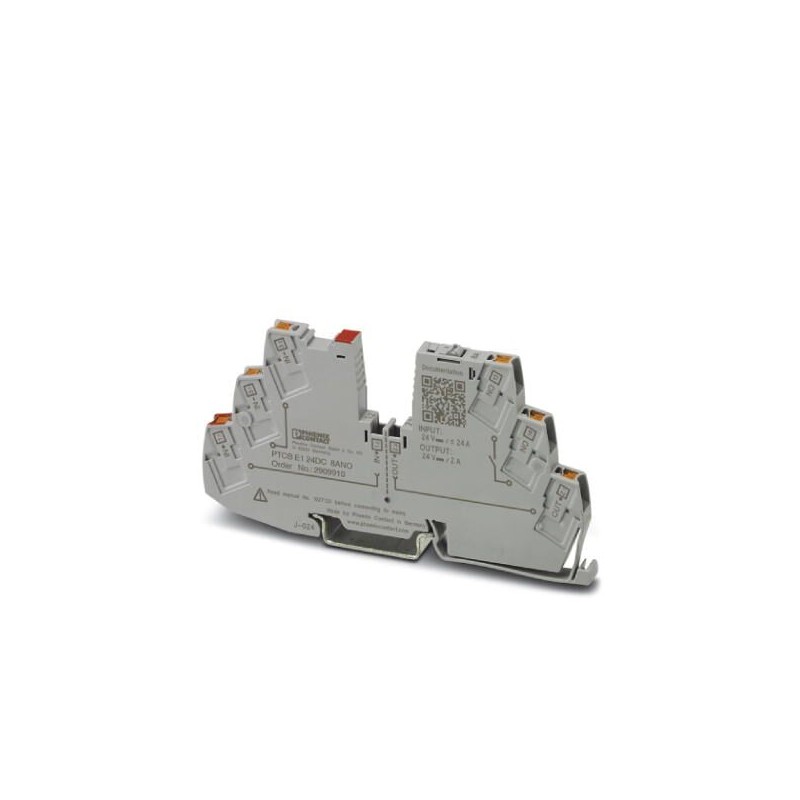

PTCB E1 24DC/8A NO 2909910 PHOENIX CONTACT Único-canal eletrônico de disjuntor para proteção de 24 V DC carr..
PTCB E1 24DC/8A NO
2909910
PHOENIX_CONTACT
Único-canal eletrônico de disjuntor para proteção de 24 V DC carrega contra sobrecarga e curto-circuito. Simples potencial de distribuição usando componentes do CLIPLINE complete bloco de terminais do sistema. Fixa com corrente nominal. Para instalação em trilhos DIN.
Interruptor eletrônico para proteção de equipamentos monocanal para proteger os consumidores em 24 V DC em caso de sobrecarga e curto-circuito. Fácil distribuição de potencial com os componentes do sistema de bornes CLIPLINE complete. Com corrente nominal fixa. Para instalação em trilhos DIN.
Single-channel electronic circuit breaker for protecting 24 V DC loads against overload and short circuit. Simple potential distribution using components from the CLIPLINE complete terminal block system. With fixed nominal current. For installation on DIN rails.
Disjuntores, fusíveis > Disjuntor
Proteção de surtos
Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Related products
▲Best sellers
▲Mais informação
▲Dados comerciais
| Chave de encomenda | 2909910 |
|---|---|
| Quantidade de embalagem | 1 UNID |
| Página de catálogo | Página 379 (C-4-2019) |
| GTIN (EAN) | 4055626408774 |
| Peso por unidade (exclusive embalagem) | 27,640 g |
| Número do imposto alfandegário | 85363010 |
| País de origem | DE (Alemanha) |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Humidity test | 96 h, 95 % RH, 40 °C |
| Altitude | ≤ 3000 m up to 52 °C (amsl (above mean sea level)) |
| ≤ 4000 m up to 46 °C (amsl (above mean sea level)) | |
| Shock (operation) | 30g (IEC 60068-2-27, Test Ea) |
| Vibration (operation) | 10 Hz ... 59.6 Hz (Amplitude ±0.35 mm; in accordance with IEC 60068-2-6, Test Fc) |
| 59.6 Hz … 150 Hz (Acceleration 5g; in accordance with IEC 60068-2-6, Test Fc) | |
| Degree of protection | IP20 |
General
| Flammability rating according to UL 94 | V-0 |
|---|---|
| Mounting type | DIN rail: 35 mm |
| Color | traffic grey A RAL 7042 |
| Number of positions | 1 |
| Protection class | III |
| Type | DIN rail module, one-piece |
Electrical data
| Fuse type | electronic |
|---|---|
| Rated surge voltage | 0.5 kV |
| Operating voltage | 18 V DC ... 30 V DC |
| Rated voltage | 24 V DC |
| Rated current IN | 24 A DC (Total current input) |
| 8 A DC (Rated current output) | |
| Measuring tolerance I | ± 15 % |
| Feedback resistance | max. 35 V DC |
| Fail-safe element | 15 A DC |
| Efficiency | > 99 % |
| Closed circuit current I0 | typ. 12 mA |
| Power dissipation | typ. 0.3 W (No-load operation) |
| < 1.6 W (Nominal operation) | |
| Module initialization time | 1 s |
| Waiting time after switch off of a channel | 5 s (at overload / short circuit) |
| Temperature derating | 21 A (Total current at 60°C) |
| 24 A (Total current at 50°C) | |
| 7 A (Channel current at 60°C) | |
| 8 A (Channel current at 50°C) | |
| Tripping method | E (electronic) |
| Required backup fuse | not required, integrated failsafe element |
| Dielectric strength | max. 35 V DC (Load circuit) |
| Voltage drop | 0.13 V (at 8 A) |
| MTBF (IEC 61709, SN 29500) | 25641025 h (at 25°C with 21% load) |
| 10989010 h (at 40°C with 34.25% load) | |
| 1149425 h (at 60°C with 100% load) | |
| Shutdown time load circuit | ≤ 10 ms (for short circuit > 2.0 x IN) |
| 1 s (1.2 ... 2.0 x IN) | |
| Undervoltage shutdown load circuit | ≤ 17.8 V DC (active) |
| ≥ 18.8 V DC (inactive) | |
| Surge voltage shutdown load circuit | ≥ 30.5 V DC (active) |
| ≤ 29.5 V DC (inactive) | |
| Max. capacitive load load circuit | 35000 µF (Depending on the available short-circuit current) |
Remote indication contact
| Connection name | Remote indication circuit |
|---|---|
| Switching function | N/O contact |
| Stripping length | 10 mm |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 14 |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.2 mm² ... 2.5 mm² |
| DC operating voltage | 0 V DC ... 30 V DC |
| DC operating current | 100 mA DC |
Signaling
| Channel LED off | off (Channel switched off) |
|---|---|
| Channel LED green | lit (Channel switched on) |
| Channel LED yellow | lit (Channel switched on, channel load > 80% ) |
| flashing (Programming mode active) | |
| Channel LED red | lit (Channel switched off, over- or undervoltage active) |
| ON temporarily (Channel switched off, 5 s cool-down phase, overload or short-circuit release) | |
| flashing (Channel switched off, ready to be switched back on, overload or short-circuit release) | |
| flashing quickly (Channel switched off, external voltage at the output, possible installation error) |
Connection data
| Connection name | Main circuit IN+ |
|---|---|
| Connection method | Push-in connection |
| Stripping length | 10 mm |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.2 mm² ... 2.5 mm² |
| Connection name | Main circuit IN- |
| Connection method | Push-in connection |
| Stripping length | 10 mm |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.2 mm² ... 2.5 mm² |
| Connection name | Main circuit OUT |
| Connection method | Push-in connection |
| Stripping length | 10 mm |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.2 mm² ... 2.5 mm² |
Standards and Regulations
| Standards/specifications | EN 61000-6-2 |
|---|---|
| EN 61000-6-3 | |
| EN 60068-2-78 | |
| EN 50178 | |
| EN 60068-2-6 | |
| EN 60068-2-27 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classificações
eCl@ss
| eCl@ss 4.0 | 27141100 |
|---|---|
| eCl@ss 4.1 | 27141100 |
| eCl@ss 5.0 | 27141100 |
| eCl@ss 5.1 | 27141100 |
| eCl@ss 6.0 | 27141100 |
| eCl@ss 7.0 | 27141116 |
| eCl@ss 8.0 | 27141116 |
| eCl@ss 9.0 | 27141116 |
| Característica | Valor |
|---|---|
| Classe de inflamabilidade do material de selagem de acordo com UL 94 (EF002521) | Outro |
| Número de polos (EF001391) | 1 |
| Largura (EF000008) | 6.2 mm |
| Altura (EF000040) | 105.8 mm |
| Profundidade (EF000049) | 55.6 mm |
| Método de montagem (EF000003) | Outro |
| Tensão de funcionamento (EF000111) | 30 V |
| Corrente nominal (EF000001) | 24 A |
| Limitação de corrente ativa x IN (EF011922) | 0 |
| Tipo de fusível (EF011923) | Eletrónico |
| Dispositivo de segurança (EF011924) | 15 A |
| Tempo de inatividade (EF011925) | 0.01 ms |
| Capacidade de carga max. (EF011926) | 0.025 µF |
| Com contato de sinalização remota (EF000422) | Sim |
| Temperatura ambiente durante a operação (EF007515) | -30 °C |
