ICS25-B77X75-O-7035 2203876 PHOENIX CONTACT Montagem da base de dados de habitação
ICS25-B77X75-O-7035
2203876
PHOENIX_CONTACT
10
Montagem da base de dados de habitação

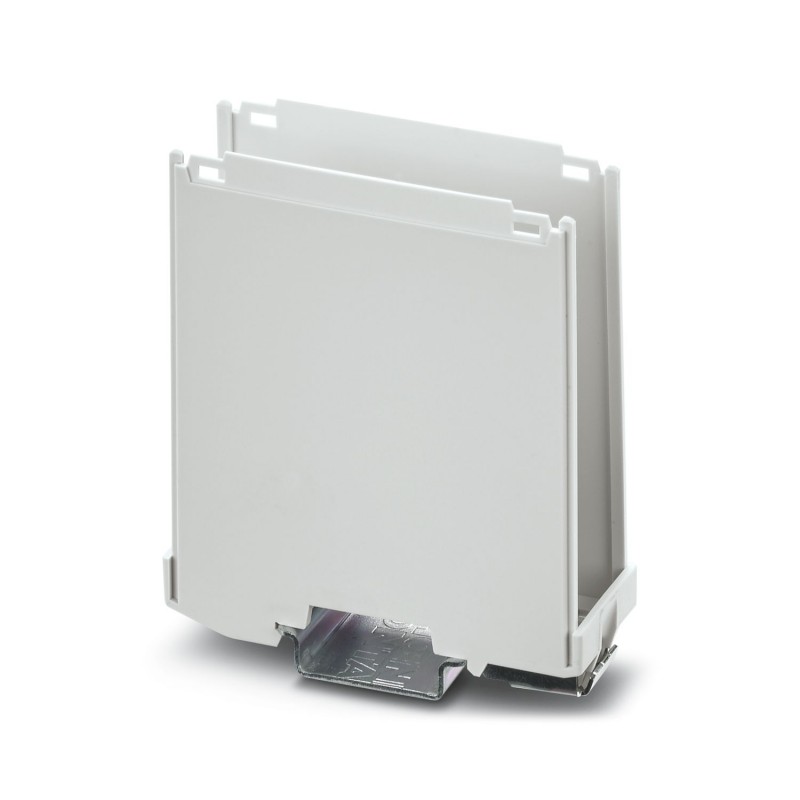

Caixa de trilhos, Parte inferior da caixa com pino de metal, largura: 25 mm, altura: 77,5 mm, profundidade: 85,8 mm, cor: cinza claro (7035), ponte cruzada: Conector de barramento ferroviário (opcional), número de polos conector cruzado: 8
DIN rail housing, Lower housing part with metal foot catch, width: 25 mm, height: 77.5 mm, depth: 85.8 mm, color: light gray (similar RAL 7035), cross connection: DIN rail connector (optional), number of positions cross connector: 8
Aparelhos elétricos de baixa tensão > Base de montagem para painel de perfil extrudado
Caixas eletrônicas
Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Related products
▲Best sellers
▲Mais informação
▲| Assembly note | Refer to the data sheet for the range in the download area. |
| Recommendation | Material of contact pads for bus connector, galvanic gold (hard gold) |
| Product type | Enclosure bottom part |
| Housing type | DIN rail housing |
| Housing series | ICS |
| Product family | ICS25-..77X.. |
| Max. number of positions | 30 (pitch: 3.5 mm) |
| 24 (pitch: 5 mm) | |
| Number of rows | 3 |
| Number (Number of connection openings) | 6 |
| Type | Lower housing part with metal foot catch |
| Ventilation openings present | no |
| Data management status | |
| Article revision | 01 |
| Dimensional drawing |  |
| Width | 25 mm |
| Height | 77.5 mm |
| Depth | 85.8 mm |
| Depth from top edge of DIN rail to support point on upper part | 75.6 mm |
| Dimensions | 25 mm x 77.5 mm x 87.5 mm (Lower housing part from the top edge of the DIN rail with upper housing part) |
| 25 mm x 77.5 mm x 94 mm (Lower housing part with upper housing part) | |
| PCB design | |
| PCB thickness | 1.4 mm ... 1.8 mm |
| Color (Housing) | light gray (RAL 7035) |
| Flammability rating according to UL 94 | V0 |
| CTI according to IEC 60112 | 600 |
| Housing material | Polyamide |
| Surface characteristics | untreated |
| Power dissipation single housing for 20 °C | |
| Ambient temperature | 20 °C |
| Reduction factor | 1 |
| Mounting position | vertical |
| Power dissipation | 15 W |
| Power dissipation single housing for 30 °C | |
| Ambient temperature | 30 °C |
| Reduction factor | 0.81 |
| Mounting position | vertical |
| Power dissipation | 12 W |
| Power dissipation single housing for 40 °C | |
| Ambient temperature | 40 °C |
| Reduction factor | 0.67 |
| Mounting position | vertical |
| Power dissipation | 10 W |
| Power dissipation single housing for 50 °C | |
| Ambient temperature | 50 °C |
| Reduction factor | 0.53 |
| Mounting position | vertical |
| Power dissipation | 8 W |
| Power dissipation single housing for 60 °C | |
| Ambient temperature | 60 °C |
| Reduction factor | 0.41 |
| Mounting position | vertical |
| Power dissipation | 6.1 W |
| Power dissipation single housing for 70 °C | |
| Ambient temperature | 70 °C |
| Reduction factor | 0.31 |
| Mounting position | vertical |
| Power dissipation | 4.6 W |
| Vibration test | |
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.15 mm (10 Hz ... 58.1 Hz) |
| Acceleration | 2g (58.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Test directions | X-, Y- and Z-axis |
| Glow-wire test | |
| Specification | IEC 60695-2-11:2014-02 |
| Temperature | 850 °C |
| Time of exposure | 30 s |
| Thermal stability / ball thrust test | |
| Specification | IEC 60695-10-2:2014-02 |
| Temperature | 125 °C |
| Test duration | 1 h |
| Force | 20 N |
| Mechanical strength / tumbling barrel | |
| Specification | IEC 60068-2-31:2008-05 |
| Height of fall | 50 cm |
| Frequency | 50 |
| Shocks | |
| Specification | IEC 60068-2-27:2008-02 |
| Pulse shape | Semi-sinusoidal |
| Acceleration | 15g |
| Shock duration | 11 ms |
| Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Test for substances that would hinder coating with paint or varnish | |
| Specification | VDMA 24364:2018-05 |
| Result | Test passed |
| Degree of protection (IP code) | |
| Specification | IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08 |
| Result, degree of protection, IP code | IP20 |
| Ambient conditions | |
| Max. IP code to attain | IP20 |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | max. 80 % |
| Number of PCB holders | 2 |
| Type of PCB mount | Latching |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
| Mounting type | DIN rail mounting |
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
| Característica | Valor |
|---|---|
| Tipo de gabinete (EF003086) | Fechado |
| Caixa lado a lado (EF003088) | Não |
| Material (EF002169) | Outro |
| Acabamento da superfície (EF006569) | Outro |
| Cor (EF000007) | Cinzento |
| Número RAL (EF000116) | 7035 |
| Largura (EF000008) | 25 mm |
| Altura (EF000040) | 77.5 mm |
| Profundidade (EF000049) | 85.8 mm |
