ICS25-B77X75-O-7035 2203876 PHOENIX CONTACT Mounting base housing
ICS25-B77X75-O-7035
2203876
PHOENIX_CONTACT
10
Mounting base housing

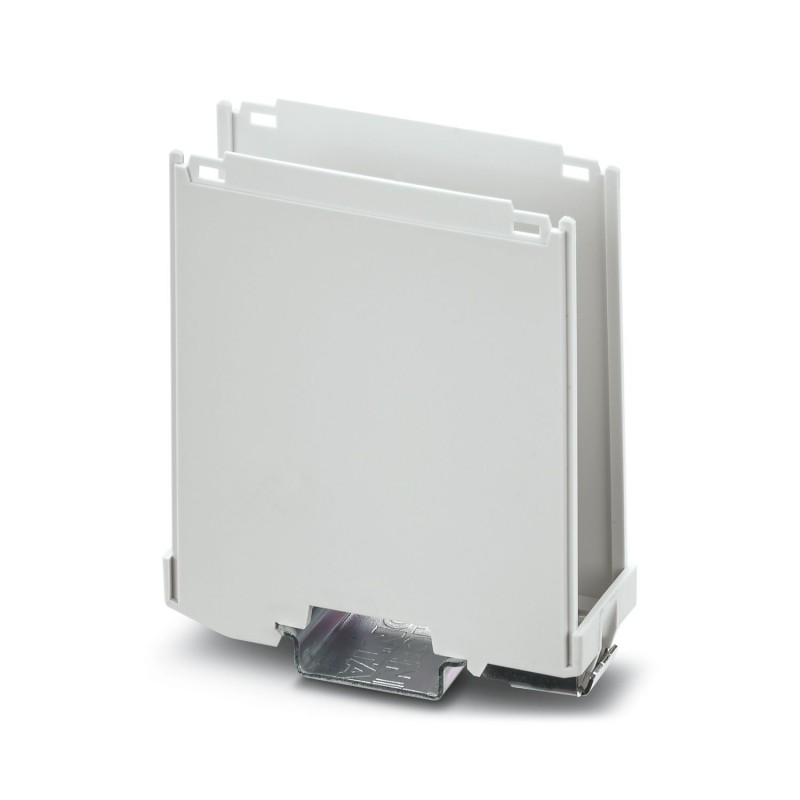

Rail housing, Housing underside with metal pin, width: 25 mm, height: 77.5 mm, depth: 85.8 mm, colour: light grey (7035), cross bridge: Rail bus connector (optional), number of poles cross connector: 8
Low-voltage industrial components > Extruded profile modular housing
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2203876 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| GTIN | 4055626465517 |
| Weight per Piece (excluding packing) | 30.490 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Item properties
| Brief article description | Mounting base housing |
|---|---|
| Type | ICS25-B77X75-O-7035 |
| Order No. | 2203876 |
| Housing type | |
| Type | Lower part |
Dimensions
| Width [ w ] | 25 mm |
|---|---|
| Height [ h ] | 77 mm |
| Depth from top edge of DIN rail [ d ] | 75 mm |
| Dimensions | 25 mm x 77 mm x 87 mm (Lower housing part with upper housing part) |
Material data
| Color (similar to RAL) | light gray (7035) |
|---|---|
| Flammability rating according to UL 94 | V0 |
| Housing material | PA 6.6 |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 100 °C (observe derating) |
Power dissipation, single housing at 20 °C
| Ambient temperature | 20 °C |
|---|---|
| Reduction factor | 1 |
| Mounting position | vertical |
| Power dissipation | 17 W |
Power dissipation, single housing at 30 °C
| Ambient temperature | 40 °C |
|---|---|
| Reduction factor | 0.67 |
| Mounting position | vertical |
Power dissipation, single housing at 40 °C
| Ambient temperature | 60 °C |
|---|---|
| Reduction factor | 0.41 |
| Mounting position | vertical |
Power dissipation, single housing at 50 °C
| Ambient temperature | 80 °C |
|---|---|
| Reduction factor | 0.22 |
| Mounting position | vertical |
Vibration test
| Specification | IEC 60068-2-6:2007-12 |
|---|---|
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.15 mm (10 - 58.1 Hz) |
| Acceleration | 2g (58.1 - 150 Hz) |
| Test duration per axis | 2.5 h |
| Test directions | X-, Y- and Z-axis |
Shock
| Specification | IEC 60068-2-27:2008-02 |
|---|---|
| Pulse shape | Semi-sinusoidal |
| Acceleration | 15g |
| Shock duration | 11 ms |
| Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
Thermostability (Ball Thrust Test)
| Specification | IEC 60695-10-2:2014-02 |
|---|---|
| Temperature | 125 °C |
| Test duration | 1 h |
| Force | 20 |
Test for assessing the risk of fire (glow wire)
| Specification | IEC 60695-2-11:2014-02 |
|---|---|
| Temperature | 850 °C |
| Time of exposure | 30 s |
Test for substances that would hinder coating with paint or varnish
| Specification | VW PV 3.10.7:2005-02 |
|---|
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Width (EF000008) | 25 mm |
| Height (EF000040) | 77.5 mm |
| Depth (EF000049) | 85.8 mm |
