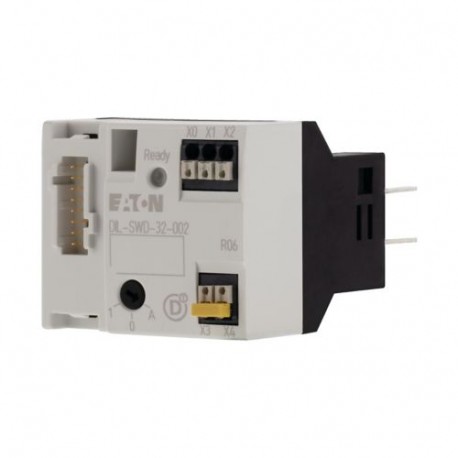

DIL-SWD-32-002 118561 Y7-118561 EATON ELECTRIC SWD Acessório DIL
DIL-SWD-32-002
118561
Y7-118561
EATON-MOELLER
5
SWD - Acessório DIL
Módulo SWDT Módulo Contator Básico com Seletor Homem/Automático
Eaton Moeller® series DIL-SWD Function element, contactor, SmartWire-DT, DIL/MSC, manual/auto
Elemento de função, conexão SmartWire-DT: Sim, para uso com: DILM(C)7... - DILM(C)32..., DILM38..., DILA..., DILMP20..., DILMP32..., DILMP45..., MSC-D(E)-... (24VDC)
Controladores industriais (PLC) > Módulo de entrada/saída digital de periférico descentralizado de bus de campo
Contatores até 170A
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Related products
▲Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton Moeller® series DIL-SWD SWD contactor module
Catalog Number
118561
EAN
4015081168316
Product Length/Depth
72 mm
Product Height
38 mm
Product Width
45 mm
Product Weight
0.037 kg
Certifications
UL 508
IEC/EN 60947
UL
EN 50178
CE
CSA File No.: 2324643
CSA Class No.: 3211-07
UL File No.: E29184
IEC/EN 61131-2
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
IEC/EN 60947-4-1
CSA
IEC/EN 60947
UL
EN 50178
CE
CSA File No.: 2324643
CSA Class No.: 3211-07
UL File No.: E29184
IEC/EN 61131-2
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
IEC/EN 60947-4-1
CSA
Model Code
DIL-SWD-32-002
Features Functions
Features
Fieldbus connection over separate bus coupler possible
Functions
Display of Contactor switching position, status of the digital inputs 1 and 2, 1-0-A switch position
For connecting the contactors to SmartWire-DT
Contactor actuation
For connecting the contactors to SmartWire-DT
Contactor actuation
Fitted with:
Own supply
Electric connection type
Spring clamp connection
Operating mode
Address allocation via Rotary switch
Control mode
Control mode
General
Cable length
≤ 2.8 m, Connection auxiliary contact
Current consumption
40 mA, SmartWire-DT network
Degree of protection
IP20
Input current at signal 1
3 mA
Number of inputs (digital)
2
Number of outputs (digital)
1
Output current
0.5 A
Overvoltage category
II
Pollution degree
2
Product category
SmartWire-DT slave
Protocol
Other bus systems
Type
SWD contactor modules
Voltage type
DC
Ambient conditions, mechanical
Constant acceleration
1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Constant amplitude
3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations
Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Height of fall (IEC/EN 60068-2-32) - max
0.3 m
Mounting position
As DILM7 to DILM38
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Ambient storage temperature - min
-30 °C
Ambient storage temperature - max
70 °C
Environmental conditions
Condensation: prevent with appropriate measures
Relative humidity
5 - 95 % (non-condensing, IEC/EN 60068-2-30)
Electro magnetic compatibility
Air discharge
8 kV, according to IEC 61131-2, level 3, ESD
Burst impulse
1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
1 kV, Signal cable, according to IEC/EN 61131-2, Level 3
1 kV, Signal cable, according to IEC/EN 61131-2, Level 3
Contact discharge
4 kV, according to IEC/EN 61131-2, Level 2, ESD
Electromagnetic fields
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
Radiated RFI
10 V (IEC/EN 61131-2:2008, Level 3)
Radio interference class
Class A (EN 55011)
Terminal capacities
Terminal capacity
0.2 - 1.5 mm² (24 - 16 AWG), solid
0.25 - 1.5 mm², flexible with ferrule
0.25 - 1.5 mm², flexible with ferrule
Electrical rating
Rated operational voltage
15 V DC (auxiliary contact)
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at DC - min
15 VDC
Supply voltage at DC - max
15 VDC
Magnet system
Pick-up current
125 mA (for DILM 7-9)
188 mA (for DILM 12-15)
500 mA (for DILM 17-38)
188 mA (for DILM 12-15)
500 mA (for DILM 17-38)
Power consumption
3 W for DILM 7-9 (Pick-up power)
4.5 W for DILM 12-15 (Sealing power)
12 W for DILM 17-38 (Pick-up power)
3 W for DILM 7-9 (Sealing power)
4.5 W for DILM 12-15 (Pick-up power)
0.5 W for DILM 17-38 (Sealing power)
4.5 W for DILM 12-15 (Sealing power)
12 W for DILM 17-38 (Pick-up power)
3 W for DILM 7-9 (Sealing power)
4.5 W for DILM 12-15 (Pick-up power)
0.5 W for DILM 17-38 (Sealing power)
Sealing current
188 mA, SmartWire-DT network for DILM 12-15
21 mA, SmartWire-DT network for DILM 17-38
125 mA, SmartWire-DT network for DILM 7-9
21 mA, SmartWire-DT network for DILM 17-38
125 mA, SmartWire-DT network for DILM 7-9
Communication
Addressing
Address set automatically
Connection to SmartWire-DT
Yes
Connection type
SWD: Plug, 8-pole
Push in terminals, Auxiliary contact
External device plug SWD4-8SF2-5, SmartWire-DT
Push in terminals, Auxiliary contact
External device plug SWD4-8SF2-5, SmartWire-DT
LED indicator
Status indication of SmartWire-DT network: Green and orange LED
Station
SmartWire-DT slave, SmartWire-DT network
Contacts
Number of auxiliary contacts
2
Safety
Explosion safety category for dust
None
Explosion safety category for gas
None
Potential isolation
Connection auxiliary contact: no
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0.8 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Característica | Valor |
|---|---|
| Supply voltage AC 50 Hz (EF007532) | 0 V |
| Supply voltage AC 60 Hz (EF007533) | 0 V |
| Supply voltage DC (EF007534) | 15 V |
| Voltage type (supply voltage) (EF002991) | DC |
| Number of digital inputs (EF001992) | 2 |
| Number of digital outputs (EF001993) | 1 |
| Digital inputs configurable (EF008516) | false |
| Digital outputs configurable (EF008520) | false |
| Input current at signal 1 (EF001428) | 3 mA |
| Permitted voltage at input (EF007554) | 15 V |
| Type of voltage (input voltage) (EF003033) | DC |
| Type of digital output (EF003601) | None |
| Output current (EF003202) | 0.5 A |
| Permitted voltage at output (EF007553) | 20.4 V |
| Type of output voltage (EF008222) | DC |
| Short-circuit protection, outputs available (EF003203) | false |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Number of HW-interfaces other (EF003027) | 1 |
| With optical interface (EF003028) | false |
| Supporting protocol for EtherCAT (EF017564) | false |
| Supporting protocol for TCP/IP (EF003050) | false |
| Supporting protocol for PROFIBUS (EF003052) | false |
| Supporting protocol for CAN (EF003053) | false |
| Supporting protocol for INTERBUS (EF003054) | false |
| Supporting protocol for ASI (EF003051) | false |
| Supporting protocol for KNX (EF003055) | false |
| Supporting protocol for Modbus (EF003057) | false |
| Supporting protocol for Data-Highway (EF003058) | false |
| Supporting protocol for DeviceNet (EF003059) | false |
| Supporting protocol for SUCONET (EF003060) | false |
| Supporting protocol for LON (EF003017) | false |
| Supporting protocol for PROFINET IO (EF007525) | false |
| Supporting protocol for PROFINET CBA (EF007524) | false |
| Supporting protocol for SERCOS (EF006657) | false |
| Supporting protocol for Foundation Fieldbus (EF007522) | false |
| Supporting protocol for EtherNet/IP (EF007521) | false |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | false |
| Supporting protocol for DeviceNet Safety (EF007520) | false |
| Supporting protocol for INTERBUS-Safety (EF006662) | false |
| Supporting protocol for PROFIsafe (EF007526) | false |
| Supporting protocol for SafetyBUS p (EF007527) | false |
| Supporting protocol for other bus systems (EF003062) | true |
| Radio standard Bluetooth (EF007178) | false |
| Radio standard WLAN 802.11 (EF007179) | false |
| Radio standard GPRS (EF008523) | false |
| Radio standard GSM (EF008524) | false |
| Radio standard UMTS (EF008525) | false |
| IO link master (EF007298) | false |
| System accessory (EF004118) | true |
| Degree of protection (IP) (EF005474) | IP20 |
| Type of electric connection (EF003961) | Spring clamp connection |
| Time delay at signal change (EF002382) | 10 ms |
| Fieldbus connection over separate bus coupler possible (EF004002) | true |
| Suitable for rail mounting (EF003972) | false |
| Wall mounting/direct mounting (EF007020) | false |
| Front built-in possible (EF007016) | false |
| Rack-assembly possible (EF007018) | false |
| Suitable for safety functions (EF001597) | false |
| SIL according to IEC 61508 (EF009889) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Appendant operation agent (Ex ia) (EF004141) | false |
| Appendant operation agent (Ex ib) (EF004142) | false |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Certified for UL hazardous location class I (EF017622) | false |
| Certified for UL hazardous location class II (EF017625) | false |
| Certified for UL hazardous location class III (EF017627) | false |
| Certified for UL hazardous location division 1 (EF017628) | false |
| Certified for UL hazardous location division 2 (EF017629) | false |
| Certified for UL hazardous location group A (acetylene) (EF017632) | false |
| Certified for UL hazardous location group B (hydrogen) (EF017633) | false |
| Certified for UL hazardous location group C (ethylene) (EF017635) | false |
| Certified for UL hazardous location group D (propane) (EF017636) | false |
| Certified for UL hazardous location group E (metal dusts) (EF017637) | false |
| Certified for UL hazardous location group F (carbonaceous dusts) (EF017638) | false |
| Certified for UL hazardous location group G (non-conductive dusts) (EF017639) | false |
| Width (EF000008) | 45 mm |
| Height (EF000040) | 38 mm |
| Depth (EF000049) | 72 mm |
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON SWITCHING PROTECTING MOTORS EN.pdf | 35 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| DIL-SWD-32-002 Y7-118561 118561 ES_118560.pdf | 1 Mbytes |
|
Avaliações: (0) ▲
Não há comentários do produto ainda.
Adicionar avaliação
ocultar formulário
| Avaliação: |
|
| Nome: | |
| Email: | |
| Título: | |
| Opinión: | |
| Você recomendaria esse produto para comprar? | |
|
|
|
| Adicionar avaliação | |
Todas as classificações que recebemos a partir dos itens que oferecemos são reais e verificadas. Um pequeno gesto, mas muito valioso. Então, obrigado por esse minuto você gasta em deixar-nos a sua opinião e classificação de produtos, porque nos ajuda a continuar a melhorar e oferecer maior qualidade de serviço.
