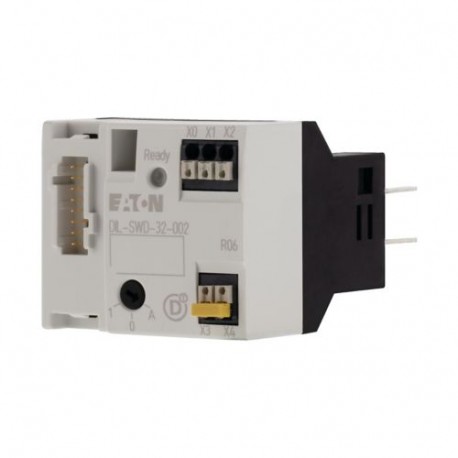

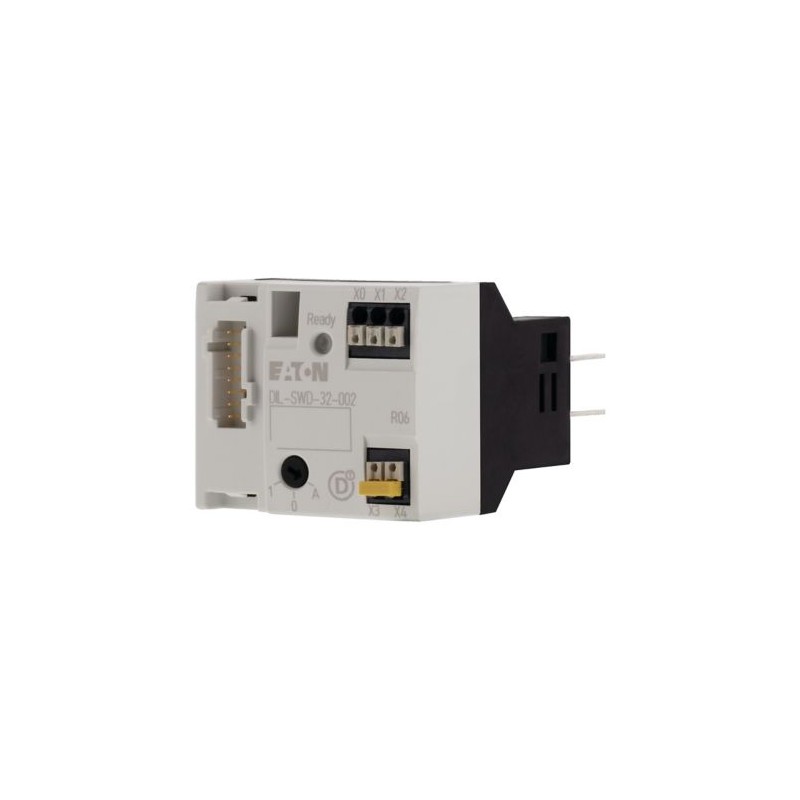

DIL-SWD-32-002 118561 Y7-118561 EATON ELECTRIC Elemento funzionale, contattore, SmartWire-DT, DIL/MSC, man./..
DIL-SWD-32-002
118561
Y7-118561
EATON-MOELLER
5
Elemento funzionale, contattore, SmartWire-DT, DIL/MSC, man./auto
Modulo SWDT Modulo contattore di base con selettore uomo/auto
Eaton Moeller® series DIL-SWD Function element, contactor, SmartWire-DT, DIL/MSC, manual/auto
Elemento funzionale, SmartWire-DT Connessione: Sì, da utilizzare con: DILM(C)7... - DILM(C)32..., DILM38..., DILA..., DILMP20..., DILMP32..., DILMP45..., MSC-D(E)-... (24 V CC)
sistemi di controllo industriali (PLC) > bus di campo, periferica remota – modulo I/O digitale
Contattori fino a 170A
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Related products
▲Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton Moeller® series DIL-SWD SWD contactor module
Catalog Number
118561
EAN
4015081168316
Product Length/Depth
72 mm
Product Height
38 mm
Product Width
45 mm
Product Weight
0.037 kg
Certifications
UL 508
IEC/EN 60947
UL
EN 50178
CE
CSA File No.: 2324643
CSA Class No.: 3211-07
UL File No.: E29184
IEC/EN 61131-2
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
IEC/EN 60947-4-1
CSA
IEC/EN 60947
UL
EN 50178
CE
CSA File No.: 2324643
CSA Class No.: 3211-07
UL File No.: E29184
IEC/EN 61131-2
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
IEC/EN 60947-4-1
CSA
Model Code
DIL-SWD-32-002
Caratteristiche e Funzioni
Features
Fieldbus connection over separate bus coupler possible
Functions
Display of Contactor switching position, status of the digital inputs 1 and 2, 1-0-A switch position
For connecting the contactors to SmartWire-DT
Contactor actuation
For connecting the contactors to SmartWire-DT
Contactor actuation
Fitted with:
Own supply
Electric connection type
Spring clamp connection
Operating mode
Address allocation via Rotary switch
Control mode
Control mode
Informazioni generali
Cable length
≤ 2.8 m, Connection auxiliary contact
Current consumption
40 mA, SmartWire-DT network
Input current at signal 1
3 mA
Number of inputs (digital)
2
Number of outputs (digital)
1
Output current
0.5 A
Overvoltage category
II
Pollution degree
2
Product category
SmartWire-DT slave
Protocol
Other bus systems
Type
SWD contactor modules
Voltage type
DC
Condizioni ambientali, dati meccanici
Constant acceleration
1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Constant amplitude
3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations
Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Height of fall (IEC/EN 60068-2-32) - max
0.3 m
Mounting position
As DILM7 to DILM38
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts
Condizioni ambientali e climatiche
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Ambient operating temperature - max
60 °C
Ambient storage temperature - min
-30 °C
Ambient storage temperature - max
70 °C
Environmental conditions
Condensation: prevent with appropriate measures
Relative humidity
5 - 95 % (non-condensing, IEC/EN 60068-2-30)
Compatibilità elettromagnetica
Air discharge
8 kV, according to IEC 61131-2, level 3, ESD
Contact discharge
4 kV, according to IEC/EN 61131-2, Level 2, ESD
Electromagnetic fields
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
Radiated RFI
10 V (IEC/EN 61131-2:2008, Level 3)
Radio interference class
Class A (EN 55011)
Sezioni di collegamento
Terminal capacity
0.2 - 1.5 mm² (24 - 16 AWG), solid
0.25 - 1.5 mm², flexible with ferrule
0.25 - 1.5 mm², flexible with ferrule
Dati elettrici
Rated operational voltage
15 V DC (auxiliary contact)
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at DC - min
15 VDC
Supply voltage at DC - max
15 VDC
Sistema elettromagnetico (bobina)
Pick-up current
125 mA (for DILM 7-9)
188 mA (for DILM 12-15)
500 mA (for DILM 17-38)
188 mA (for DILM 12-15)
500 mA (for DILM 17-38)
Power consumption
3 W for DILM 7-9 (Pick-up power)
4.5 W for DILM 12-15 (Sealing power)
12 W for DILM 17-38 (Pick-up power)
3 W for DILM 7-9 (Sealing power)
4.5 W for DILM 12-15 (Pick-up power)
0.5 W for DILM 17-38 (Sealing power)
4.5 W for DILM 12-15 (Sealing power)
12 W for DILM 17-38 (Pick-up power)
3 W for DILM 7-9 (Sealing power)
4.5 W for DILM 12-15 (Pick-up power)
0.5 W for DILM 17-38 (Sealing power)
Sealing current
188 mA, SmartWire-DT network for DILM 12-15
21 mA, SmartWire-DT network for DILM 17-38
125 mA, SmartWire-DT network for DILM 7-9
21 mA, SmartWire-DT network for DILM 17-38
125 mA, SmartWire-DT network for DILM 7-9
Comunicazione
Addressing
Address set automatically
Connection to SmartWire-DT
Yes
Connection type
SWD: Plug, 8-pole
Push in terminals, Auxiliary contact
External device plug SWD4-8SF2-5, SmartWire-DT
Push in terminals, Auxiliary contact
External device plug SWD4-8SF2-5, SmartWire-DT
LED indicator
Status indication of SmartWire-DT network: Green and orange LED
Station
SmartWire-DT slave, SmartWire-DT network
Contatti
Number of auxiliary contacts
2
Sicurezza
Explosion safety category for dust
None
Explosion safety category for gas
None
Potential isolation
Connection auxiliary contact: no
Verifica di progetto
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0.8 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caratteristica | Valore |
|---|---|
| tensione di alimentazione AC 50 Hz (EF007532) | 0 V |
| tensione di alimentazione AC 60 Hz (EF007533) | 0 V |
| tensione di alimentazione DC (EF007534) | 15 V |
| tipo di tensione di alimentazione (EF002991) | DC |
| numero di ingressi digitali (EF001992) | 2 |
| numero di uscite digitali (EF001993) | 1 |
| ingressi digitali configurabili (EF008516) | false |
| uscite digitali configurabili (EF008520) | false |
| corrente d'entrata per segnale 1 (EF001428) | 3 mA |
| tensione ammessa nell'ingresso (EF007554) | 15 V |
| tipo di tensione d'ingresso (EF003033) | DC |
| tipo di uscita digitale (EF003601) | None |
| corrente d'uscita (EF003202) | 0.5 A |
| tensione ammessa nell'uscita (EF007553) | 20.4 V |
| tipo di tensione d'uscita (EF008222) | DC |
| protezione da corto circuito, uscite presenti (EF003203) | false |
| numero di interfacce HW Industrial Ethernet (EF003020) | 0 |
| numero di interfacce PROFINET (EF006932) | 0 |
| numero di interfacce HW seriali RS232 (EF003021) | 0 |
| numero di interfacce HW seriali RS422 (EF003022) | 0 |
| numero di interfacce HW seriali RS485 (EF003023) | 0 |
| numero di interfacce HW seriali TTY (EF003024) | 0 |
| numero di interfacce HW parallele (EF003026) | 0 |
| numero di interfacce HW wireless (EF006933) | 0 |
| numero di interfacce HW USB (EF003025) | 0 |
| numero di interfacce HW altre (EF003027) | 1 |
| con interfaccia ottica (EF003028) | false |
| supporta il protocollo per EtherCAT (EF017564) | false |
| supporta il protocollo per TCP/IP (EF003050) | false |
| supporta il protocollo per PROFIBUS (EF003052) | false |
| supporta il protocollo per CAN (EF003053) | false |
| supporta il protocollo per INTERBUS (EF003054) | false |
| supporta il protocollo per ASI (EF003051) | false |
| supporta il protocollo per EIB (EF003055) | false |
| supporta il protocollo pour Modbus (EF003057) | false |
| supporta il protocollo per Data-Highway (EF003058) | false |
| supporta il protocollo per DeviceNet (EF003059) | false |
| supporta il protocollo per SUCONET (EF003060) | false |
| supporta il protocollo per LON (EF003017) | false |
| supporta il protocollo per PROFINET IO (EF007525) | false |
| supporta il protocollo per PROFINET CBA (EF007524) | false |
| supporta il protocollo per SERCOS (EF006657) | false |
| supporta il protocollo per Foundation Fieldbus (EF007522) | false |
| supporta il protocollo per EtherNet/IP (EF007521) | false |
| supporta il protocollo per AS-Interface Safety at Work (EF007519) | false |
| supporta il protocollo per DeviceNet Safety (EF007520) | false |
| supporta il protocollo per INTERBUS-Safety (EF006662) | false |
| supporta il protocollo per PROFIsafe (EF007526) | false |
| supporta il protocollo per SafetyBUS p (EF007527) | false |
| supporta il protocollo per altri sistemi bus (EF003062) | true |
| standard radio Bluetooth (EF007178) | false |
| standard radio WLAN 802.11 (EF007179) | false |
| standard radio GPRS (EF008523) | false |
| standard radio GSM (EF008524) | false |
| standard radio UMTS (EF008525) | false |
| link IO master (EF007298) | false |
| componenti del sistema (EF004118) | true |
| grado di protezione (IP) (EF005474) | IP20 |
| tipo di collegamento elettrico (EF003961) | Spring clamp connection |
| tempo di ritardo al cambio di segnale (EF002382) | 10 ms |
| collegamento bus di campo tramite accoppiatore separato possibile (EF004002) | true |
| montaggio su guida portante possibile (EF003972) | false |
| montaggio a parete/diretto possibile (EF007020) | false |
| montaggio frontale possibile (EF007016) | false |
| montaggio su rack possibile (EF007018) | false |
| adatto per funzioni di sicurezza (EF001597) | false |
| SIL secondo IEC 61508 (EF009889) | None |
| livello di performance secondo EN ISO 13849-1 (EF007399) | None |
| risorsa corrispondente (Ex ia) (EF004141) | false |
| risorsa corrispondente (Ex ib) (EF004142) | false |
| categoria di protezione antideflagrante per gas (EF003997) | None |
| categoria di protezione antideflagrante per polvere (EF003998) | None |
| certificato per area pericolosa UL classe I (EF017622) | false |
| certificato per area pericolosa UL classe II (EF017625) | false |
| certificato per area pericolosa UL classe III (EF017627) | false |
| certificato per area pericolosa UL divisione 1 (EF017628) | false |
| certificato per area pericolosa UL divisione 2 (EF017629) | false |
| certificato per area pericolosa UL gruppo A (acetilene) (EF017632) | false |
| certificato per area pericolosa UL gruppo B (idrogeno) (EF017633) | false |
| certificato per area pericolosa UL gruppo C (etilene) (EF017635) | false |
| certificato per area pericolosa UL gruppo D (propano) (EF017636) | false |
| certificato per area pericolosa UL gruppo E (polvere metallica) (EF017637) | false |
| certificato per area pericolosa UL gruppo F (polvere carboniosa) (EF017638) | false |
| certificato per area pericolosa UL gruppo G (polvere non conduttiva) (EF017639) | false |
| larghezza (EF000008) | 45 mm |
| altezza (EF000040) | 38 mm |
| profondità (EF000049) | 72 mm |
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF EATON SWITCHING PROTECTING MOTORS EN.pdf | 35 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| DIL-SWD-32-002 Y7-118561 118561 ES_118560.pdf | 1 Mbytes |
|
Recensioni: (0) ▲
Nessun commento per il momento.
Inserisci recensione
nascondi form
| Valutazione: |
|
| Nome: | |
| Email: | |
| Titolo: | |
| Testo: | |
| Mi consiglia questo prodotto da acquistare? | |
|
|
|
| Inserisci recensione | |
Tutti i feedback che riceviamo dagli elementi che offriamo sono reali e verificati. Un piccolo gesto, ma di grande valore. Quindi grazie per quel minuto si spende in noi lasciare il vostro parere e punteggio sui prodotti, perché ci aiuta a continuare a migliorare e di offrire ancora maggiore qualità del servizio.
