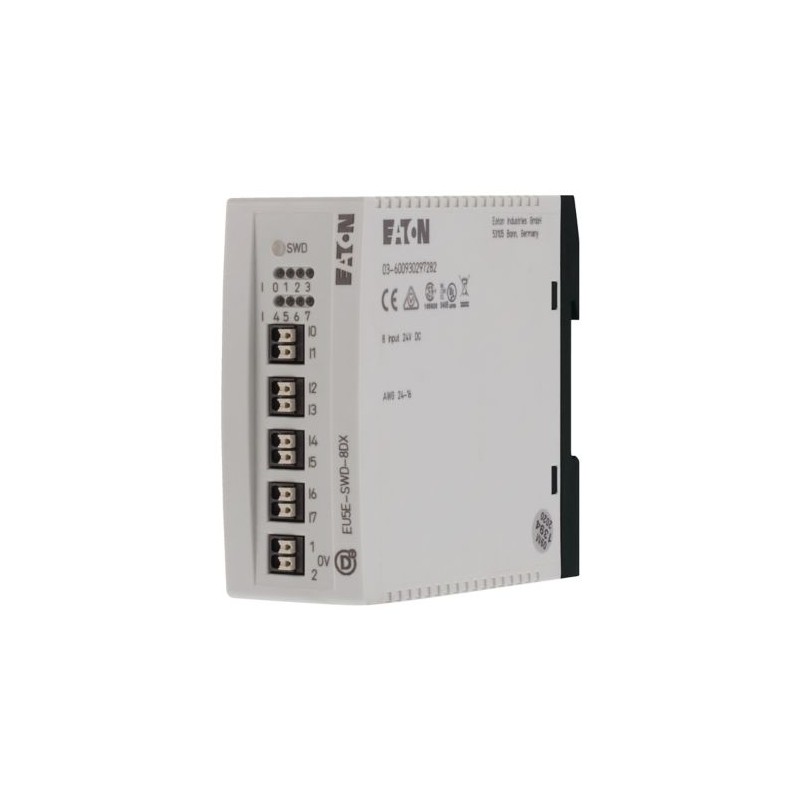

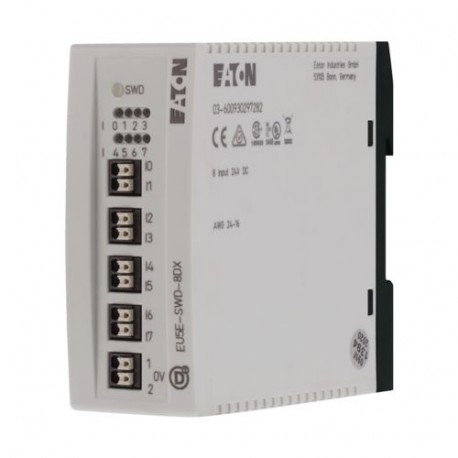

EU5E-SWD-8DX 116381 Y7-116381 EATON ELECTRIC SWD entradas do módulo
EU5E-SWD-8DX
116381
Y7-116381
EATON-MOELLER
SWD - entradas do módulo
Módulo SWDT IP20 8 Entradas Digitais
Eaton EU5E I/O module, SmartWire-DT, 24 V DC, 8DI
SmartWire-DT slave para conexão de sinais de entrada digital, ajuste automático de endereço, módulo com 8 entradas digitais de 24VDC, conexão com terminais de grampo push-in
Controladores industriais (PLC) > Módulo de entrada/saída digital de periférico descentralizado de bus de campo
Smartwire Darwin
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
geralmente comprados juntos
▲Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton EU5E Accessory Input module
Catalog Number
116381
EAN
4015081161119
Product Length/Depth
102 mm
Product Height
90 mm
Product Width
35 mm
Product Weight
0.09 kg
Certifications
CSA Class No.: 3211-07
UL
CSA
CSA File No.: 2324643
IEC/EN 61131-2
UL Category Control No.: NKCR
UL File No.: E29184
UL
CSA
CSA File No.: 2324643
IEC/EN 61131-2
UL Category Control No.: NKCR
UL File No.: E29184
Model Code
EU5E-SWD-8DX
Especificações do produto
Type
Digital modules
Features
Fieldbus connection over separate bus coupler possible
Air discharge
8 kV, according to IEC 61131-2, level 3, ESD
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Electric connection type
Flat plug-in connection
Number of inputs (digital)
8
Pollution degree
2
Burst impulse
1 kV, Signal cable, according to IEC/EN 61131-2, Level 3
2 kV, Supply cable, according to IEC/EN 61131-2, Level 3
1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
2 kV, Supply cable, according to IEC/EN 61131-2, Level 3
1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
Climatic proofing
Dry heat to IEC 60068-2-2
Damp heat, constant, to IEC 60068-2-3
Damp heat, constant, to IEC 60068-2-3
Connection to SmartWire-DT
Yes
Air pressure
795 - 1080 hPa (operation)
Category (EN 954-1)
None
Explosion safety category for dust
None
Environmental conditions
Condensation: prevent with appropriate measures
Explosion safety category for gas
None
Output current
0 A
Mounting method
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Wall mounting/direct mounting
Rail mounting possible
Wall mounting/direct mounting
Rail mounting possible
Current consumption
16 mA, SmartWire-DT network
Voltage type
DC
Mounting position
As required
Contact discharge
4 kV, according to IEC/EN 61131-2, Level 2, ESD
Overvoltage category
II
Safety performance level (EN ISO 13849-1)
None
SIL (IEC 61508)
None
Ambient operating temperature - max
55 °C
Ambient operating temperature - min
-25 °C
Ambient storage temperature - max
70 °C
Ambient storage temperature - min
-40 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Height of fall (IEC/EN 60068-2-32) - max
0.3 m
Input current at signal 1
4 mA
Number of HW-interfaces (industrial ethernet)
0
Number of HW-interfaces (other)
0
Number of HW-interfaces (parallel)
0
Number of HW-interfaces (RS-232)
0
Number of HW-interfaces (RS-422)
0
Number of HW-interfaces (RS-485)
0
Number of HW-interfaces (serial TTY)
0
Number of HW-interfaces (USB)
0
Constant acceleration
1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Constant amplitude
3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations
Surge rating
1 kV, Surge I/O cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC
Potential isolation
Inputs for SmartWire-DT: yes
Power loss
1 W
Electromagnetic fields
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
Radiated RFI
10 V (IEC/EN 61131-2:2008, Level 3)
Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Protocol
Other bus systems
Radio interference class
Class A (EN 55011)
Number of outputs (digital)
0
Relative humidity
5 - 95 % (non-condensing, IEC/EN 60068-2-30)
Connection type
Push in terminals, Supply and I/O sensor
Connection plug: external device plug SWD4-8SF2-5, SmartWire-DT
Plug, 8-pole, SmartWire-DT
Connection plug: external device plug SWD4-8SF2-5, SmartWire-DT
Plug, 8-pole, SmartWire-DT
Data transmission type
None
Data transfer rate
250 kBit/s, SmartWire-DT
Setting automatically
Setting automatically
Degree of protection
IP20
Station
SmartWire-DT slave, SmartWire-DT network
Input delay
< 0.2 ms
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts
Functions
For connection of digital I/O signals
System accessory
Yes
Limit value type 1
High: > 15 V DC
Low: < 5 V DC
Low: < 5 V DC
Input current
4 mA (at 24 V DC, Digital inputs)
Terminal capacity
0.25 - 1.5 mm² (24 - 16 AWG), flexible with ferrule, Terminal for I/O sensor
0.2 - 1.5 mm² (AWG 24 - 16), solid, Terminal for I/O sensor
0.2 - 1.5 mm² (AWG 24 - 16), solid, Terminal for I/O sensor
LED indicator
Status indication of SmartWire-DT network: Green LED
Status indication of input: Yellow LED
Status indication of input: Yellow LED
Number of HW-interfaces (wireless)
0
Number of interfaces (PROFINET)
0
Operating temperature - max
55 °C
Operating temperature - min
-25 °C
Permitted voltage at input - max
28.8 V
Permitted voltage at input - min
20.4 V
Permitted voltage at output - max
0 V
Permitted voltage at output - min
0 V
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
1 W
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 60 Hz - max
0 VAC
Supply voltage at AC, 60 Hz - min
0 VAC
Supply voltage at DC - max
28.8 VDC
Supply voltage at DC - min
20.4 VDC
Time delay at signal exchange - max
0 ms
Time delay at signal exchange - min
0 ms
Product category
SmartWire-DT slave
| Característica | Valor |
|---|---|
| Supply voltage AC 50 Hz (EF007532) | 0 V |
| Supply voltage AC 60 Hz (EF007533) | 0 V |
| Supply voltage DC (EF007534) | 20.4 V |
| Voltage type (supply voltage) (EF002991) | DC |
| Number of digital inputs (EF001992) | 8 |
| Number of digital outputs (EF001993) | 0 |
| Digital inputs configurable (EF008516) | false |
| Digital outputs configurable (EF008520) | false |
| Input current at signal 1 (EF001428) | 4 mA |
| Permitted voltage at input (EF007554) | 20.4 V |
| Type of voltage (input voltage) (EF003033) | DC |
| Type of digital output (EF003601) | None |
| Output current (EF003202) | 0 A |
| Permitted voltage at output (EF007553) | 0 V |
| Type of output voltage (EF008222) | DC |
| Short-circuit protection, outputs available (EF003203) | false |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Number of HW-interfaces other (EF003027) | 0 |
| With optical interface (EF003028) | false |
| Supporting protocol for EtherCAT (EF017564) | false |
| Supporting protocol for TCP/IP (EF003050) | false |
| Supporting protocol for PROFIBUS (EF003052) | false |
| Supporting protocol for CAN (EF003053) | false |
| Supporting protocol for INTERBUS (EF003054) | false |
| Supporting protocol for ASI (EF003051) | false |
| Supporting protocol for KNX (EF003055) | false |
| Supporting protocol for Modbus (EF003057) | false |
| Supporting protocol for Data-Highway (EF003058) | false |
| Supporting protocol for DeviceNet (EF003059) | false |
| Supporting protocol for SUCONET (EF003060) | false |
| Supporting protocol for LON (EF003017) | false |
| Supporting protocol for PROFINET IO (EF007525) | false |
| Supporting protocol for PROFINET CBA (EF007524) | false |
| Supporting protocol for SERCOS (EF006657) | false |
| Supporting protocol for Foundation Fieldbus (EF007522) | false |
| Supporting protocol for EtherNet/IP (EF007521) | false |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | false |
| Supporting protocol for DeviceNet Safety (EF007520) | false |
| Supporting protocol for INTERBUS-Safety (EF006662) | false |
| Supporting protocol for PROFIsafe (EF007526) | false |
| Supporting protocol for SafetyBUS p (EF007527) | false |
| Supporting protocol for other bus systems (EF003062) | true |
| Radio standard Bluetooth (EF007178) | false |
| Radio standard WLAN 802.11 (EF007179) | false |
| Radio standard GPRS (EF008523) | false |
| Radio standard GSM (EF008524) | false |
| Radio standard UMTS (EF008525) | false |
| IO link master (EF007298) | false |
| System accessory (EF004118) | true |
| Degree of protection (IP) (EF005474) | IP20 |
| Type of electric connection (EF003961) | Flat plug-in connection |
| Time delay at signal change (EF002382) | 0 ms |
| Fieldbus connection over separate bus coupler possible (EF004002) | true |
| Suitable for rail mounting (EF003972) | true |
| Wall mounting/direct mounting (EF007020) | true |
| Front built-in possible (EF007016) | false |
| Rack-assembly possible (EF007018) | false |
| Suitable for safety functions (EF001597) | false |
| SIL according to IEC 61508 (EF009889) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Appendant operation agent (Ex ia) (EF004141) | false |
| Appendant operation agent (Ex ib) (EF004142) | false |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Certified for UL hazardous location class I (EF017622) | false |
| Certified for UL hazardous location class II (EF017625) | false |
| Certified for UL hazardous location class III (EF017627) | false |
| Certified for UL hazardous location division 1 (EF017628) | false |
| Certified for UL hazardous location division 2 (EF017629) | false |
| Certified for UL hazardous location group A (acetylene) (EF017632) | false |
| Certified for UL hazardous location group B (hydrogen) (EF017633) | false |
| Certified for UL hazardous location group C (ethylene) (EF017635) | false |
| Certified for UL hazardous location group D (propane) (EF017636) | false |
| Certified for UL hazardous location group E (metal dusts) (EF017637) | false |
| Certified for UL hazardous location group F (carbonaceous dusts) (EF017638) | false |
| Certified for UL hazardous location group G (non-conductive dusts) (EF017639) | false |
| Width (EF000008) | 35 mm |
| Height (EF000040) | 90 mm |
| Depth (EF000049) | 102 mm |
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON PRODUCT CATALOGUE SMART WIRE EN.pdf | 26 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| EU5E-SWD-8DX Y7-116381 116381 ES_172560.pdf | 984 Kbytes |
|
Avaliações: (0) ▲
Não há comentários do produto ainda.
Adicionar avaliação
ocultar formulário
| Avaliação: |
|
| Nome: | |
| Email: | |
| Título: | |
| Opinión: | |
| Você recomendaria esse produto para comprar? | |
|
|
|
| Adicionar avaliação | |
Todas as classificações que recebemos a partir dos itens que oferecemos são reais e verificadas. Um pequeno gesto, mas muito valioso. Então, obrigado por esse minuto você gasta em deixar-nos a sua opinião e classificação de produtos, porque nos ajuda a continuar a melhorar e oferecer maior qualidade de serviço.
