Visualizza ingrandito

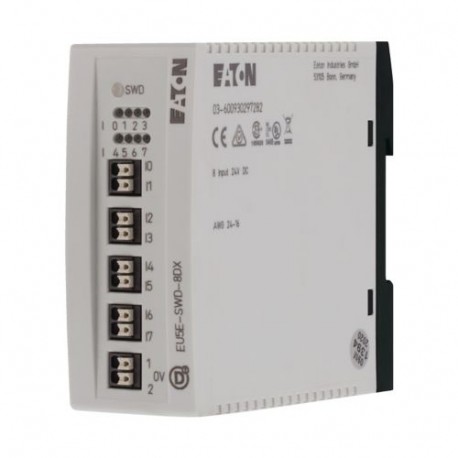

EU5E-SWD-8DX 116381 Y7-116381 EATON ELECTRIC Modulo ingresso/uscita, SmartWire-DT, 24VDC, 8DI
EU5E-SWD-8DX
116381
Y7-116381
EATON-MOELLER
Modulo ingresso/uscita, SmartWire-DT, 24VDC, 8DI
Modulo SWDT IP20 8 Ingressi Digitali
Eaton EU5E I/O module, SmartWire-DT, 24 V DC, 8DI
Slave SmartWire-DT per il collegamento di segnali di ingresso digitali, regolazione automatica dell'indirizzo, modulo con 8 ingressi digitali da 24 VDC, collegamento con morsetti a morsetto push-in
sistemi di controllo industriali (PLC) > bus di campo, periferica remota – modulo I/O digitale
Smartwire Darwin
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Comprati di solito insieme
▲Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton EU5E Accessory Input module
Catalog Number
116381
EAN
4015081161119
Product Length/Depth
102 mm
Product Height
90 mm
Product Width
35 mm
Product Weight
0.09 kg
Certifications
CSA Class No.: 3211-07
UL
CSA
CSA File No.: 2324643
IEC/EN 61131-2
UL Category Control No.: NKCR
UL File No.: E29184
UL
CSA
CSA File No.: 2324643
IEC/EN 61131-2
UL Category Control No.: NKCR
UL File No.: E29184
Model Code
EU5E-SWD-8DX
Specifiche del prodotto
Type
Digital modules
Features
Fieldbus connection over separate bus coupler possible
Air discharge
8 kV, according to IEC 61131-2, level 3, ESD
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Electric connection type
Flat plug-in connection
Number of inputs (digital)
8
Pollution degree
2
Burst impulse
1 kV, Signal cable, according to IEC/EN 61131-2, Level 3
2 kV, Supply cable, according to IEC/EN 61131-2, Level 3
1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
2 kV, Supply cable, according to IEC/EN 61131-2, Level 3
1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
Climatic proofing
Dry heat to IEC 60068-2-2
Damp heat, constant, to IEC 60068-2-3
Damp heat, constant, to IEC 60068-2-3
Connection to SmartWire-DT
Yes
Air pressure
795 - 1080 hPa (operation)
Category (EN 954-1)
None
Explosion safety category for dust
None
Environmental conditions
Condensation: prevent with appropriate measures
Explosion safety category for gas
None
Output current
0 A
Mounting method
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Wall mounting/direct mounting
Rail mounting possible
Wall mounting/direct mounting
Rail mounting possible
Current consumption
16 mA, SmartWire-DT network
Voltage type
DC
Mounting position
As required
Contact discharge
4 kV, according to IEC/EN 61131-2, Level 2, ESD
Overvoltage category
II
Safety performance level (EN ISO 13849-1)
None
SIL (IEC 61508)
None
Ambient operating temperature - max
55 °C
Ambient operating temperature - min
-25 °C
Ambient storage temperature - max
70 °C
Ambient storage temperature - min
-40 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Height of fall (IEC/EN 60068-2-32) - max
0.3 m
Input current at signal 1
4 mA
Number of HW-interfaces (industrial ethernet)
0
Number of HW-interfaces (other)
0
Number of HW-interfaces (parallel)
0
Number of HW-interfaces (RS-232)
0
Number of HW-interfaces (RS-422)
0
Number of HW-interfaces (RS-485)
0
Number of HW-interfaces (serial TTY)
0
Number of HW-interfaces (USB)
0
Constant acceleration
1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Constant amplitude
3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations
Surge rating
1 kV, Surge I/O cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC
Potential isolation
Inputs for SmartWire-DT: yes
Power loss
1 W
Electromagnetic fields
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
Radiated RFI
10 V (IEC/EN 61131-2:2008, Level 3)
Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Protocol
Other bus systems
Radio interference class
Class A (EN 55011)
Number of outputs (digital)
0
Relative humidity
5 - 95 % (non-condensing, IEC/EN 60068-2-30)
Connection type
Push in terminals, Supply and I/O sensor
Connection plug: external device plug SWD4-8SF2-5, SmartWire-DT
Plug, 8-pole, SmartWire-DT
Connection plug: external device plug SWD4-8SF2-5, SmartWire-DT
Plug, 8-pole, SmartWire-DT
Data transmission type
None
Data transfer rate
250 kBit/s, SmartWire-DT
Setting automatically
Setting automatically
Degree of protection
IP20
Station
SmartWire-DT slave, SmartWire-DT network
Input delay
< 0.2 ms
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts
Functions
For connection of digital I/O signals
System accessory
Yes
Limit value type 1
High: > 15 V DC
Low: < 5 V DC
Low: < 5 V DC
Input current
4 mA (at 24 V DC, Digital inputs)
Terminal capacity
0.25 - 1.5 mm² (24 - 16 AWG), flexible with ferrule, Terminal for I/O sensor
0.2 - 1.5 mm² (AWG 24 - 16), solid, Terminal for I/O sensor
0.2 - 1.5 mm² (AWG 24 - 16), solid, Terminal for I/O sensor
LED indicator
Status indication of SmartWire-DT network: Green LED
Status indication of input: Yellow LED
Status indication of input: Yellow LED
Number of HW-interfaces (wireless)
0
Number of interfaces (PROFINET)
0
Operating temperature - max
55 °C
Operating temperature - min
-25 °C
Permitted voltage at input - max
28.8 V
Permitted voltage at input - min
20.4 V
Permitted voltage at output - max
0 V
Permitted voltage at output - min
0 V
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
1 W
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 60 Hz - max
0 VAC
Supply voltage at AC, 60 Hz - min
0 VAC
Supply voltage at DC - max
28.8 VDC
Supply voltage at DC - min
20.4 VDC
Time delay at signal exchange - max
0 ms
Time delay at signal exchange - min
0 ms
Product category
SmartWire-DT slave
| Caratteristica | Valore |
|---|---|
| tensione di alimentazione AC 50 Hz (EF007532) | 0 V |
| tensione di alimentazione AC 60 Hz (EF007533) | 0 V |
| tensione di alimentazione DC (EF007534) | 20.4 V |
| tipo di tensione di alimentazione (EF002991) | DC |
| numero di ingressi digitali (EF001992) | 8 |
| numero di uscite digitali (EF001993) | 0 |
| ingressi digitali configurabili (EF008516) | false |
| uscite digitali configurabili (EF008520) | false |
| corrente d'entrata per segnale 1 (EF001428) | 4 mA |
| tensione ammessa nell'ingresso (EF007554) | 20.4 V |
| tipo di tensione d'ingresso (EF003033) | DC |
| tipo di uscita digitale (EF003601) | None |
| corrente d'uscita (EF003202) | 0 A |
| tensione ammessa nell'uscita (EF007553) | 0 V |
| tipo di tensione d'uscita (EF008222) | DC |
| protezione da corto circuito, uscite presenti (EF003203) | false |
| numero di interfacce HW Industrial Ethernet (EF003020) | 0 |
| numero di interfacce PROFINET (EF006932) | 0 |
| numero di interfacce HW seriali RS232 (EF003021) | 0 |
| numero di interfacce HW seriali RS422 (EF003022) | 0 |
| numero di interfacce HW seriali RS485 (EF003023) | 0 |
| numero di interfacce HW seriali TTY (EF003024) | 0 |
| numero di interfacce HW parallele (EF003026) | 0 |
| numero di interfacce HW wireless (EF006933) | 0 |
| numero di interfacce HW USB (EF003025) | 0 |
| numero di interfacce HW altre (EF003027) | 0 |
| con interfaccia ottica (EF003028) | false |
| supporta il protocollo per EtherCAT (EF017564) | false |
| supporta il protocollo per TCP/IP (EF003050) | false |
| supporta il protocollo per PROFIBUS (EF003052) | false |
| supporta il protocollo per CAN (EF003053) | false |
| supporta il protocollo per INTERBUS (EF003054) | false |
| supporta il protocollo per ASI (EF003051) | false |
| supporta il protocollo per EIB (EF003055) | false |
| supporta il protocollo pour Modbus (EF003057) | false |
| supporta il protocollo per Data-Highway (EF003058) | false |
| supporta il protocollo per DeviceNet (EF003059) | false |
| supporta il protocollo per SUCONET (EF003060) | false |
| supporta il protocollo per LON (EF003017) | false |
| supporta il protocollo per PROFINET IO (EF007525) | false |
| supporta il protocollo per PROFINET CBA (EF007524) | false |
| supporta il protocollo per SERCOS (EF006657) | false |
| supporta il protocollo per Foundation Fieldbus (EF007522) | false |
| supporta il protocollo per EtherNet/IP (EF007521) | false |
| supporta il protocollo per AS-Interface Safety at Work (EF007519) | false |
| supporta il protocollo per DeviceNet Safety (EF007520) | false |
| supporta il protocollo per INTERBUS-Safety (EF006662) | false |
| supporta il protocollo per PROFIsafe (EF007526) | false |
| supporta il protocollo per SafetyBUS p (EF007527) | false |
| supporta il protocollo per altri sistemi bus (EF003062) | true |
| standard radio Bluetooth (EF007178) | false |
| standard radio WLAN 802.11 (EF007179) | false |
| standard radio GPRS (EF008523) | false |
| standard radio GSM (EF008524) | false |
| standard radio UMTS (EF008525) | false |
| link IO master (EF007298) | false |
| componenti del sistema (EF004118) | true |
| grado di protezione (IP) (EF005474) | IP20 |
| tipo di collegamento elettrico (EF003961) | Flat plug-in connection |
| tempo di ritardo al cambio di segnale (EF002382) | 0 ms |
| collegamento bus di campo tramite accoppiatore separato possibile (EF004002) | true |
| montaggio su guida portante possibile (EF003972) | true |
| montaggio a parete/diretto possibile (EF007020) | true |
| montaggio frontale possibile (EF007016) | false |
| montaggio su rack possibile (EF007018) | false |
| adatto per funzioni di sicurezza (EF001597) | false |
| SIL secondo IEC 61508 (EF009889) | None |
| livello di performance secondo EN ISO 13849-1 (EF007399) | None |
| risorsa corrispondente (Ex ia) (EF004141) | false |
| risorsa corrispondente (Ex ib) (EF004142) | false |
| categoria di protezione antideflagrante per gas (EF003997) | None |
| categoria di protezione antideflagrante per polvere (EF003998) | None |
| certificato per area pericolosa UL classe I (EF017622) | false |
| certificato per area pericolosa UL classe II (EF017625) | false |
| certificato per area pericolosa UL classe III (EF017627) | false |
| certificato per area pericolosa UL divisione 1 (EF017628) | false |
| certificato per area pericolosa UL divisione 2 (EF017629) | false |
| certificato per area pericolosa UL gruppo A (acetilene) (EF017632) | false |
| certificato per area pericolosa UL gruppo B (idrogeno) (EF017633) | false |
| certificato per area pericolosa UL gruppo C (etilene) (EF017635) | false |
| certificato per area pericolosa UL gruppo D (propano) (EF017636) | false |
| certificato per area pericolosa UL gruppo E (polvere metallica) (EF017637) | false |
| certificato per area pericolosa UL gruppo F (polvere carboniosa) (EF017638) | false |
| certificato per area pericolosa UL gruppo G (polvere non conduttiva) (EF017639) | false |
| larghezza (EF000008) | 35 mm |
| altezza (EF000040) | 90 mm |
| profondità (EF000049) | 102 mm |
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF EATON PRODUCT CATALOGUE SMART WIRE EN.pdf | 26 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| EU5E-SWD-8DX Y7-116381 116381 ES_172560.pdf | 984 Kbytes |
|
Recensioni: (0) ▲
Nessun commento per il momento.
Inserisci recensione
nascondi form
| Valutazione: |
|
| Nome: | |
| Email: | |
| Titolo: | |
| Testo: | |
| Mi consiglia questo prodotto da acquistare? | |
|
|
|
| Inserisci recensione | |
Tutti i feedback che riceviamo dagli elementi che offriamo sono reali e verificati. Un piccolo gesto, ma di grande valore. Quindi grazie per quel minuto si spende in noi lasciare il vostro parere e punteggio sui prodotti, perché ci aiuta a continuare a migliorare e di offrire ancora maggiore qualità del servizio.
