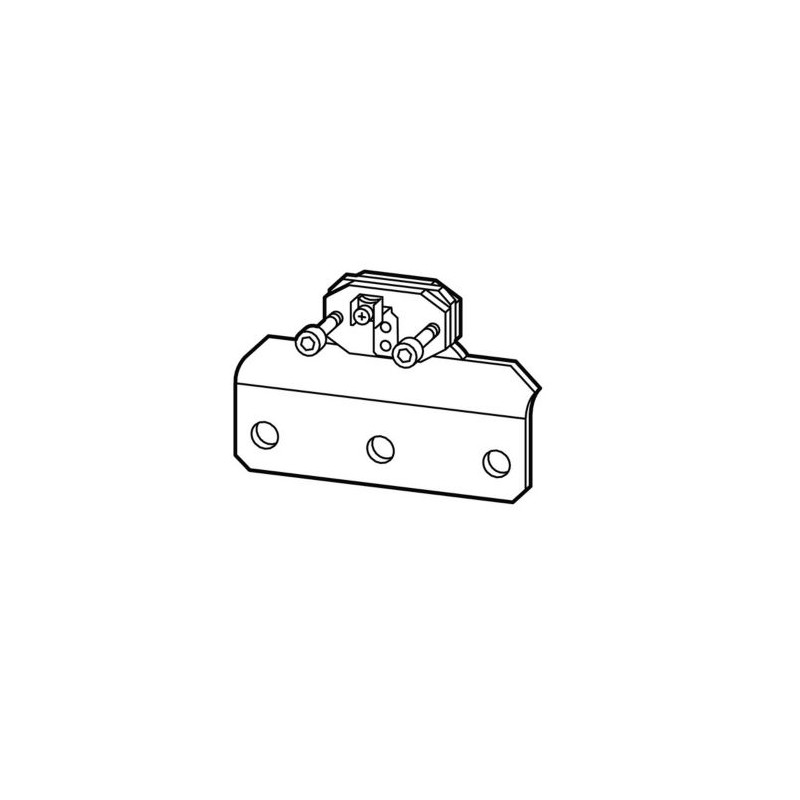

DILM185-XP1 208292 Y7-208292 EATON ELECTRIC Connettore in parallelo, per DILM185, (2 pez.) Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

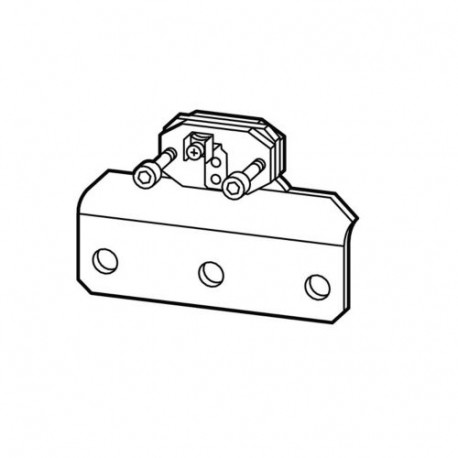

DILM185-XP1 208292 Y7-208292 EATON ELECTRIC Connettore in parallelo, per DILM185, (2 pez.)

DILM185-XP1

208292

Y7-208292

EATON-MOELLER

Connettore in parallelo, per DILM185, (2 pez.)

Gioco congiunto parallelo; Per DILM185

Eaton Moeller® series DILM Paralleling link, for DILM185, (2 off)

Collegamento parallelo, Gamma prodotti: Accessori, Accessori di cablaggio, Per l'uso con: DILM185A

Maggiori dettagli


Apparecchi elettrici a bassa tensione > Accessori per la tecnologia degli interruttori a bassa tensione

Contattori più di 170 A

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $234.96
Prezzo unitario: $234.96
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Related products

▲

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series DILM paralleling link
Catalog Number
208292
EAN
4015082082925
Product Length/Depth
60 mm
Product Height
80 mm
Product Width
120 mm
Product Weight
1.45 kg
Compliances
CE
Catalog Notes
AC1 current carrying capacity of the open contactor increases by a factor of 2.5
Model Code
DILM185-XP1

General

Accessory/spare part type
Connecting bridge
Fitted with:
Cover for busbar tag shroud
Product category
Accessories
Protection
Protected against accidental contact in accordance to VDE 0106 part 100

Climatic environmental conditions

Ambient operating temperature - min
-40 °C
Ambient operating temperature - max
60 °C

Terminal capacities

Terminal capacity
2 x (0.75 - 2.5) mm², flexible with ferrule
2 x (0.75 - 4) mm², solid, Control circuit cables
2 x (20 x 32 x 0.5) mm (Number of segments x width x thickness), Flat conductor
1 x (0.75 - 2.5) mm², flexible with ferrule
2 x (11 x 21 x 1) mm (Number of segments x width x thickness), Flat conductor
1 x (0.75 - 4) mm², solid
1 x (6 x 16 x 0.8) mm (Number of segments x width x thickness), Flat conductor
Screw size
5 mm AF, Hexagon socket-head spanner, Terminal screw
Tightening torque
6 Nm, Screw terminal

Conventional thermal current Ith

Conventional thermal current ith of main contacts (1-pole, open)
700 A

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 208292 Apparecchi elettrici a bassa tensione (EC002498)
Caratteristica Valore
tipo di accessori/pezzi di ricambio (EF000215) ponte di connessione
accessorio (EF013236) Sì
pezzo di ricambio (EF013237) No
