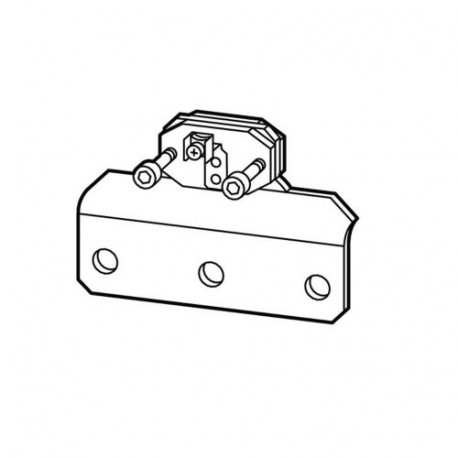

DILM185-XP1 208292 Y7-208292 EATON ELECTRIC Juego de uniones paralelas Para DILM185 Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

DILM185-XP1 208292 Y7-208292 EATON ELECTRIC Juego de uniones paralelas Para DILM185

DILM185-XP1

208292

Y7-208292

EATON-MOELLER

Juego de uniones paralelas, Para DILM185

Eaton Moeller® series DILM Paralleling link, for DILM185, (2 off)

Eslabón en paralelo, Gama de productos: Accesorios, Accesorios de cableado, Para usar con: DILM185A

Más detalles


Componentes industriales de baja tensión > Accesorios para la tecnología de conmutación de baja tensión

Contactores más de 170 A

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $232.19
Precio unitario: $232.19
Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

productos relacionados

▲

Más vendidos

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton Moeller® series DILM paralleling link
Catalog Number
208292
EAN
4015082082925
Product Length/Depth
60 mm
Product Height
80 mm
Product Width
120 mm
Product Weight
1.45 kg
Compliances
CE
Catalog Notes
AC1 current carrying capacity of the open contactor increases by a factor of 2.5
Model Code
DILM185-XP1

General

Accessory/spare part type
Connecting bridge
Fitted with:
Cover for busbar tag shroud
Product category
Accessories
Protection
Protected against accidental contact in accordance to VDE 0106 part 100

Condiciones climáticas ambientales

Ambient operating temperature - min
-40 °C
Ambient operating temperature - max
60 °C

Secciones de conexión

Terminal capacity
2 x (0.75 - 2.5) mm², flexible with ferrule
2 x (0.75 - 4) mm², solid, Control circuit cables
2 x (20 x 32 x 0.5) mm (Number of segments x width x thickness), Flat conductor
1 x (0.75 - 2.5) mm², flexible with ferrule
2 x (11 x 21 x 1) mm (Number of segments x width x thickness), Flat conductor
1 x (0.75 - 4) mm², solid
1 x (6 x 16 x 0.8) mm (Number of segments x width x thickness), Flat conductor
Screw size
5 mm AF, Hexagon socket-head spanner, Terminal screw
Tightening torque
6 Nm, Screw terminal

Intesidad térmica convencional Ith

Conventional thermal current ith of main contacts (1-pole, open)
700 A

Verificación del diseño

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 208292 Interruptores de baja tensión (EC002498)
Característica Valor
Tipo de accesorio/repuesto (EF000215) Puente de conexionado
Accesorio (EF013236) Sí
Recambio (EF013237) No
