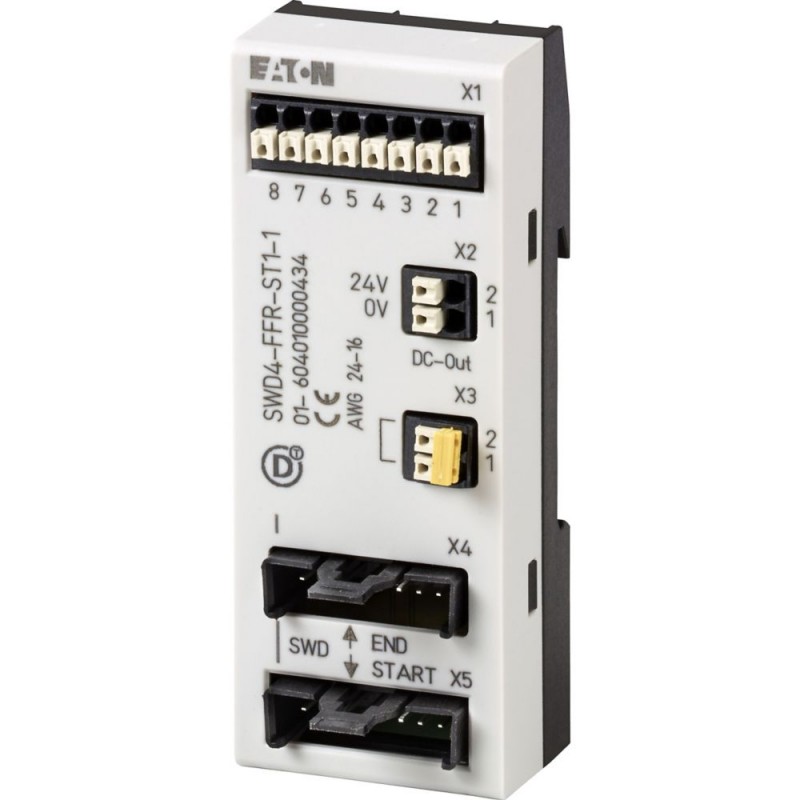

SWD4-FFR-ST1-1 168881 Y7-168881 EATON ELECTRIC Adattatore cavo, SmartWire-DT, per l'installazione di un segm.. Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

SWD4-FFR-ST1-1 168881 Y7-168881 EATON ELECTRIC Adattatore cavo, SmartWire-DT, per l'installazione di un segm..

SWD4-FFR-ST1-1

168881

Y7-168881

EATON-MOELLER

Adattatore cavo, SmartWire-DT, per l'installazione di un segmento SWD locale

Modulo di alimentazione SWDT Per l'alimentazione di sistemi CCM con

Eaton SWD4 SWD cable adapter for putting together a local SWD segment

Adattatore per il montaggio a parete di un segmento SWD locale in combinazione con il modulo di alimentazione SWD4-FFR-PF1-1, collegamento dei segmenti SWD locali tramite cavo a nastro SWD4-... LF8-24

Maggiori dettagli


sistemi di controllo industriali (PLC) > accessori per controlli

Smartwire Darwin

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $110.01
Prezzo unitario: $110.01
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton SWD4 Accessory Adapter
Catalog Number
168881
EAN
4015081653720
Product Length/Depth
34 mm
Product Height
90 mm
Product Width
35 mm
Product Weight
0.046 kg
Certifications
IEC/EN 61131-2
EN 50178
Catalog Notes
not relevant
Model Code
SWD4-FFR-ST1-1

Informazioni generali

Degree of protection
IP20
IP20 (according to IEC/EN 60529, EN 50178, VBG 4)
Mounting method
Screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Product category
SmartWire-DT accessories
Type

Condizioni ambientali, dati meccanici

Constant acceleration
1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Constant amplitude
3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations
Mounting position
As required
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts

Condizioni ambientali e climatiche

Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
70 °C
Climatic proofing
Dry heat to IEC 60068-2-2
Damp heat, constant, to IEC 60068-2-3
Environmental conditions
Condensation: prevent with appropriate measures
Operating temperature - min
-25 °C
Operating temperature - max
55 °C
Relative humidity
0 - 95 % (non-condensing, IEC/EN 60068-2-30)

Compatibilità elettromagnetica

Air discharge
8 kV, according to IEC 61131-2, level 3, ESD
Contact discharge
4 kV, according to IEC/EN 61131-2, Level 2, ESD

Comunicazione

Connection to SmartWire-DT
Yes
Connection type
Connection 1: Plug, 8-pole
Push in terminals

Ingresso/uscita

Number of insertion cycles
200

Verifica di progetto

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
