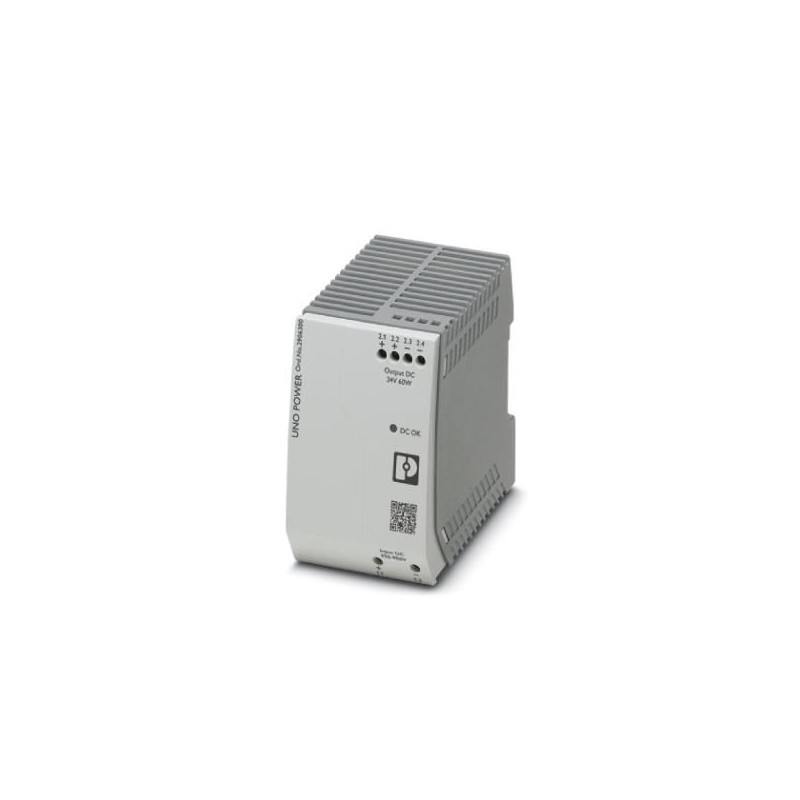

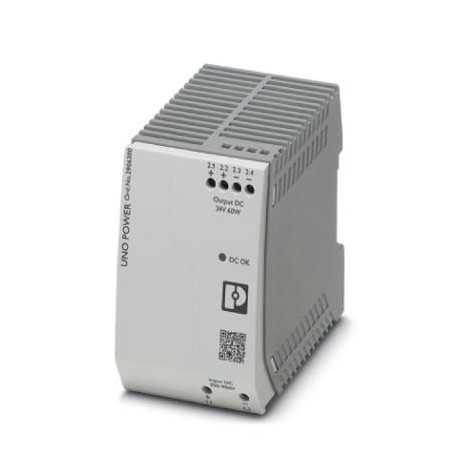

UNO-PS/350-900DC/24DC/60W 2906300 PHOENIX CONTACT DC/DC converters
UNO-PS/350-900DC/24DC/60W
2906300
PHOENIX_CONTACT
DC/DC converters
Primary switched DC/DC UNO transformer with wide input range, for rail mounting, input: 350 ... 900 V DC, output: 24 V DC/60 W
Low-voltage industrial components > DC-power supply
Power Supplies (PS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2906300 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 233 (C-4-2017) |
| GTIN | 4055626062648 |
| Weight per Piece (excluding packing) | 316.900 g |
| Custom tariff number | 85044030 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -25 °C ... 70 °C (> 55° C derating : 2.5%/K) |
| Ambient temperature (start-up type tested) | -40 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
| Climatic class | 3K3 (in acc. with EN 60721) |
| Degree of pollution | 2 |
Input data
| Nominal input voltage range | 350 V DC ... 900 V DC |
|---|---|
| Input voltage range | 300 V DC ... 1000 V DC |
| Dielectric strength maximum | ≤ 1050 V DC |
| Current consumption | 0.19 A (350 V DC) |
| 0.07 A (1000 V DC) | |
| Inrush surge current | < 1 A (typical) |
| Choice of suitable circuit breakers | 1 A (Characteristic gPV or comparable) |
Output data
| Nominal output voltage | 24 V DC ±1 % |
|---|---|
| Nominal output current (IN) | 2.5 A (-25 °C ... 55 °C) |
| Derating | 55 °C ... 70 °C (2.5%/K) |
| Connection in parallel | Yes, for redundancy and increased capacity |
| Connection in series | No |
| Feedback resistance | < 35 V DC |
| Protection against surge voltage on the output | < 35 V DC |
| Control deviation | < 1 % (change in load, static 10 % ... 90 %) |
| < 3 % (Dynamic load change 10 % ... 90 %, 10 Hz) | |
| < 0.1 % (change in input voltage ±10 %) | |
| Residual ripple | < 20 mVPP(with nominal values) |
| Output power | 60 W |
| Typical response time | < 1 s |
| Maximum power dissipation in no-load condition | < 0.5 W |
| Power loss nominal load max. | < 6.5 W |
General
| Net weight | 0.3 kg |
|---|---|
| Efficiency | > 90 % |
| Insulation voltage input/output | 8 kV DC (type test) |
| 3 kV DC (routine test) | |
| Protection class | II |
| Degree of protection | IP20 |
| MTBF (IEC 61709, SN 29500) | > 1160000 h (40 °C) |
| Mounting position | horizontal DIN rail NS 35, EN 60715 |
| Assembly instructions | alignable: 0 mm horizontally, 30 mm vertically |
Connection data, input
| Connection method | Screw connection |
|---|---|
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 14 |
| Stripping length | 8 mm |
| Screw thread | M3 |
Connection data, output
| Connection method | Screw connection |
|---|---|
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 14 |
| Stripping length | 8 mm |
| Screw thread | M3 |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
|---|---|
| Noise immunity | EN 61000-6-2:2005 |
| Standards/regulations | EN 61000-4-2 |
| Contact discharge | 4 kV (Test Level 3) |
| Standards/regulations | EN 61000-4-3 |
| Frequency range | 80 MHz ... 1 GHz |
| Test field strength | 10 V/m |
| Frequency range | 1.4 GHz ... 2 GHz |
| Test field strength | 3 V/m |
| Standards/regulations | EN 61000-4-4 |
| Comments | Criterion B |
| Standards/regulations | EN 61000-6-3 |
| EN 61000-4-6 | |
| Frequency range | 10 kHz ... 80 MHz |
| Voltage | 10 V (Test Level 3) |
| Standards/regulations | EN 61000-4-11 |
| Low Voltage Directive | Conformance with LV directive 2006/95/EC |
| Standard – Safety of power converters for use in photovoltaic power systems | IEC 62109-1 |
| Standard - Electrical safety | IEC 62109-1 |
| Standard – Safety extra-low voltage | IEC 60950-1 (SELV) and EN 60204-1 (PELV) |
| Standard - Safe isolation | DIN VDE 0100-410 |
| Standard – Limitation of mains harmonic currents | EN 61000-3-2 |
| UL approvals | UL 1741 |
| Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
| Vibration (operation) | < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6) |
| 15 Hz ... 150 Hz, 2.3g, 90 min. | |
| Approval - requirement of the semiconductor industry with regard to mains voltage dips | EN 61000-4-11 |
| Information technology equipment - safety (CB scheme) | CB Scheme |
| Overvoltage category (IEC 62109-1) | II |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 25; |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Voltage type (supply voltage) (EF002991) | DC |
| 1st secondary output voltage (EF006792) | 24 V |
| Max. output current 1 (EF008284) | 2.5 A |
| Secondary voltage adjustable (EF007002) | No |
| Nominal value output voltage 1 (EF009393) | 24 V |
| Nominal value output current 1 (EF009396) | 2.5 A |
| Short-circuit-proof (EF007332) | Yes |
| Rated supply voltage DC (EF007078) | 300 V |
| Output voltage stabilized (EF003092) | Yes |
| Power output (EF003034) | 60 W |
| Stabilized (EF005302) | Yes |
| Type of electric connection (EF003961) | Screw connection |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting possible (EF003973) | No |
| Modular version (EF001126) | No |
| Built-in height (EF000332) | 90 mm |
| Direct mounting possible (EF005689) | No |
| Width (EF000008) | 55 mm |
| Height (EF000040) | 90 mm |
| Depth (EF000049) | 84 mm |
| Suitable for safety functions (EF001597) | Yes |
| SIL according to IEC 61508 (EF009889) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Degree of protection (IP) (EF005474) | IP20 |
| Degree of protection (NEMA) (EF011959) | Other |
