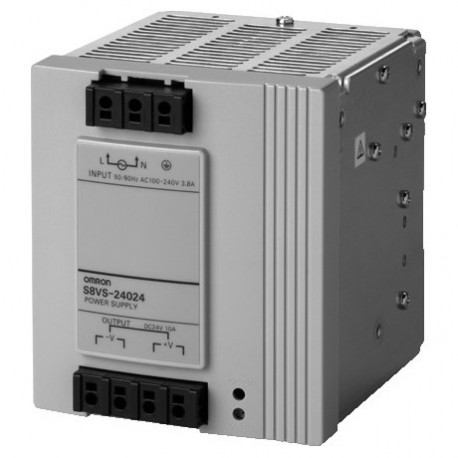

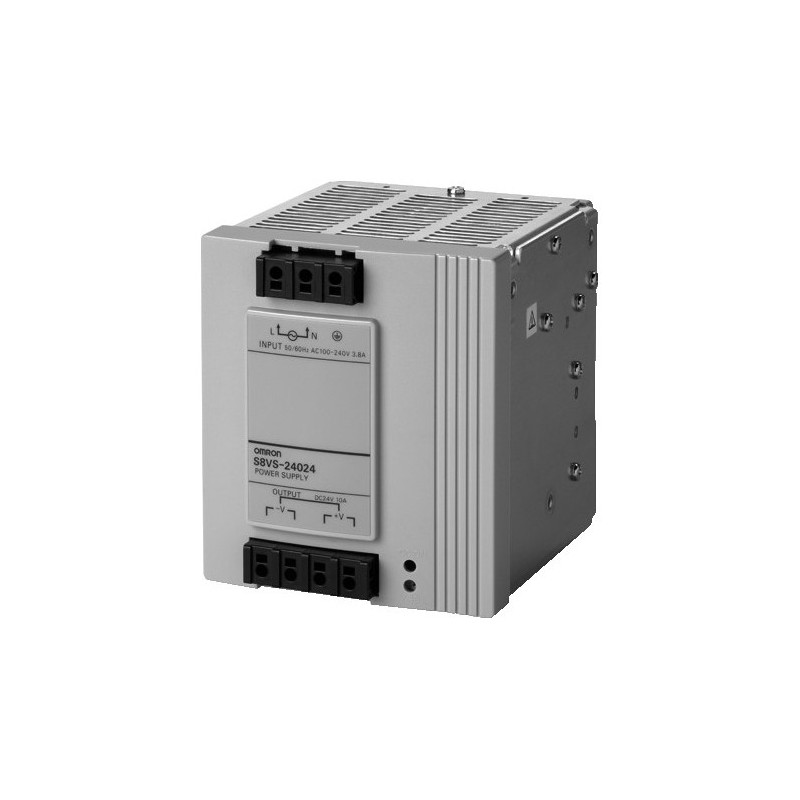

S8VS-24024-F S8VS0077F S8VS24024F OMRON 240W / 24V / 10A DIN Rail Rapid Connection
S8VS-24024-F
S8VS0077F
S8VS24024F
OMRON
240W / 24V / 10A DIN Rail Rapid Connection
240W / 24V / 10A DIN Rail Quick Connect
Power supply, 240 W, 100-240 VAC input, 24 VDC, 10 A output, DIN rail mounting, basic model, cage clamp terminals
Low-voltage industrial components > DC-power supply
Power supplies > S8VS
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲- Operating temperature range (-10 to +60ºC)
- The 3 digit, 7 segment display
- The alarm output(Transistor:PNP, NPN)
- The screwless terminal type is available
- cULus, EN, RoHS compliant
- UL Class 2 output( 60W and 90W)
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | Other |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Type of electric connection (EF003961) | Screw-/spring clamp connection |
| SIL according to IEC 61508 (EF009889) | None |
| Voltage type (supply voltage) (EF002991) | AC |
| Wall mounting possible (EF003973) | Yes |
| Stabilized (EF005302) | Yes |
| Output voltage stabilized (EF003092) | Yes |
| Secondary voltage adjustable (EF007002) | Yes |
| Direct mounting possible (EF005689) | No |
| Suitable for safety functions (EF001597) | Yes |
| Short-circuit-proof (EF007332) | No |
| Modular version (EF001126) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| Power consumption (EF000346) | 300 VA |
| Max. output current 1 (EF008284) | 10 A |
| Built-in height (EF000332) | 125.3 mm |
| Built-in width (EF000846) | 100.000 mm |
| Width in number of modular spacings (EF002950) | 1 |
| Nominal value output voltage 1 (EF009393) | 24 V |
| Width (EF000008) | 100 mm |
| Height (EF000040) | 115 mm |
| Power output (EF003034) | 240 W |
| Nominal value output current 1 (EF009396) | 10 A |
| Depth (EF000049) | 125.2 mm |
| Rated supply voltage AC 50 Hz (EF007076) | 100 V |
| Rated supply voltage AC 60 Hz (EF007077) | 100 V |
| 1st secondary output voltage (EF006792) | 21.6 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| S8VS-24024-F S8VS24024F S8VS0077F EN_S8VS-06024.pdf | 6 Mbytes |
|
