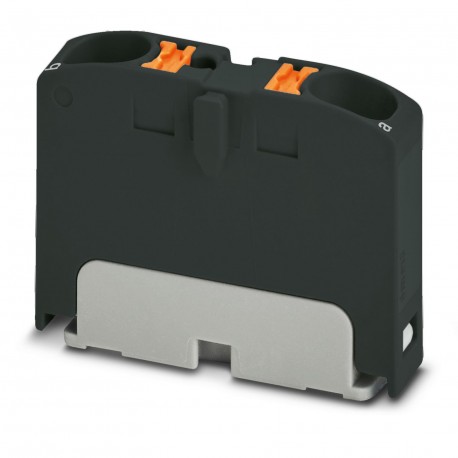

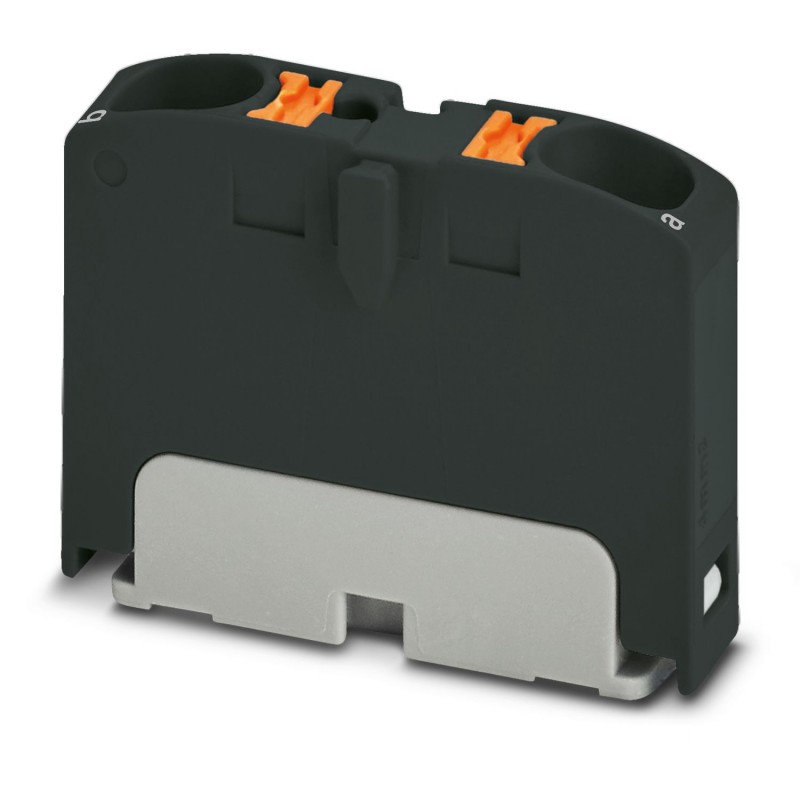

PTFIX 2X4 BK 1028367 PHOENIX CONTACT Block for distribution, Terminal base, rated voltage: 450 V, nominal cu..
PTFIX 2X4 BK
1028367
PHOENIX_CONTACT
50
Block for distribution, Terminal base, rated voltage: 450 V, nominal current: 32 A, type of Connection: Connection push-in connection, number of connections: 2, section: 0,2 mm2-6 mm2, AWG: 24-10 width: 6.2 mm, height: 21,7 mm, color: black, assembly type: interlock adapter for rail
Distribution block, Base terminal, nominal voltage: 800 V, nominal current: 32 A, number of connections: 2, connection type: Push-in connection, Sizing cross-section: 4 mm², cross-section: 0.2 mm² - 6 mm², mounting type: interlock in rail adapter, Direct mounting with a flange, Aerial, color: black
Monobloc, Base clamp, rated voltage: 800 V, rated current: 32 A, number of connections: 2, connection type: Push-in connection, Dimensioning cross-section: 4 mm2, cross-section: 0.2 mm2 - 6 mm2, Push-in connection, mounting type: mounting on adapters for mounting on support rail, Direct flange mounting, Mobile, colour: black
Terminal blocks > Feed-through terminal block
FIX block System
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product Type | Distribution terminal |
| Number of connections | 2 |
| Number of rows | 1 |
| Data maintenance status | |
| Article review | 02 |
| Insulation characteristics | |
| Overvoltage Category | Iii |
| Sizing Impulse Voltage | 8 kV |
| Maximum power dissipation under nominal conditions | 1.02 W |
| Number of connections per plan | 2 |
| Nominal cross-section | 4 mm² |
| AWG Sizing Section | 12 |
| Length of the section to be stripped | 10 mm ... 12 mm |
| Standard-compliant connection | IEC 60947-7-1 |
| Rigid conductor cross-section | 0.2 mm² ... 6 mm² |
| Conductor cross-section AWG | 24 ... 10 (converted according to IEC) |
| Flexible conductor cross-section | 0.2 mm² ... 4 mm² |
| Flexible conductor cross-section [AWG] | 24 ... 12 (converted according to IEC) |
| Flexible conductor cross-section (cable lug without insulation collar) | 0.2 mm² ... 4 mm² |
| Flexible conductor cross-section (plastic lug and collar) | 0.2 mm² ... 4 mm² |
| 2 conductors of identical cross-section flexible with TWIN ferrule with plastic collar | 0.5 mm² ... 1 mm² |
| Rated current | 32 A |
| Maximum load current | 38 A (bei 6 mm² Leiterquerschnitt starr) |
| Maximum cumulative current | The maximum load current of the individual connection points must not be exceeded. |
| Nominal voltage | 800 V |
| note | IEC 60947-7-1 only applies to the use of fastening accessories. |
| Nominal cross-section | 4 mm² |
| Length of the section to be stripped | 10 mm ... 12 mm |
| Gauge Pad | A4 |
| Standard-compliant connection | IEC 60998-2-2 |
| Nominal voltage | 450 V (according to IEC 60998-2-2) |
| Plug-in direct connection cross-sections | |
| Rigid conductor cross-section | 0.5 mm² ... 6 mm² |
| Solid conductor cross-section [AWG] | 20 ... 10 (converted according to IEC) |
| Flexible conductor cross-section (cable lug without insulation collar) | 0.75 mm² ... 4 mm² |
| Flexible conductor cross-section (plastic lug and collar) | 0.5 mm² ... 4 mm² |
| width | 6.2 mm |
| height | 28.6 mm |
| Depth | 21.7 mm |
| Color | black (RAL 9005) |
| Combustibility class according to UL 94 | V0 |
| Insulation Material Group | The |
| Insulation material | PA |
| Cold static insulation material insert | -60 °C |
| Insulation Material Relative Temperature Index (Elec., UL 746 B) | 130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Surface Flammability NFPA 130 (ASTM E 162) | Exceeded |
| NFPA 130 (ASTM E 662) Specific Optical Density of Fumes | Exceeded |
| NFPA 130 Fume Toxicity (SMP 800C) | Exceeded |
| Impulse voltage test | |
| Test voltage rated value | 9.8 kV |
| Result | Test passed |
| Ambient Temperature Test | |
| Heating verification requirement | Temperature rise ≤ 45 K |
| Result | Test passed |
| Short-term current resistance 4 mm² | 0.48 kA |
| Short-term current resistance 6 mm² | 0.72 kA |
| Result | Test passed |
| Dielectric strength at mains frequency | |
| Test voltage rated value | 2 kV |
| Result | Test passed |
| Mechanical data | |
| Open side wall | no |
| Mechanical resistance | |
| Result | Test passed |
| Mounting on the stand | |
| Result | Test passed |
| note | For the placing of several blocks side by side, the feet must be positioned in such a way as to leave room for a maximum of 2 blocks. The flange elements should be positioned after every 6 blocks. |
| However, depending on the application case and mechanical load, other mounting accessory arrangements can also be selected. | |
| A PTFIX-NS35 DIN rail adapter is provided for up to 9 blocks. | |
| Conductor Integrity and Stability Test | |
| Rotational speed | 10 rpm |
| Turns | 135 |
| Conductor cross-section/weight | 0.2 mm2/0.2 kg |
| 4 mm2/0.9 kg | |
| 6 mm2/1.4 kg | |
| Result | Test passed |
| Aging | |
| Temperature Cycling | 192 |
| Result | Test passed |
| Needle flame test | |
| Duration of application | 30 s |
| Result | Test passed |
| Broadband vibration/noise | |
| Test Specification | DIN EN 50155 (VDE 0115-200):2008-03 |
| Spectrum | Category 2 Electrical Life Check, Trolley Mounted |
| Frequency | f1= 5 Hz up to f2= 250 Hz |
| ASD Level | 6.12 (m/s²)²/Hz |
| Acceleration | 3.12g |
| Test duration per axle | 5 h |
| Test Directions | X, Y, and Z axis |
| Result | Test passed |
| Shock | |
| Test Specification | DIN EN 50155 (VDE 0115-200):2008-03 |
| Shock Form | Semi-sinusoidal |
| Acceleration | 30g |
| Shock Duration | 18 ms |
| Number of shocks per direction | 3 |
| Test Directions | X, Y and Z axis (pos. and neg.) |
| Result | Test passed |
| Environmental conditions | |
| Ambient temperature (operating) | -60 °C ... 110 °C (Operating temperature range including self-heating, short-term maximum operating temperature cf. RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for short duration, no longer than 24 h, -60 °C to +70 °C) |
| Ambient temperature (mounting) | -5 °C ... 70 °C |
| Ambient Temperature (Activation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Standard-compliant connection | IEC 60947-7-1 |
| IEC 60998-2-2 |
| Mounting type | Mounting on adapters for mounting on a support rail |
| Direct flange mounting | |
| Mobile |
| Feature Name | Feature Value |
|---|---|
| Rated current In (EF008250) | 32 A |
| Rated voltage (EF000228) | 800 V |
| Type of electrical connection 1 (EF002526) | Other |
| Type of electrical connection 2 (EF002527) | Other |
| Number of clamp positions per level (EF002660) | 2 |
| Material insulation body (EF007543) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Width (EF000008) | 6.2 mm |
| Height (EF000040) | 28.6 mm |
| Depth (EF000049) | 21.7 mm |
| Closing plate required (EF002525) | No |
| Colour (EF000007) | Black |
| Internally connected stages (EF002661) | Yes |
