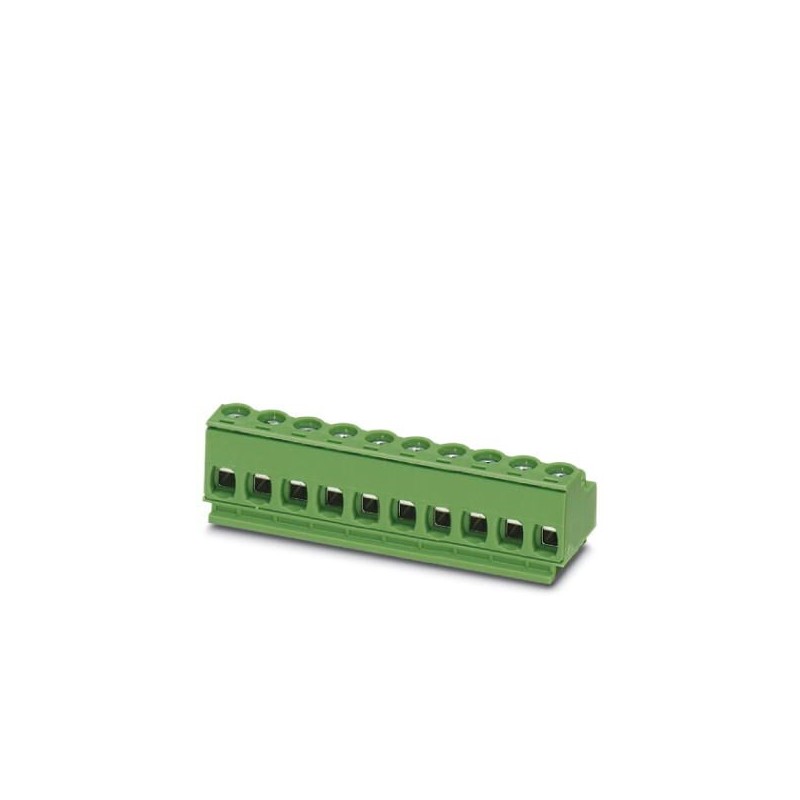

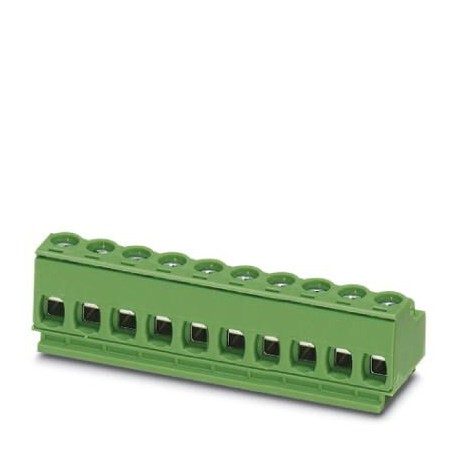

PT 1,5/10-PH-5,0 CLIPBKBD:V001 1711046 PHOENIX CONTACT PCB connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

PT 1,5/10-PH-5,0 CLIPBKBD:V001 1711046 PHOENIX CONTACT PCB connector

PT 1,5/10-PH-5,0 CLIPBKBD:V001

1711046

PHOENIX_CONTACT

100

PCB connector

PCB connector, nominal current: 10 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of positions: 10, pitch: 5 mm, connection method: Screw connection with tension sleeve, color: black, contact surface: Tin

More details


Connectors > Cable connector

PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Key Commercial Data

Orderkey1711046
Packing unit1 pc
Minimum order quantity100 pc
GTIN4055626231808
Weight per Piece (excluding packing)1,080.000 g
Custom tariff number85366990
Country of originCN (China)

Drawings

Diagram

Diagram
Derating curve for: PT 1,5/...PH 5,0 CLIP with PST 1,3/...-5,0

Back to top

Item properties

Brief article descriptionPCB connector
Plug-in systemCOMBICON COMPACT PST 1,3
Type of contactFemale connector
Range of articlesPT 1,5/..-PH CLIP
Pitch5 mm
Number of positions10
Connection methodScrew connection with tension sleeve
Number of levels1
Number of connections10
Number of potentials10
Back to top

Electrical parameters

Nominal current10 A
Nom. voltage400 V
Rated voltage250 V
Rated voltage (III/2)400 V
Rated voltage (II/2)630 V
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Back to top

Connection capacity

Connection methodScrew connection with tension sleeve
pluggableYes
Conductor cross section solid0.2 mm² ... 1.5 mm²
Conductor cross section flexible0.2 mm² ... 1.5 mm²
Conductor cross section AWG / kcmil26 ... 14
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 1 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 1 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve0.5 mm²
Stripping length6 mm
Torque0.35 Nm ... 0.4 Nm
Back to top

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface contact area (top layer)Tin (4 - 8 µm Sn)
Back to top

Material data - housing

Housing colorblack (9005)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Back to top

Dimensions for the product

Dimensional drawing
Pitch5 mm
Back to top

Packaging information

Pieces per package100
Denomination packing unitsPcs.
Back to top

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C ... 100 °C (dependent on the derating curve)
Back to top

Termination and connection method

Test for conductor damage and slackeningIEC 60999-1:1999-11
Test passed
Back to top

Pull-out test

Pull-out testIEC 60999-1:1999-11
Test passed
Conductor cross section / conductor type / tensile force0.2 mm² / solid / > 10 N
0.2 mm² / flexible / > 10 N
1.5 mm² / solid / > 40 N
1.5 mm² / flexible / > 40 N
Back to top

Mechanical tests according to standard

Visual examinationTest passed IEC 60512-1-1:2002-02
Dimensional testTest passed IEC 60512-1-2:2002-02
Resistance of markingTest passed IEC 60068-2-70:1995-12
ResultTest passed
SpecificationIEC 60512-13-2:2006-02
No. of cycles10
Insertion strength per pos. approx.4.5 N
Withdraw strength per pos. approx.5.5 N
Polarization and codingIEC 60512-13-5:2006-02
SpecificationIEC 60512-15-1:2008-05
Back to top

Air clearances and creepage distances

Clearances and creepage distancesIEC 60664-1:2007-04
SpecificationIEC 60664-1:2007-04
Minimum clearance - inhomogeneous field (III/3)3 mm
Minimum clearance - inhomogeneous field (III/2)3 mm
Minimum clearance - inhomogeneous field (II/2)3 mm
Minimum creepage distance value (III/3)3.2 mm
Minimum creepage distance value (III/2)3 mm
Minimum creepage distance value (II/2)3.2 mm
Back to top

Mechanical tests (A)

Insertion strength per pos. approx.4.5 N
Withdraw strength per pos. approx.5.5 N
Back to top

Durability tests (B)

SpecificationIEC 60512-5:1992-08
Contact resistance R12.5 mΩ
Insertion/withdrawal cycles10
Contact resistance R22.6 mΩ
Impulse withstand voltage at sea level4.8 kV
Power-frequency withstand voltage2.21 kV
Insulation resistance, neighboring positions1 GΩ
Back to top

Climatic tests (D)

SpecificationISO 6988:1985-02
Cold stress-40 °C/2 h
Thermal stress100 °C/168 h
Corrosive stress0.2 dm3SO2on 300 dm3/40 °C/1 cycle
Impulse withstand voltage at sea level4.8 kV
Back to top

Environmental and durability tests (E)

Specification
Result, degree of protection, IP codeFinger safety with IP20 test finger
Back to top

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50 years
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 8.027440309
eCl@ss 9.027440309
Back to top

ETIM

ETIM 5.0EC002638
ETIM 6.0EC002638
ETIM 7.0EC002638
Back to top

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf 15 Mbytes
