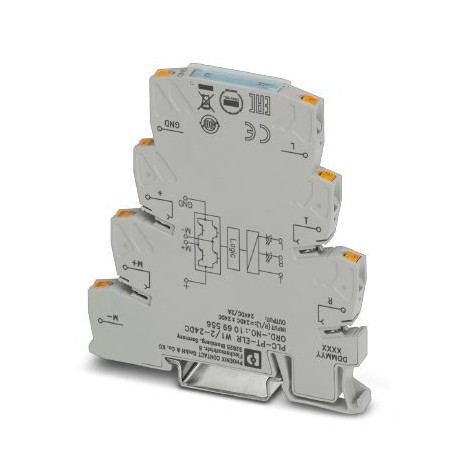

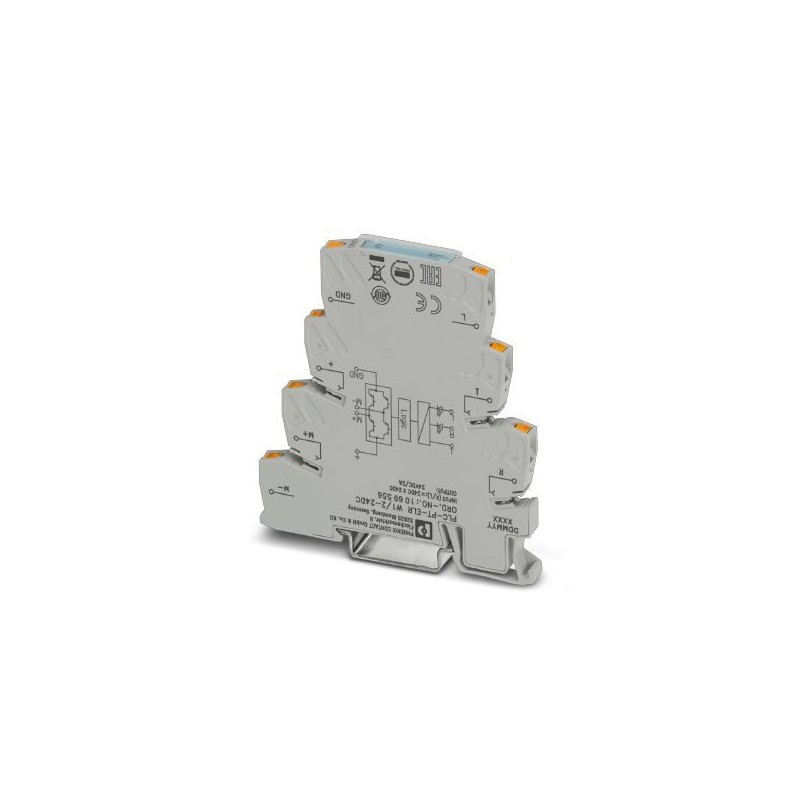

PLC-PT-ELR W1/ 2-24DC 1069556 PHOENIX CONTACT PLC-INTERFACE as an electronic reversing load relay, consistin..
PLC-PT-ELR W1/ 2-24DC
1069556
PHOENIX_CONTACT
PLC-INTERFACE as an electronic reversing load relay, consisting of PLC-BPT.../21 basic terminal block with Push-in connection and integrated circuit, for driving DC motors, with LED display and protective circuit, output: 10 ... 30 V DC/2 A
Low-voltage industrial components > Power contactor, DC switching
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1069556 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 423 (C-5-2019) |
| GTIN | 4055626744865 |
| Weight per Piece (excluding packing) | 40.000 g |
| Custom tariff number | 85371098 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Degree of protection | IP20 |
Input data
| Input name | Device supply |
|---|---|
| Nominal input voltage UN | 24 V DC ±20 % (Control voltage USTright/left) |
| Input voltage range | 19.2 V DC ... 28.8 V DC |
| Typical input current at UN | approx. 3 mA (Control input current ISTright/left) |
| Rated control circuit supply voltage US | 24 V DC |
| Control supply voltage range | 19.2 V DC ... 28.8 V DC |
| Transmission frequency | 300 Hz |
| Protective circuit | Reverse polarity protection Polarity protection diode |
| Surge protection | |
| Surge voltage protection | > 33 V DC |
| Typical response time | 200 µs |
| Status display | Yellow LED |
| Switchover time RL/LL(turn-on time) | 80 ms |
| Input name | Control input right/left |
| Nominal input voltage UN | 24 V DC |
| Input voltage range in reference to UN | 0.8 ... 1.2 |
| Input voltage range | 19.2 V DC ... 28.8 V DC |
Output data load output
| Output name | DC output |
|---|---|
| Note | Protect the supply voltage at the output using a suitable fuse. |
| Nominal output voltage | 24 V DC |
| Operating voltage range | 10 V DC ... 30 V DC |
| Nominal output voltage range | 10 V DC ... 30 V DC |
| Type of protection | Reverse polarity protection |
| Protective circuit/component | Polarity protection diode |
| Note on protection circuit | No continuous protection against polarity reversal |
| Type of protection | Surge protection |
General
| Mounting position | Vertical (horizontal DIN rail) |
|---|---|
| Assembly instructions | In rows with zero spacing |
| Operating mode | 100% operating factor |
Connection data
| Connection name | Control circuits |
|---|---|
| Connection method | Push-in connection |
| Stripping length | 8 mm |
| Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 |
Connection data 2
| Connection name | Load circuit |
|---|---|
| Connection method | Push-in connection |
| Stripping length | 8 mm |
| Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 |
Standards and Regulations
| Designation | Air clearances and creepage distances between the power circuits |
|---|---|
| Standards/regulations | IEC 60664 |
| EN 50178 | |
| Rated insulation voltage | 50 V |
| Rated surge voltage | 0.5 kV |
| Insulation | Basic insulation |
| Pollution degree | 2 |
| Overvoltage category | II |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage DC (EF003980) | 19.2 V |
| Voltage type for actuating (EF008242) | DC |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of normally open contacts as main contact (EF001374) | 1 |
| Type of electrical connection of main circuit (EF006819) | Spring clamp connection |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Modular version (EF001126) | Yes |
