NBC-MSD/100,0-93B/MSD SCO 1418256 PHOENIX CONTACT Network Cable NBC-MSD/100,0-93B/MSD SCO 1418256
NBC-MSD/100,0-93B/MSD SCO
1418256
PHOENIX_CONTACT
5
Network Cable - NBC-MSD/100,0-93B/MSD SCO - 1418256

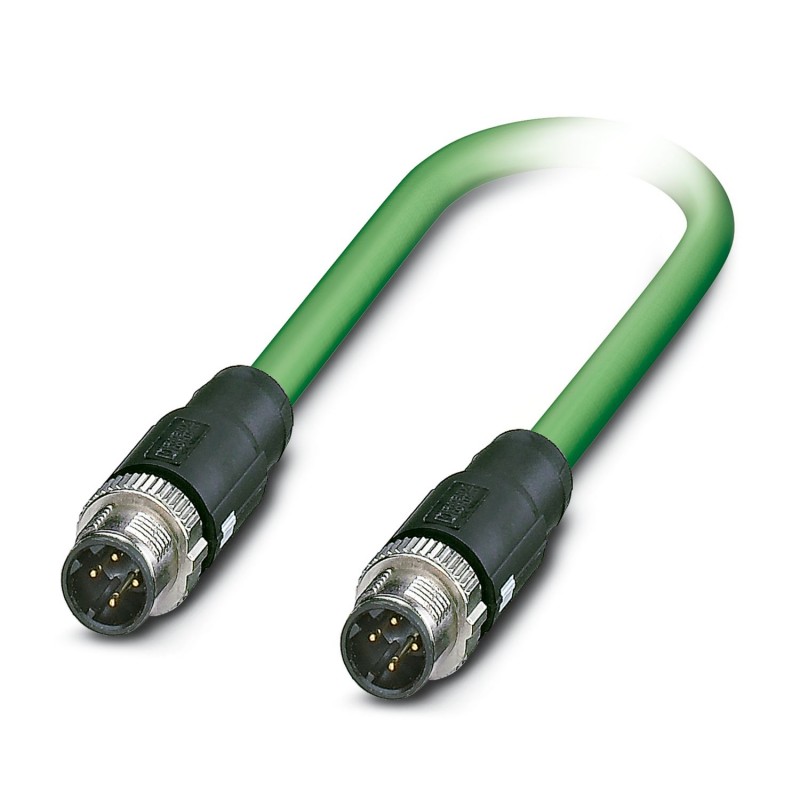

Network cable, PROFINET CAT5 (100 MBit/s), 4-pole, PVC/PVC, green RAL 6018, shielded, M12 SPEEDCON straight connector, encoding: D / IP67, to M12 SPEEDCON straight connector, encoding: D / IP67, cable length: 100 m
Industrial Field Connectivity (IFC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Network Cable, PROFINET CAT5 (100 MBit/s), 4-pole, PVC/PVC, green RAL 6018, shielded, Plug straight M12 SPEEDCON / IP67, coding: D, on Plug straight M12 SPEEDCON / IP67, coding: D, cable length: 100 m
Data commercial
| Key order | One million four hundred eighteen thousand two hundred fifty six |
|---|---|
| Packing unit | 1 pcs |
| Key selling | BF1CJN - |
| EAN | Four trillion fifty five billion six hundred twenty six million one hundred thirty five thousand nine hundred eight |
| Unit weight (excluding packaging) | 6.970,900 g |
| Tariff number tariff | Eighty five million four hundred forty four thousand two hundred ninety |
Measures
| Cable length | 100 m |
|---|
Environmental conditions
| Room temperature (service) | -25 °C ... 90 °C (Connector M12) |
|---|
General data
| Observation | This product complies with the directive PROFINET Cabling and Interconnection Technology Guideline for PROFINET Version 2.00, Order No: some 2,252, chapter 8.2 Connectors for Outside Environment (Balanced cabling) |
|---|---|
| Current sizing at 40 °C | 4 To |
| Tension sizing | 48 V AC |
| 60 V DC | |
| Number of poles | Four |
| Signal type/category | PROFINET CAT5 (IEC 11801), 100 MBit/s |
| Standards/specifications | Plug-in connector M12 to IEC 61076-2-101 |
| Material contact | CuSn |
| Material support of contacts | TPU GF |
| Material contact surface | Ni/Au |
Values nominal head 1
| Construction header | Connector straight M12 SPEEDCON / IP67 |
|---|---|
| Number of poles (face of plug) | Four |
| Encoding | D (Data) |
| Color | black |
| Material (components) | CuSn (Contact) |
| Ni/Au (Surface contacts) | |
| PA (Support contacts) | |
| TPU, low flammability, self-extinguishing (Body grip) | |
| Die-cast zinc, nickel-Connection by screw) | |
| Insulation resistance | ≥ 100 MΩ |
| Cycles of plug | ≥ 100 |
| Tightening torque | 0.4 Nm |
| Room temperature (service) | -25 °C ... 90 °C |
Nominal values 2 head
| Construction header | Connector straight M12 SPEEDCON / IP67 |
|---|---|
| Number of poles (face of plug) | Four |
| Encoding | D (Data) |
| Color | black |
| Material (components) | CuSn (Contact) |
| Ni/Au (Surface contacts) | |
| PA (Support contacts) | |
| TPU, low flammability, self-extinguishing (Body grip) | |
| Die-cast zinc, nickel-Connection by screw) | |
| Insulation resistance | ≥ 100 MΩ |
| Cycles of plug | ≥ 100 |
| Tightening torque | 0.4 Nm |
| Room temperature (service) | -25 °C ... 90 °C |
Standards and specifications
| Name of standard | Plug-in connector M12 |
|---|---|
| Standards/specifications | IEC 61076-2-101 |
Cable
| Type of cable | PROFINET PVC flexible CAT5 |
|---|---|
| Cable type (abbreviation) | 93B |
| UL AWM Style | Twenty one thousand six hundred ninety four |
| Signal type/category | PROFINET CAT5 (IEC 11801), 100 MBit/s |
| EtherCAT®CAT5 (IEC 11801), 100 MBit/s | |
| Construction of cable | 1x4xAWG22/7; SF/TQ |
| Section of driver | 4x 0,34 mm2 |
| Signal cable AWG | Twenty two |
| Construction of the driver signal cable | 7x 0.25 mm |
| Diameter of the conductors, insulation included | 1,55 mm |
| Colors driver | White, yellow, blue, orange |
| Cabling total | Fours star |
| Shielding | Sheet with lined aluminum, mesh of copper wires tinned |
| Cover visual screen | 85 % |
| Outer wrap, color | green RAL 6018 |
| Wall thickness outer wrap | approx. 0.9 mm |
| Outer diameter of cable D | 6.5 mm ±0.2 mm |
| Minimum bending radius, placed in a fixed manner | 3 x D |
| Minimum bending radius, placed in a flexible way | 7 x D |
| Weight of the cable | 67 kg/km |
| Outer casing, material | PVC |
| Material Wrap interior | PVC |
| Material Insulation conductor | PE |
| Conductive Material | Conductor Cu tinned |
| Insulation resistance | ≥ 500 MΩ*km |
| Resistance to polishing | ≤ 120,00 Ω/km |
| Impedance own | 100 Ω ±15 Ω (at 100 MHz) |
| Attenuation paradiafónica (NEXT) | 80 dB (with 1 MHz) |
| 76 dB (at 4 MHz) | |
| 70 dB (at 10 MHz) | |
| 65 dB (16 MHz) | |
| 63 dB (at 20 MHz) | |
| 60 dB (at 31,25 MHz) | |
| 55 dB (62.5 MHz) | |
| 50 dB (at 100 MHz) | |
| Attenuation | 2,1 dB (1 MHz) |
| 4 dB (4 MHz) | |
| Up to 6.3 dB (at 10 MHz) | |
| 8 dB (16 MHz) | |
| 9 dB (at 20 MHz) | |
| 11,4 dB (or 31.25 MHz) | |
| 16,5 dB (62.5 MHz) | |
| At 21.3 dB (at 100 MHz) | |
| Speed signals | 0,66 c |
| Transit time of signals | 5,3 ns/m |
| Transfer impedance | ≤ 20,00 mΩ/m (at 10 MHz) |
| Rated voltage Cable | 600 V |
| Test voltage Conductor/Conductor | 2000 V (50 Hz, 1 min) |
| Test voltage Conductor/Screen | 2000 V (50 Hz, 1 min) |
| Flame resistance | according to UL 1685 (CSA FT 4) |
| Oil resistance | Oil-resistant with restrictions |
| Other resistors | UV-resistant according to UL 1581, section 1200 |
| Room temperature (service) | -40 °C ... 70 °C (cable, fixed) |
| -40 °C ... 70 °C (cable, available mobile) | |
| Room temperature (available) | -20 °C ... 60 °C |
| Ambient temperature (storage / transport) | -50 °C ... 70 °C |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Space of time for the intended use (FEUP): 50 years |
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss
| eCl@ss 5.1 | Twenty seven million two hundred fifty thousand one hundred seven |
|---|---|
| eCl@ss 6.0 | Twenty seven million two hundred seventy nine thousand two hundred |
| eCl@ss 7.0 | Twenty seven million two hundred seventy nine thousand two hundred eighteen |
| eCl@ss 8.0 | Twenty seven million two hundred seventy nine thousand two hundred eighteen |
| eCl@ss 9.0 | Twenty seven million sixty thousand three hundred eleven |
ETIM
| ETIM 5.0 | EC001855 |
|---|---|
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
UNSPSC
| UNSPSC 13.2 | Thirty one million two hundred fifty one thousand five hundred one |
|---|
