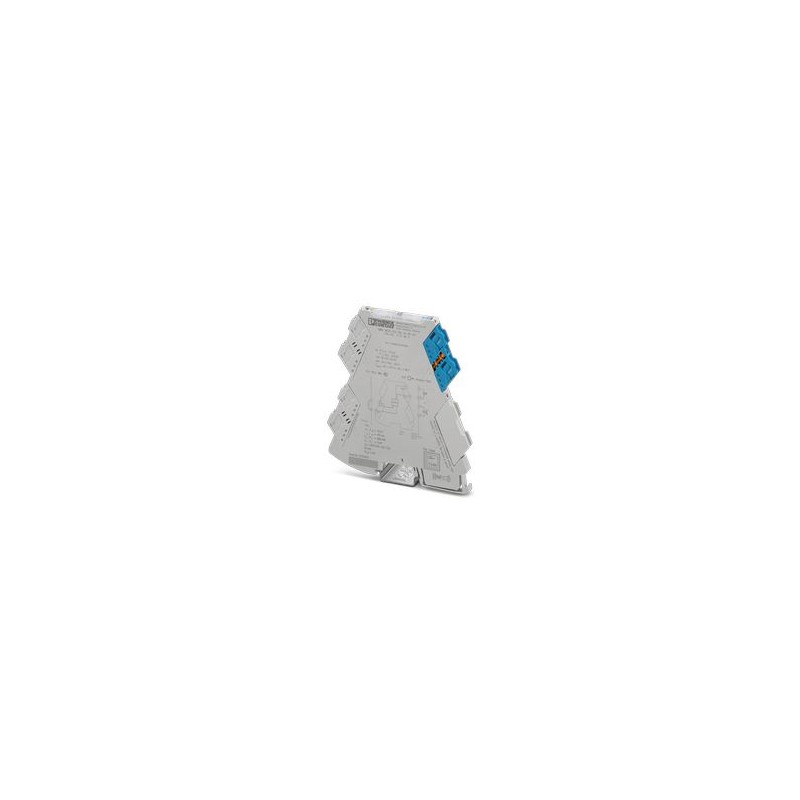

MINI MCR-EX-SD-16-50-LP 1157869 PHOENIX CONTACT Ex i-Valve control block to activate solenoid valves with in.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

MINI MCR-EX-SD-16-50-LP 1157869 PHOENIX CONTACT Ex i-Valve control block to activate solenoid valves with in..

MINI MCR-EX-SD-16-50-LP

1157869

PHOENIX_CONTACT

Ex i-Valve control block to activate solenoid valves with intrinsic safety in the Ex zone. no-load voltage: 16 V DC, current limitation: 50 mA, Standard configuration, Loop-powered, Safety Integrity Level (SIL, IEC 61508): 3, Screw connection

Ex i, Valve control block for operating intrinsically safe solenoid valves in the Ex. zone No-load voltage: 16 V, current limiting: 50 mA, Loop-powered, Safety Integrity Level (SIL, IEC61508): 3, Screw connection

Ex i-Valve control module for the control of Ex i solenoid valves in the Ex zone. no-load voltage: 16 V DC, current limitation: 50 mA, Standard configuration, Loop Powered, Safety Integrity Level (SIL, IEC 61508): 3, Screw connection

More details


Sensors > Isolation amplifier

INTERFACE Components (IF)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Total: $405.51
Unit price: $405.51
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data
Article features
Product TypeValve control module
Product FamilyMINI Analog Pro
Electrical characteristics
Galvanic isolation
Overvoltage CategoryII (≤ 5000 m)
Degree of pollution2 (≤ 5000 m)
Galvanic Isolation Input/Output IEC/EN 61010-1
Standards/ProvisionsIEC/EN 61010-1
Rated insulation voltage300 VEff
Test voltage2.5 kV AC (50 Hz, 60 s)
isolationDual/reinforced insulation
Galvanic Isolation Input/Output IEC/EN 60079-11
Standards/ProvisionsIEC/EN 60079-11
Rated insulation voltage265 VEff
Galvanic Isolation Input/Output IEC/EN 60079-7
Standards/ProvisionsIEC/EN 60079-7
Rated insulation voltage251 VEff
Feeding
Supply voltage rangeSelf-powered in a loop, no external power supply required
Input< 1.4 W
Input Data
Signal: Voltage
Number of inputs1
Input signal, voltage19.2 V DC ... 30 V DC (24 V DC, -20 % ... +25 %)
Output Data
Signal: Voltage
Number of outputs1
Output voltage≥ 10.7 V DC (50 mA)
Output Resistor≥ 103 Ω (internal resistance Rthe)
Current limiting> 50 mA
Response time< 50 ms
No-load voltage> 16 V DC
Resistant to short circuitsYes
Connection data
Conductor cross-section AWG(converted according to IEC)
LinkScrew connection
Stripping length10 mm
ThreadM3
Rigid conductor cross-section0.2 mm² ... 1.5 mm² (with lug)
0.14 mm² ... 2.5 mm² (without lug)
Flexible conductor cross-section0.14 mm² ... 2.5 mm²
Conductor cross-section AWG24 ... 12 (flexible)
Tightening torque0.5 Nm ... 0.6 Nm
EX Data
Ex Installation (EPL)Gc
Div. 2
Ex i Circuits (EPL)Ga
From
But
Div. 1
Technical safety data
Max. internal choke Lthenegligible
Max. C internal capacitythe11 nF
Max. output voltage Uor19.2 V
Max. output current Ior185 mA
Max. output power Por888 mW
Maximum safety voltage Um253 V AC
125 V DC
IIA (Simple Current Circuit): Max. External Inductivity Lor/ Max. external capacity Cor7 mH / 6.1 μF
IIB/IIIC (simple current circuit): Max. external inductivity Lor/ Max. external capacity Cor4 mH / 1.53 μF
IIC (Simple Current Circuit): Max. External Inductivity Lor/ Max. external capacity Cor0.8 mH / 240 nF
I (simple current circuit): Max. external inductivity Lor/ Max. external capacity Cor10 mH / 8.7 μF
dimensions
width6.2 mm
height109.81 mm
Depth119.2 mm
Environmental and electrical life conditions
Environmental conditions
Degree of protectionIp20
Ambient temperature (operating)-40 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Permissible humidity (operation)5 % ... 95 % (non-condensing)
Area of use at high altitudes (IEC/EN 61010-1)
Height range> 2000 m ... 3000 m
Ambient temperature (operating)-40 °C ... 63 °C
Rated insulation voltage300 VEff(Input/Output)
isolationDual/reinforced insulation
Area of use at high altitudes (IEC/EN 61010-1)
Height range> 3000 m ... 4000 m
Ambient temperature (operating)-40 °C ... 56 °C
Rated insulation voltage300 VEff(Input/Output)
isolationDual/reinforced insulation
Area of use at high altitudes (IEC/EN 61010-1)
Height range> 4000 m ... 5000 m
Ambient temperature (operating)-40 °C ... 49 °C
Rated insulation voltage150 VEff(Input/Output)
isolationDual/reinforced insulation
Area of use at high altitudes (IEC/EN 60079-11)
Height range> 2000 m ... 3000 m
Ambient temperature (operating)-40 °C ... 63 °C
Maximum safety voltage Um121 V AC
110 V DC
Rated insulation voltage150 VEff(Input/Output)
Area of use at high altitudes (IEC/EN 60079-11)
Height range> 3000 m ... 4000 m
Ambient temperature (operating)-40 °C ... 56 °C
Maximum safety voltage Um33 V AC/DC
Rated insulation voltage60 VEff(Input/Output)
Area of use at high altitudes (IEC/EN 60079-11)
Height range> 4000 m ... 5000 m
Ambient temperature (operating)-40 °C ... 49 °C
Maximum safety voltage Um33 V AC/DC
Rated insulation voltage60 VEff(Input/Output)
High-altitude range of applications (IEC/EN 60079-7)
Height range> 2000 m ... 3000 m
Ambient temperature (operating)-40 °C ... 63 °C
Rated insulation voltage162 VEff(Input/Output)
High-altitude range of applications (IEC/EN 60079-7)
Height range> 3000 m ... 4000 m
Ambient temperature (operating)-40 °C ... 56 °C
Rated insulation voltage60 VEff(Input/Output)
High-altitude range of applications (IEC/EN 60079-7)
Height range> 4000 m ... 5000 m
Ambient temperature (operating)-40 °C ... 49 °C
Rated insulation voltage60 VEff(Input/Output)
Approvals
Ec
CertificateCE Compliance
ATEX
Marking II (1) G [Ex ia Ga] IIC
 II (1) D [Ex ia Da] IIIC
 II 3 (1) G Ex ec [ia Ga] IIC T4 Gc
 I (M1) [Ex ia Ma] I
CertificateTÜV 21 ATEX 8651 X
IECEx
Marking[Ex ia Ga] IIC
[Ex ia Da] IIIC
Ex ec [ia Ga] IIC T4 Gc
[Ex ia Ma] The
CertificateIECEx TUR 21.0043 X
UKCA Ex (UKEX)
Marking II (1) G [Ex ia Ga] IIC
 II (1) D [Ex ia Da] IIIC
 II 3 (1) G Ex ec [ia Ga] IIC T4 Gc
 I (M1) [Ex ia Ma] I
CertificateTÜV 21 UKEX 7021 X
CCC / China-Ex
Marking[Ex ia Ga] IIC
[Ex ia Da] IIIC
Ex ec [ia Ga] IIC T4 Gc
Certificate2023122310116238
UL, USA / Canada
MarkingUL 61010-2-201
Safety Integrity Level (SIL, IEC 61508)
Marking3
EMC Data
Immunity to disturbancesIEC/EN 61000-6-2
IEC/EN 61326-3-2
Electromagnetic CompatibilityTested according to the following standards and requirements: EN 61326-1 Use in an industrial environment, NAMUR NE 21
Noise emissionIEC/EN 61000-6-4
Regulations and requirements
GB Standard
Standards/ProvisionsGB/T 3836.1
GB/T 3836.3
GB/T 3836.4

ETIM for 1157869 Sensors (EC002653)
Feature Name Feature Value
Number of input ranges -60 mV ... +60 mV (EF006927) 0
Number of input ranges -100 mV ... +100 mV (EF006912) 0
Number of input ranges -300 mV ... +300 mV (EF006920) 0
Number of input ranges -500 mV ... +500 mV (EF006926) 0
Number of input ranges -1 V ... +1 V (EF006906) 0
Number of input ranges -2 V ... +2 V (EF006913) 0
Number of input ranges -2.5 V ... +2.5 V (EF006915) 0
Number of input ranges -5 V ... +5 V (EF006923) 0
Number of input ranges -10 V ... +10 V (EF006909) 0
Number of input ranges -20 V ... +20 V (EF006917) 0
Number of input ranges 0 mV ... 60 mV (EF006905) 0
Number of input ranges 0 mV ... 100 mV (EF006893) 0
Number of input ranges 0 mV ... 200 mV (EF006898) 0
Number of input ranges 0 mV ... 300 mV (EF006901) 0
Number of input ranges 0 mV ... 500 mV (EF006904) 0
Number of input ranges 0 V ... 1 V (EF006890) 0
Number of input ranges 0 V ... 2 V (EF006894) 0
Number of input ranges 0 V ... 2.5 V (EF006895) 0
Number of input ranges 0 V ... 5 V (EF006903) 0
Number of input ranges 0 V ... 10 V (EF006892) 0
Number of input ranges 0 V ... 20 V (EF006897) 0
Number of input ranges 0 V ... 24 V (EF006899) 0
Number of input ranges 0 V ... 30 V (EF006900) 0
Number of input ranges 1 V ... 5 V (EF006907) 0
Number of input ranges 2 V ... 10 V (EF006914) 0
Number of input ranges +5 V ... -5 V (EF006889) 0
Number of input ranges +10 V ... -10 V (EF006888) 0
Number of input ranges 5 V ... 0 V (EF006924) 0
Number of input ranges 5 V ... 1 V (EF006925) 0
Number of input ranges 10 V ... 0 V (EF006910) 0
Number of input ranges 10 V ... 2 V (EF006911) 0
Number of input ranges 0 mA ... 5 mA (EF006902) 0
Number of input ranges 0 mA ... 10 mA (EF006891) 0
Number of input ranges 0 mA ... 20 mA (EF006896) 0
Number of input ranges 4 mA ... 20 mA (EF006921) 0
Number of input ranges -5 mA ... +5 mA (EF006922) 0
Number of input ranges -10 mA ... +10 mA (EF006908) 0
Number of input ranges -20 mA ... +20 mA (EF006916) 0
Number of input ranges 20 mA ... 0 mA (EF006918) 0
Number of input ranges 20 mA ... 4 mA (EF006919) 0
Number of output ranges -60 mV ... +60 mV (EF006880) 0
Number of output ranges -100 mV ... +100 mV (EF006865) 0
Number of output ranges -300 mV ... +300 mV (EF006873) 0
Number of output ranges -500 mV ... +500 mV (EF006879) 0
Number of output ranges -1 V ... +1 V (EF006859) 0
Number of output ranges -2 V ... +2 V (EF006866) 0
Number of output ranges -2.5 V ... +2.5 V (EF006868) 0
Number of output ranges -5 V ... +5 V (EF006876) 0
Number of output ranges -10 V ... +10 V (EF006862) 0
Number of output ranges -20 V ... +20 V (EF006870) 0
Number of output ranges 0 mV ... 60 mV (EF006858) 0
Number of output ranges 0 mV ... 100 mV (EF006846) 0
Number of output ranges 0 mV ... 200 mV (EF006851) 0
Number of output ranges 0 mV ... 300 mV (EF006854) 0
Number of output ranges 0 mV ... 500 mV (EF006857) 0
Number of output ranges 0 V ... 1 V (EF006843) 0
Number of output ranges 0 V ... 2 V (EF006847) 0
Number of output ranges 0 V ... 2.5 V (EF006848) 0
Number of output ranges 0 V ... 5 V (EF006856) 0
Number of output ranges 0 V ... 10 V (EF006845) 0
Number of output ranges 0 V ... 20 V (EF006850) 0
Number of output ranges 0 V ... 24 V (EF006852) 0
Number of output ranges 0 V ... 30 V (EF006853) 0
Number of output ranges 1 V ... 5 V (EF006860) 0
Number of output ranges 2 V ... 10 V (EF006867) 0
Number of output ranges +5 V ... -5 V (EF006842) 0
Number of output ranges +10 V ... -10 V (EF006841) 0
Number of output ranges 5 V ... 0 V (EF006877) 0
Number of output ranges 5 V ... 1 V (EF006878) 0
Number of output ranges 10 V ... 0 V (EF006863) 0
Number of output ranges 10 V ... 2 V (EF006864) 0
Number of output ranges 0 mA ... 5 mA (EF006855) 0
Number of output ranges 0 mA ... 10 mA (EF006844) 0
Number of output ranges 0 mA ... 20 mA (EF006849) 0
Number of output ranges 4 mA ... 20 mA (EF006874) 0
Number of output ranges -5 mA ... +5 mA (EF006875) 0
Number of output ranges -10 mA ... +10 mA (EF006861) 0
Number of output ranges -20 mA ... +20 mA (EF006869) 0
Number of output ranges 20 mA ... 0 mA (EF006871) 0
Number of output ranges 20 mA ... 4 mA (EF006872) 0
Malfunction message output (EF007499) No
Inherently safe according to EN 60947-5-6 NAMUR (EF007112) No
Height (EF000040) 109.81 mm
Width (EF000008) 6.2 mm
Depth (EF000049) 119.2 mm
Power consumption (EF000346) 1.4 W
Operating temperature (EF002393) -40 °C
Type of electric connection (EF003961) Screw connection
Mounting method (EF000003) Snap mounting support rail
Degree of protection (IP) (EF005474) IP20

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf 29 Mbytes

Reviews (0) ▲

No customer reviews for the moment.

Add Review
Add Review
hide form
Rating:
Name:
Email:
Subject:
Text:
Do you recommend this product to buy?
  Captcha
  Add review

Latest Customer Reviews

All ratings we receive from the items we offer are real and verified. A small gesture, but a lot of value. That's why we thank you for that minute you invest in leaving us your opinion and qualification about the products, because it helps us to continue improving and to offer you a service of even higher quality.

Newsletter
Follow us
My account
