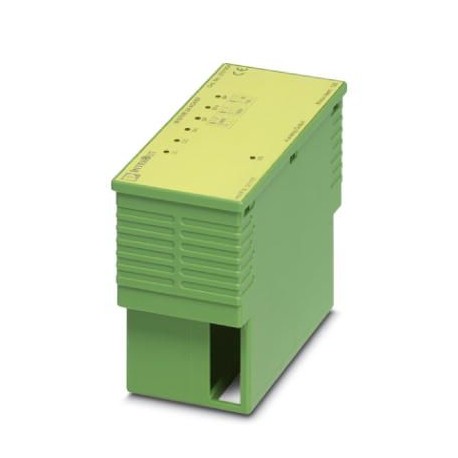

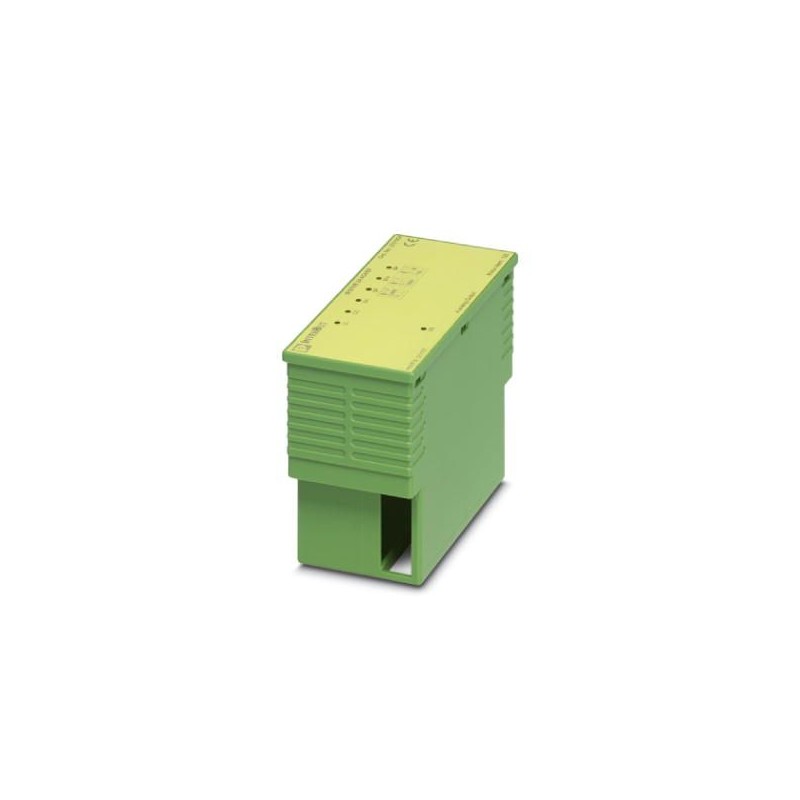

IB STME 24 AO 4/EF 2701954 PHOENIX CONTACT Replacement electronics module
IB STME 24 AO 4/EF
2701954
PHOENIX_CONTACT
Replacement electronics module
INTERBUS-ST analogue output module, 4 outputs, 0-10 V, ±10 V, 0-20 mA, 4-20 mA, consisting of: modular electronics only
I/O
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2701954 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4046356895736 |
| Weight per Piece (excluding packing) | 241.000 g |
| Custom tariff number | 85389091 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Degree of protection | IP20 |
General
| Mounting type | DIN rail |
|---|---|
| Net weight | 241 g |
| Operating mode | Process data mode with 4 words |
| Diagnostics messages | Failure of the internal I/O supply I/O error message sent to the bus coupler |
| F1 fuse failure I/O error message sent to the bus coupler | |
| I/O supply failure I/O error message sent to the bus coupler |
Interfaces
| Designation | ST local bus |
|---|---|
| Connection method | ST local bus connector |
| Transmission speed | 500 kbps |
| Transmission physics | Copper |
Power supply for module electronics
| Connection method | ST local bus connector |
|---|---|
| Designation | Communications power |
| Supply voltage | 9 V DC (from the ST local bus) |
| Current consumption | typ. 54 mA |
| max. 80 mA | |
| Power consumption | typ. 0.5 W |
Analog outputs
| Number of outputs | 4 (Voltage or current) |
|---|---|
| Connection technology | 2, 3-conductor |
| Output name | Analog outputs |
| D/A conversion time | max. 1 ms (incl. slew rate) |
| D/A resolution | 12 bit |
| Type of protection | Transient protection |
| Protective circuit/component | Suppressor diode |
| Representation of output values | 16 bit two's complement |
| Current output signal | 0 mA ... 20 mA (SF and SF4 mode) |
| 4 mA ... 20 mA (Mode SF4) | |
| Load/output load current output | to 500 Ω |
| Voltage output signal | -10 V ... 10 V (Mode BP) |
| 0 V ... 10 V (SF and SF4 mode) | |
| Load/output load voltage output | > 2 kΩ |
Electrical isolation
| Test section | Bus/Outputs 500 V AC 50 Hz 1 min. |
|---|---|
| Supply voltage/Outputs 500 V AC 50 Hz 1 min. | |
| Supply voltage/Ground conductor 500 V AC 50 Hz 1 min. | |
| I/O voltage/Ground conductor 500 V AC 50 Hz 1 min. |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
