EV-T1HPCC-DC500A-5,0M50ECBK11R 1089931 PHOENIX CONTACT CHARX connect, HPC-DC charging cable with refrigerate..
EV-T1HPCC-DC500A-5,0M50ECBK11R
1089931
PHOENIX_CONTACT

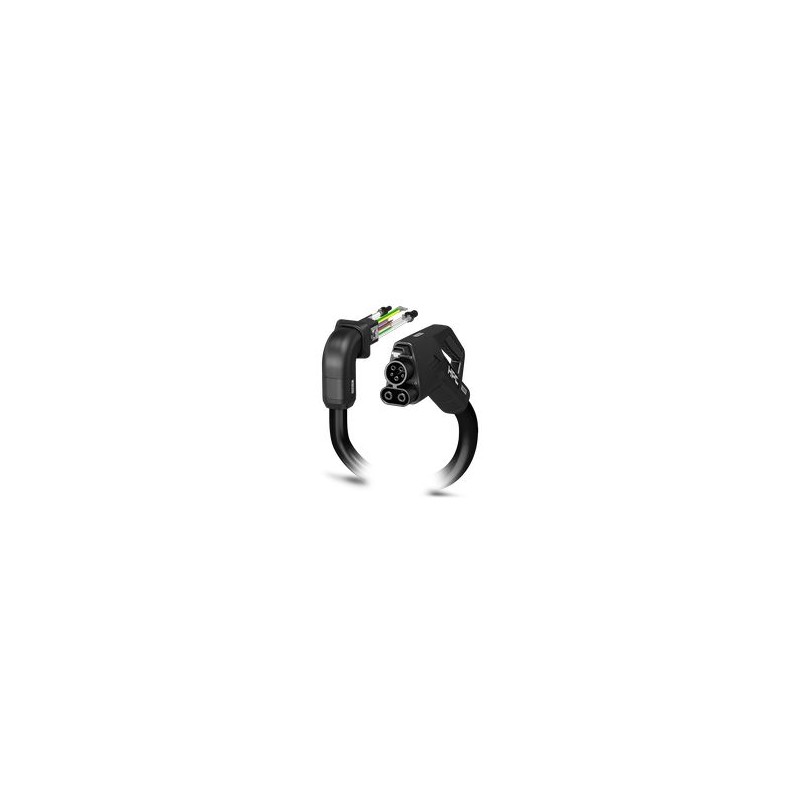

CHARX connect, HPC-DC charging cable with refrigerated vehicle charging connector and refrigerated cable, with support for type 1 CCS charging connector, with replaceable plug-in face frame, with bent grommets on the right side with fan, for direct current (DC) charging of electric vehicles (EV), for installation on charging poles for electromobility (EVSE), Combined Charging System, High Power Charging, HPC CCS Type 1, SAE J1772, IEC 62196-3-1, 500 A / 1000 V (DC), HPC-Line, Logo "PHOENIX CONTACT", cable: 5 m, black, straight
CHARX connect professional, HPC DC charging cable, with cooled vehicle charging connector and cooled cable, for charging electric vehicles (EV) with direct current (DC), with charging connector holder, with replaceable mating face frame, with right-hand angled panel feed-through, with variable-speed fan, with digital temperature sensors, CCS type 1, SAE J1772, IEC 62196-3-1, 500 A / 1000 V (DC), PHOENIX CONTACT logo, cable: 5 m, black, straight
E-Mobility
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product type | DC charging cable |
| Product family | CHARX connect professional |
| Application | for charging electric vehicles (EV) with direct current (DC) |
| for installation at charging stations for electromobility (EVSE) | |
| Type | HPC DC charging cable |
| with cooled vehicle charging connector and cooled cable | |
| Design | with charging connector holder |
| with replaceable mating face frame | |
| with right-hand angled panel feed-through | |
| with variable-speed fan | |
| with digital temperature sensors | |
| Technology | Combined Charging System |
| High Power Charging | |
| Affixed logo | PHOENIX CONTACT logo |
| Label | 8.9 mm x 28.9 mm (customer logo on request) |
| Charging standard | CCS type 1 |
| Charging mode | Mode 4 |
| Cooling system | |
| Cooling | in the vehicle charging connector and in the cable |
| Coolant | 50% water, 50% glycol (Glysofor N) |
| Cooling capacity | 600 W (Cable length: 3 m) |
| 800 W (Cable length: 4 m) | |
| 900 W (Cable length: 5 m) | |
| 1050 W (Cable length: 6 m) | |
| Cooling hose diameter | 1x 11.5 mm Supply hose |
| 2x 8.8 mm Return hoses | |
| Flow rate | 2 l/min |
| Operating pressure | 1.00 bar ... 2.00 bar |
| Relief pressure | 2.00 bar |
| Maximum permissible pressure | 4.00 bar |
| Flow-in temperature | 15 °C |
| Fan | |
| Cooling | The fan provides additional cooling inside the panel feed-through to increase the charging current. |
| The fan can be attached to the panel feed-through as an option. | |
| Cable structure | 2 x AWG 26 |
| Nominal voltage UN | 24 V |
| Nominal voltage range | 18 V AC ... 24 V AC |
| Fan speed indication | 4400 min-1 |
| Mechanical service life | 70.000 h (at 40 °C) |
| Ambient temperature | -20 °C ... 40 °C |
| Type of signal transmission | Pulse width modulation with modulated Powerline communication in accordance with ISO/IEC 15118 / DIN SPEC 70121 |
| Coding | 480 Ω (Lever actuated) |
| 150 Ω (Lever not actuated) | |
| Type of charging current | DC |
| Charging power | 500 kW |
| Charging current | 500 A |
| Type of charging current | DC Boost Mode |
| Charging power | up to 700 kW (Boost Mode, depending on the ambient conditions. For further information on implementation, please contact your local Phoenix Contact office and see the packing slip in the download area for this item.) |
| Charging current | up to 700 A (Boost Mode, depending on the ambient conditions. For further information on implementation, please contact your local Phoenix Contact office and see the packing slip in the download area for this item.) |
| Power contact | |
| Number | 3 (PE, DC+, DC-) |
| Rated voltage | 1000 V DC |
| Rated current | 500 A |
| Signal contact | |
| Number | 2 (CP, PP) |
| Rated voltage | 30 V AC |
| Rated current | 2 A |
| Temperature sensors (NTC) | |
| Sensor type | NTC |
| Attachment point | 2 sensors for the replaceable front DC contacts |
| 2 sensors for the internal DC power wires | |
| Switch-off temperature | 90 °C |
| Temperature sensors (Pt 1000) | |
| Sensor type | Pt 1000 |
| Standards/regulations | DIN EN 60751 |
| Attachment point | Sensor in the panel feed-through |
| Switch-off temperature | 90 °C ±1 K (equivalent to a Pt 1000 value of 1346.5 Ω) |
| Long-term stability | 0.06 % (after 1000 hours at 130 °C) |
| Recommended measured current | 1 mA (1 V at 0°C) |
| Coefficient | 3850 ppm/K |
| Ambient temperature | -50 °C ... 130 °C (Operation) |
| Cross section AWG | (converted acc. to IEC) |
| Vehicle charging connector | |
| Dimensional drawing |  Make sure that the vehicle charging connector is placed in an appropriate charging connector holder, which ensures a minimum protection rating of IP24 in accordance with IEC 61851-1, for the entire time between charging. To create this charging connector holder, use the dimensions of the vehicle charging connector. Detailed dimensions can also be found in the Download area. |
| Width | 69.6 mm |
| Height | 192.6 mm |
| Depth | 284.6 mm |
| Panel feed-through | |
| Dimensional drawing |  |
| Width | 80 mm |
| Height | 82 mm |
| Depth | 215.5 mm |
| Cooling fan | |
| Dimensional drawing |  |
| Width | 81 mm |
| Height | 133 mm |
| Depth | 115 mm |
| Bore dimensions | |
| Dimensional drawing |  Drill hole spacing |
| Width | 55 mm |
| Height | 55 mm |
| Diameter | 60 mm |
| Color (Housing) | black (9005) |
| Color (Handle area) | black (9005) |
| Color (Mating face) | black (9005) |
| Color (Cable) | black (9005) |
| Color (Panel feed-through) | black (9005) |
| Material (Vehicle charging connector) | Plastic |
| Material (Cable outer sheath) | EVM-1 in accordance with EN 50620 |
| Material (Panel feed-through) | Plastic |
| Material (Contact surface) | Silver |
| Flammability rating according to UL 94 | V0 (Mating face) |
| Cable length | 5 m ±45 mm |
| Wiring standards/regulations | Based on UL 62 (File E515623, Vol 1) |
| Based on IEC 62893 | |
| Cable weight | max. 1938 kg/km |
| Cable type | straight |
| Cable structure | 5 x 25 mm² + 7 x 0.75 mm² |
| External cable diameter | 35.7 mm ±0.4 mm |
| Outer sheath, material | TPE-U in accordance with IEC 62893-1 |
| Stripping length of the sheath | 250 mm ±5 mm |
| Cable resistance | ≤ 0.00078 Ω/m (based on a power core, at an ambient temperature of 20°C) |
| Bending radius | min. 357 mm (10x Ø) |
| Mechanical data | |
| Insertion/withdrawal cycles | > 10000 |
| Insertion force | < 75 N |
| Withdrawal force | < 75 N |
| Ambient conditions | |
| Degree of protection (Vehicle charging connector) | IP54 / Type 3R (The degree of protection is only ensured in the ready and plugged-in state when both plug-in components are original products from Phoenix Contact or suitable standard-compliant products.) |
| Degree of protection (Panel feed-through) | IP54 |
| Ambient temperature (operation) | -30 °C ... 40 °C |
| max. 55 °C (Current reduction required, observe the DC contact temperature limit value of 90°C) | |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | 5000 m (above sea level) |
| Standards | |
| Standards/regulations | SAE J1772 |
| IEC 62196-3-1 | |
| Mounting type Panel feed-through | Rear panel mounting |
| Mounting type Fans | Rear panel mounting (optional for increasing the charging current up to 500 A) |
| Max. wall thickness | max. 5 mm |
| Fixing screws | M5x16 |
