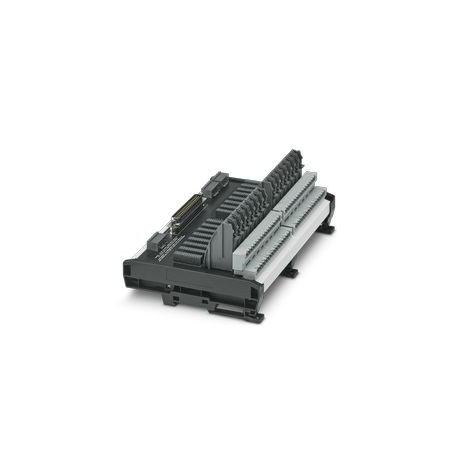

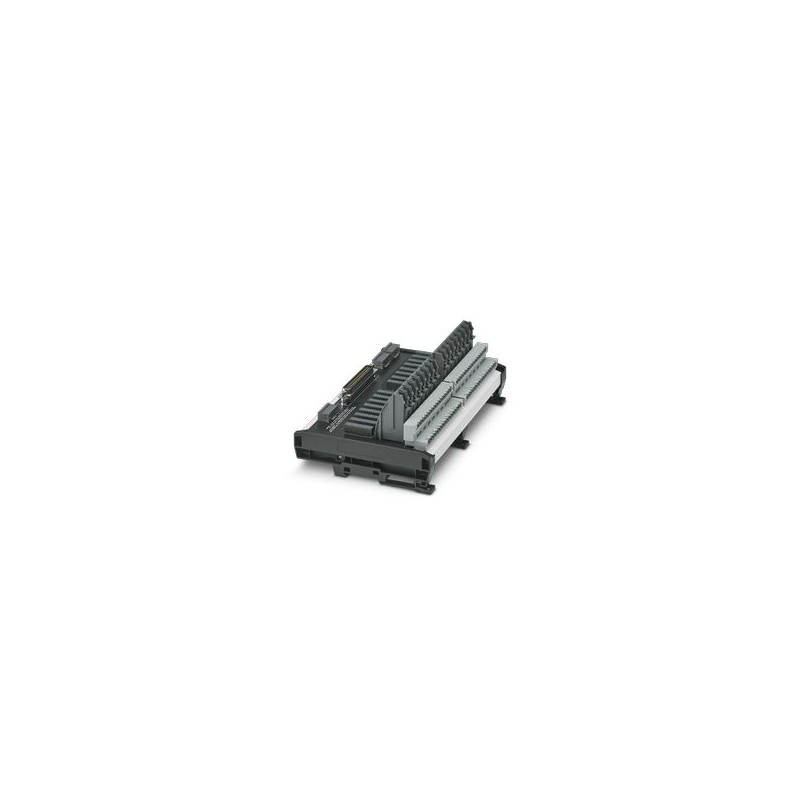

BASE-MSTB/D37M/16CH/EX 1065476 PHOENIX CONTACT 16-channel Marshalling VIP I/O base element with 37-pin D-SUB..
BASE-MSTB/D37M/16CH/EX
1065476
PHOENIX_CONTACT
16-channel Marshalling VIP I/O base element with 37-pin D-SUB connectors for universal use. Plug-in field and supply terminals available as accessories. Optionally with screw or push-in connection technology.
PLC's > Interface module
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Type | Modular Brackets |
| Product Family | VIP I/O-Marshalling |
| Number of channels | 16 |
| Insulation Properties | |
| Surge Category | II, III |
| Degree of pollution | 2 |
| Number of channels | 16 |
| Maximum operating voltage UMax. | 30 V DC (P2 and Field Terminals) |
| 230 V AC (P2 and field terminals) | |
| 30 V DC (P1 terminals) | |
| 30 V DC (D-SUB) | |
| Max. permissible current | 15 A (P1- or P2- terminals) |
| Maximum permissible sum current | 15 A (per module) |
| Max. current capacity per shunt | 3 A (Field Signal) |
| 1 A (Control Contacts) |
| AWG Conductor Section | (Converted according to IEC) |
| Field Level | |
| Standard-compliant connection | IEC/EN |
| Connection type | Plug |
| Number of connections | 4 |
| Number of poles | 16 |
| Level of control | |
| Connection type | D-SUB Male Connector |
| Number of connections | 1 |
| Number of poles | 50 |
| Technical Safety Data | |
| Input voltage Ui | 30 V (per channel) |
| Input Current Ii | 1 A (per channel) |
| Li Inductance | 0 mH |
| Ci Capacity | 0 μF |
| Maximum safety voltage Um | 253 V AC |
| Status Indication | No |
| Available Status Indication | No |
| Item Dimensions | |
| Width | 250 mm |
| Height | 142.3 mm |
| Depth | 78 mm |
| Environmental conditions | |
| Protection Index | IP20 |
| Ambient Temperature (Service) | -40 °C ... 70 °C |
| Ambient Temperature (Storage/Transport) | -40 °C ... 70 °C |
| Altitude | < 2000 m |
| Permissible air humidity (service) | 0 % ... 95% (non-condensing) |
| ATEX | |
| Marked | II 3G Ex ec IIC T4 Gc |
| Certificate | CSANe 22ATEX1005X |
| IECEx | |
| Marked | Ex ec IIC T4 Gc |
| Certificate | IECEx CSA 22.0004X |
| UKEX | |
| Marked | II 3G Ex ec IIC T4 Gc |
| Certificate | CSAE 22UKEX1040X |
| CSA, USA/Canada | |
| Marked | Class I, Div. 2 Groups A, B, C, D T4 Class I, Zone 2, AEx ec IIC T4 Gc Ex ec IIC T4 Gc |
| Certificate | CSA 22CA80084549X |
| Type of mounting | Rail mounting |
| Position for mounting | Optionally on 35 mm rail according to EN 60715 |
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection, control sided (EF008549) | D-Sub |
| Number of poles (EF001391) | 16 |
| Rated current (EF000227) | 15 A |
| Depth (EF000049) | 78 mm |
| Width (EF000008) | 199 mm |
| Height (EF000040) | 142.3 mm |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
