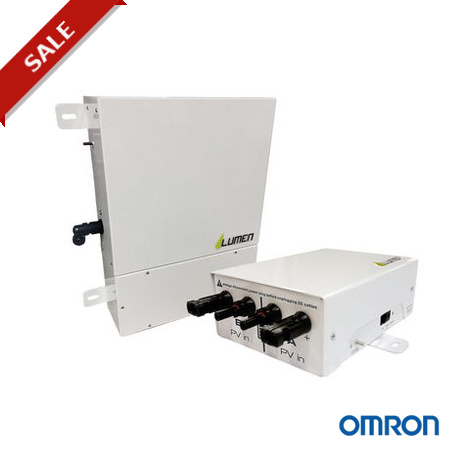

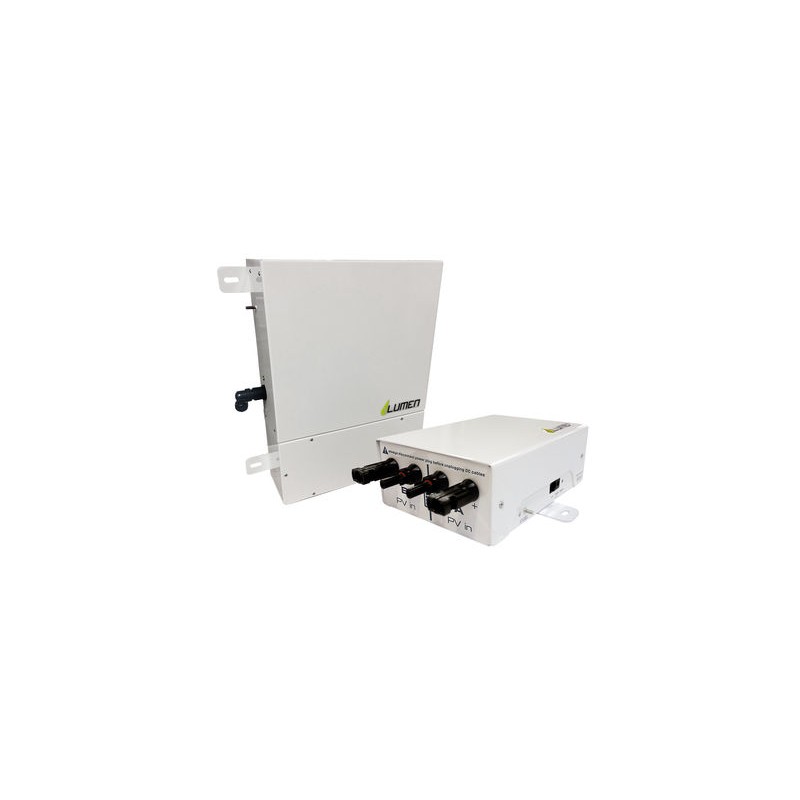

PV-PID-MINI-ID 409315 AA042201F OMRON Regeneration PID for photovoltaic panels for interior

PID regeneration box

Series

2 × 25 A

18 VDC

Indoor

PV-PID-MINI-ID

Outdoor

PV-PID-MINI-OD

Series

75 A/350 A

230 VAC/110 VAC

Outdoor

PV-PID-BOX-_ _A

Parallel

2 × 50 kW

18 VDC

Indoor

PV-PID-LIGHT-ID

Outdoor

PV-PID-LIGHT-OD

PV array/inverter input

Input PV voltage range

80 to 1000 V

Output voltage to ground

Up to 1000 V

Up to 1250 V

Up to 1000 V

Maximum PV current

2 × 25 A

75 A to 350 A depending on the PV-PID-BOX specific model

-

Maximum total PV power

-

-

100 kWp

Number of independent DC inputs

2

1

2

Maximum output current in operation

5 mA

16 mA

5 mA

GRID (AC)

Nominal AC voltage

100 to 240 V

110 to 130 V or 220 to 250 V

100 to 240 V

Nominal AC grid frequency

47 to 63 Hz

50 to 60 Hz

47 to 63 Hz

Power consumption in standby operation

< 0.2 W

8 W

< 0.2 W

Typical power consumption in operation

8 W

20 W
(typically 0.3 kWh/day)

8 W

Maximum power consumption

15 W

25 W

15 W

Inrush power

-

80 W (75 ms)

-

General data

Dimensions (W × D × H)

270 × 200 × 75 mm

520 × 140 × 550 mm

270 × 200 × 75 mm

Weight

1.1 kg

16 kg

1.1 kg

Operating temperature range

-25 to 60 °C

-25 to 60 °C

-25 to 60 °C

Environmental conditions

IP30 - Indoor use

IP65 - indoor/outdoor use
(power supply IP30)

IP65 - indoor/outdoor use

IP30 - Indoor use

IP65 - indoor/outdoor use (power supply IP30)

PV connectors

MC4 compatible

copper busbar 11 mm hole

MC4 compatible

Configuration

• One PV-PID-MINI per 2 MPPTs
• Maximum one MPPT per input (A/B)
• None of the connected solar module poles may become grounded on the PV side, grounding on the inverter side is possible
• 18 VDC power supply included
• This product will function with p-type solar cells If you want to apply this product to another technology, please contact Omron

• None of the connected solar module poles may become grounded on the PV side, grounding on the inverter side is possible
• Maximum one PV-PID-BOX per MPPT of the inverter

• One PV-PID-LIGHT per 2 MPPTs
• Maximum one MPPT per input (A/B)
• None of the connected solar module poles may become grounded even on the inverter side
• 1 screw connection for grounding the frames of the PV modules
• The inverter manufacturer’s approval is needed to place the PV-PID-LIGHT.
  The client is responsible getting the approval
• This product will function with p-type solar cells If you want to apply this product to another technology, please contact Omron

Warranty

Standard 2 years

Certificates

CE Declaration, EMC: EN 61000-6-3:2007, EN 61000-6-2:2005, LVD: EN50178:1997
