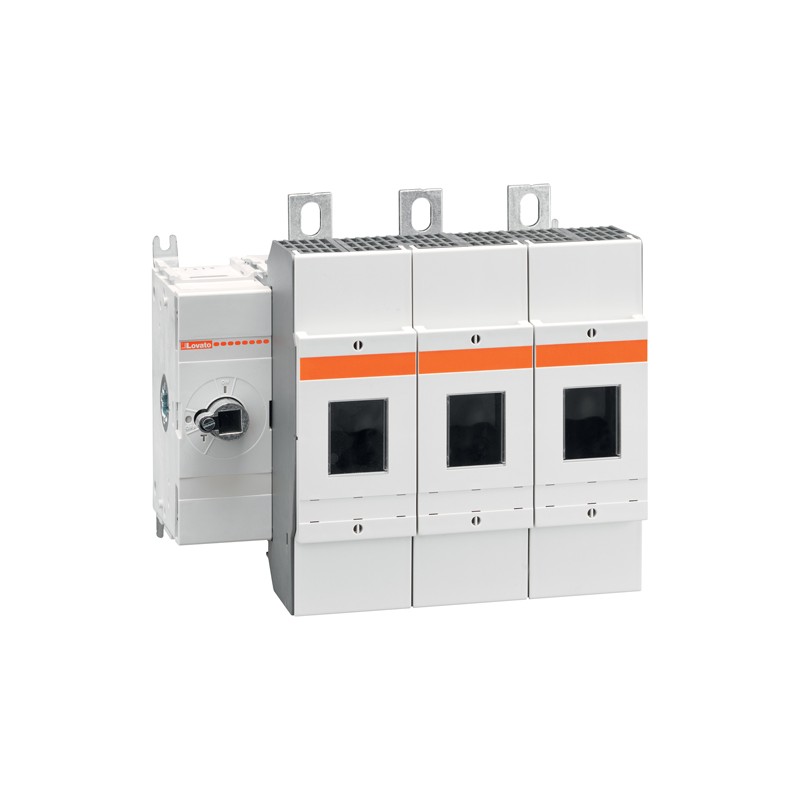

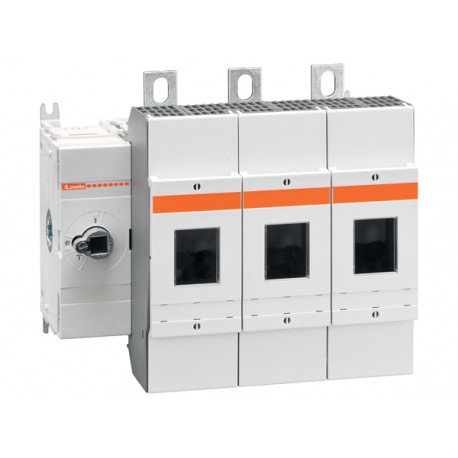

GMFJ200C03 LOVATO 3P SWITCH DISC. W/FUSE HOLDER J 200A C03
GMFJ200C03
LOVATO ELECTRIC
3P SWITCH DISC. W/FUSE HOLDER J 200A C03
THREE-POLE DISCONNECT SWITCH WITH FUSE HOLDER (UL98). 200A. J UL FUSE TYPE. LEFT COMMAND POLE
Switch disconnectors - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲| Order code | GMFJ200C03 |
| Weight [g] | 3050 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 255X215X155 |
| Volume [cm³] | 8497.87 |
| Bar code [EAN13] | 8013975229767 |
| HS Code | 85365080 |
Dimensions
Wiring diagram
Certifications:
cULus according to UL98/CSA C22.2 n°4
cULus according to UL98/CSA C22.2 n°4
Compliance:
IEC/EN 60947-3
IEC/EN 60947-1
IEC/EN 60947-3
IEC/EN 60947-1
| Product designation | Switch disconnector with fuse | |||
| Product type designation | GM | |||
| Type of fuse | J | |||
| Number of poles | Nr. | 3 | ||
| Operating voltage type | AC | |||
| Contact characteristics | ||||
| IEC Conventional free air thermal current Ith | A | 200 | ||
| Rated insulation voltage Ui IEC/EN | V | 1000 | ||
| Rated impulse withstand voltage Uimp | kV | 12 | ||
| Operating current Ie | ||||
| AC21A | ||||
| 400V | A | 200 | ||
| 500V | A | 200 | ||
| 690V | A | 200 | ||
| AC22A | ||||
| 400V | A | 200 | ||
| 500V | A | 200 | ||
| 690V | A | 200 | ||
| AC23A | ||||
| 400V | A | 200 | ||
| 500V | A | 200 | ||
| 690V | A | 200 | ||
| Power dissipation per pole max | W | 8 | ||
| Power dissipation per pole without fuse | W | 8 | ||
| Max fuse power dissipation | ||||
| in open air | W | 15 | ||
| in enclosure | W | 15 | ||
| Rated operational power AC23A | ||||
| 400V | kW | 110 | ||
| 690V | kW | 200 | ||
| Reactive power for control of capacitors at | ||||
| Rated short time current (1s) Icw (rms) | kA | 8 | ||
| Short-circuit protection with fuse | Class/A | J/200 | ||
| Making capacity AC23A 400V | A | 2000 | ||
| Breaking capacity AC23A 400V | A | 1600 | ||
| Mechanical life | cycles | 8000 | ||
| Electrical life AC21A | cycles | 6000 | ||
| Mechanical features | ||||
| Operating position | ||||
| normal | Vertical plan | |||
| allowable | Any | |||
| Fixing | Screw | |||
| Terminals | ||||
| type | Bar | |||
| Tightening torque for terminals | ||||
| max | Nm | 31 | ||
| max | Ibin | 23 | ||
| Tightening torque for fuse links bolts | Nm | 4 | ||
| Tightening torque for terminal lug | Nm | 8 | ||
| Terminal kit lugs | GMX501 | |||
| UL technical data | ||||
| General purpose current rating | A | 200 | ||
| Operating voltage max | V | 600 | ||
| Horsepower/FLA current three phase motor | ||||
| 240V | HP | 60/154 | ||
| 480V | HP | 125/156 | ||
| 600V | HP | 150/144 | ||
| Short circuit rating | kA rms | 200 | ||
| Short circuit rating with fuse | Class/A | J/200 | ||
| Ambient conditions | ||||
| Operating temperature | ||||
| min | °C | -25 | ||
| max | °C | 55 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | 70 | ||
| Max altitude | m | 3000 | ||
| Resistance & Protection | ||||
| Frontal IP degree | IP20 | |||
| Pollution degree | 3 | |||
| ETIM classification | ||||
| ETIM 8.0 | EC000216 - Switch disconnector | |||
