LOVATO ELECTRICSwitch disconnectors - LOVATO ELECTRICGLC0800C1 LOVATO 3P 800A AC31A C1 SWITCH

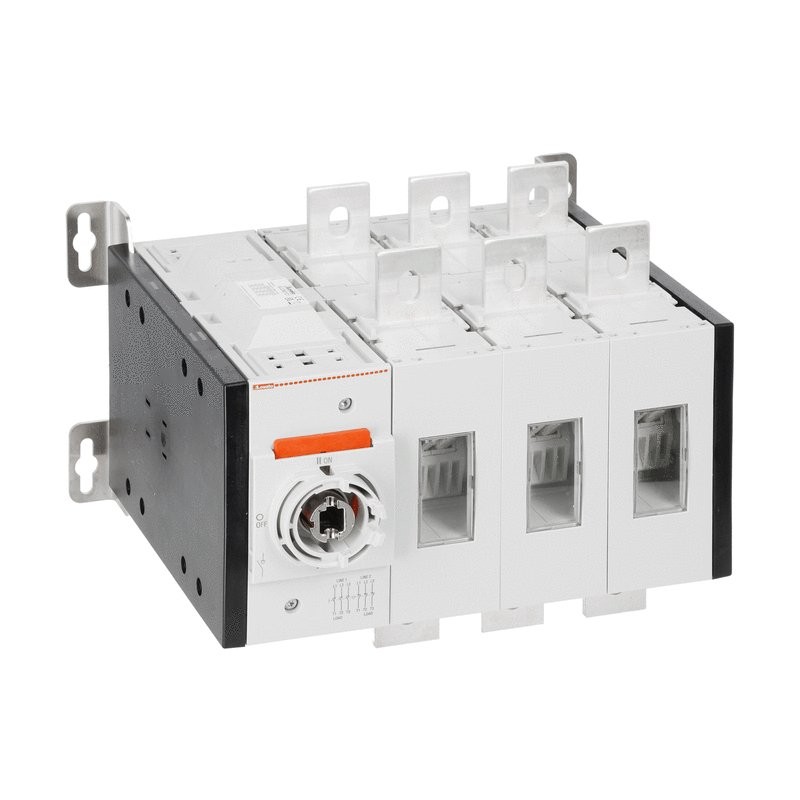

LOVATO ELECTRIC GLC0800C1 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

GLC0800C1 LOVATO 3P 800A AC31A C1 SWITCH

Code: GLC0800C1

Manufacturer: LOVATO ELECTRIC

Description:

3P 800A AC31A C1 SWITCH
Three-pole changeover switch, IEC/EN, 800A

Categories:

  • Low-voltage industrial components > Switch disconnector
  • LOVATO ELECTRIC > Switch disconnectors - LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 1.679,78 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

GLC0800C1

Three-pole changeover switch, IEC/EN, 800A

Technical specifications

Type of product:
Changeover switches
Number of poles:
3
Type of operating voltage:
AC
IEC Conventional free air thermal current Ith [A]:
800
Type of installation:
Screw on plate
Order codeGLC0800C1
Weight [g]19100
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]483X283X382
Volume [cm³]52810
Bar code [EAN13]8013975318942
HS Code85365080

1730.39 £

ETIM for GLC0800C1 Low-voltage industrial controls and switchgear (EC000216)

Feature nameRated operating voltage (EF001435)
Feature value0 V
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value800 A
Feature nameRated permanent current at AC-21, 400 V (EF009165)
Feature value800 A
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value690 V
Feature nameRated short-time withstand current lcw (EF007050)
Feature value20 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value400 kW
Feature nameNumber of switches (EF005586)
Feature value2
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameConditioned rated short-circuit current Iq (EF001444)
Feature value50 kA
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameRated permanent current Iu (EF001389)
Feature value800 A
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameSuitable for intermediate mounting (EF007264)
Feature valueYes
Feature nameSuitable for distribution board installation (EF007262)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueNo
Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameColour control element (EF007167)
Feature valueGrey
Feature nameType of control element (EF006976)
Feature valueRotating button
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueBolt connection

DATASHEET - PDF

Title
Size
Type
GLC0800C1 EN_GLC0800C1.pdf
141 Kbytes
PDF CATALOGUE LOVATO EN
99 Mbytes
