2170496 ETHERLINE Cat.5 ARM LAPP ETHERLINE Cat.5 ARM
2170496
ETHERLINE Cat.5 ARM
LAPP
100 m.
ETHERLINE Cat.5 ARM
Cables > Data and communication cable
Etherline Industrial cabling
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲Industrial Ethernet cable Cat.5 for direct burial with rodent protection, for PROFINET applications Type C, PE outer sheath
- Industrial Ethernet cable
- CAT.5-Performance
- Suitable for outdoor use and direct burial
Benefits
- Can be used for Industrial Ethernet in harsh industrial environments
- EMC-optimised design
- With armouring for improved rodent protection
- Screened against interference
- 2pair: 10/100 Mbit/s for Industrial Ethernet
Application range
- Suitable for outdoor use, UV-resistant
- Suitable for direct burial
- PROFINET application Type C but for fixed installation
- suitable for EtherCAT and EtherNet/IP applications
Product features
- Fast Connect (FC) cable design

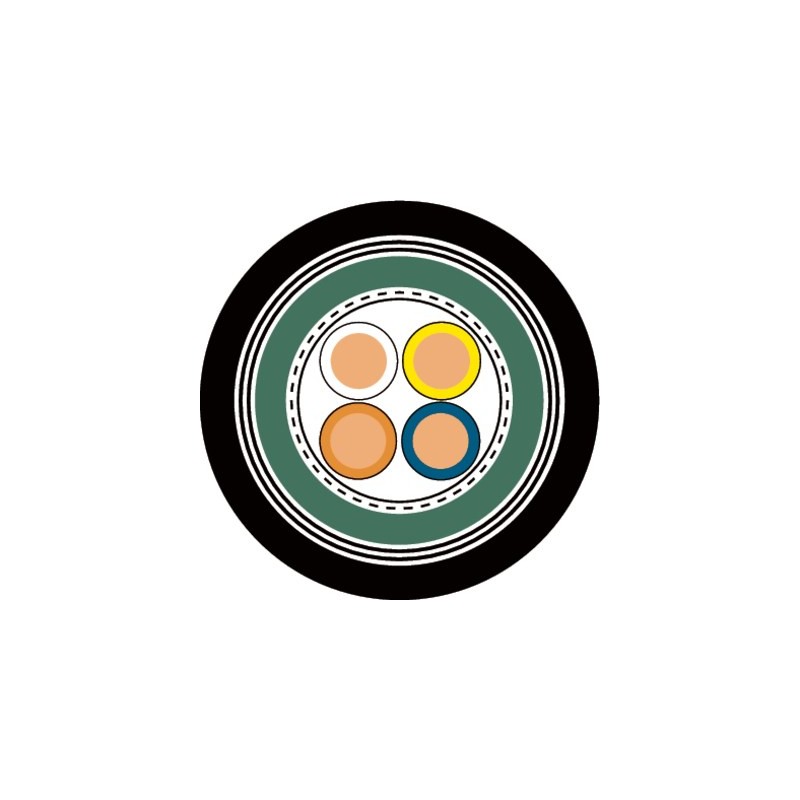

Product Make-up
- Solid and bare copper conductor
- Core insulation: PE
- Colour-coded in accordance with PROFINET for Cat.5 apllications
- Star quad
- SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening
- Inner sheath made of PVC (green RAL6018)
2 layer galvanzid steel tape - Outer sheath made of black polyethylene (PE)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000830
- ETIM 6.0 Class-Description: Data cable
Peak operating voltage
- (not for power applications) 125 V
Minimum bending radius
- During installation: 15 x outer diameter
- Fixed installation: 10 x outer diameter
Test voltage
- Core/core: 2000 V
- Core/screen: 2000 V
Characteristic impedance
- nom. 100 Ω acc. to IEC 61156-5
Temperature range
- During installation: -20°C to +60°C
- Fixed installation: -40°C to +70°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 2170496 ETHERLINE Cat.5 ARM 2170496 EN_2170496.pdf | 299 Kbytes |
|
